Weidmueller
2556010000
CMA-CTM-7-64-1A-0.5VA-1
Request a Quote

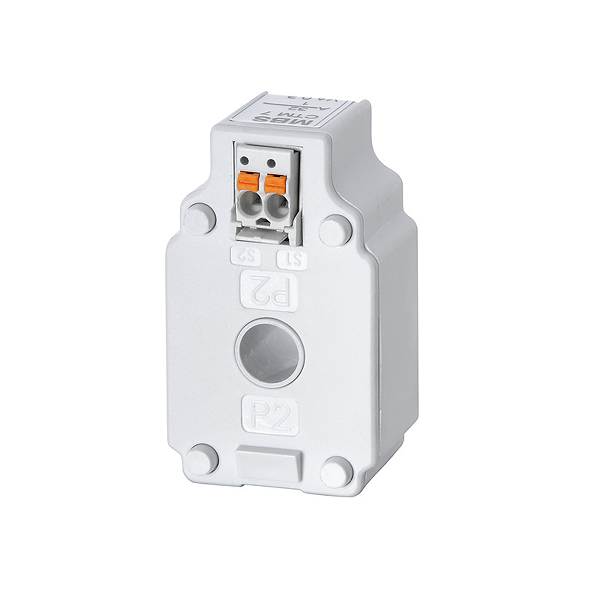

Image copyright: Weidmueller
Weidmueller 2556010000
CMA-CTM-7-64-1A-0.5VA-1
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Available until: | 2020-01-31 |
| Type: | CMA-CTM-7-64-1A-0.5VA-1 |
| Order No.: | 2556010000 |
| Version: | Primary current: 64 A, Secondary current max.: 1 A, Load: 0.5 VA, Tolerance class: 1, closed current transformer |
| GTIN (EAN): | 4050118566079 |
| Qty.: | 1 pc(s). |
| Width: | 27.5 |
| Width (inches): | 1.083 inch |
| Height: | 46.5 mm |
| Height (inches): | 1.831 inch |
| Depth: | 19 mm |
| Depth (inches): | 0.748 inch |
| Net weight: | 65 g |
| Operating temperature, max.: | 50 °C |
| Operating temperature, min.: | -5 °C |
| Storage temperature, max.: | 70 °C |
| Storage temperature, min.: | -25 °C |
| Operating temperature: | -5 °C...50 °C |
| Storage temperature: | -25 °C...70 °C |
| SIL in compliance with IEC 61508: | 1 |
| Installation location: | Indoor use |
| Round conductor: | 7.6 mm |
| Type of conductor: | Insulated conductor only |
| Insulation class: | E |
| Nominal frequency: | 50 Hz |
| Operating voltage Umax, max.: | 0.72 kV |
| Insulation class: | E |
| Nominal frequency: | 50 Hz |
| Operating voltage Umax, max.: | 0.72 kV |
| Load: | 0.5 VA |
| Primary current: | 64 A |
| Secondary current max.: | 1 A |
| Tolerance class: | 1 |
| ETIM 6.0: | EC002048 |
| ETIM 7.0: | EC002048 |
| eClass 9.0: | 27-21-09-02 |
| eClass 9.1: | 27-21-09-02 |
| eClass 10.0: | 27-21-09-02 |
| ROHS: | Conform |
| Available until: | 2020-01-31 |
| Type: | CMA-CTM-7-64-1A-0.5VA-1 |
| Order No.: | 2556010000 |
| Version: | Primary current: 64 A, Secondary current max.: 1 A, Load: 0.5 VA, Tolerance class: 1, closed current transformer |
| GTIN (EAN): | 4050118566079 |
| Qty.: | 1 pc(s). |
| Width: | 27.5 |
| Width (inches): | 1.083 inch |
| Height: | 46.5 mm |
| Height (inches): | 1.831 inch |
| Depth: | 19 mm |
| Depth (inches): | 0.748 inch |
| Net weight: | 65 g |
| Operating temperature, max.: | 50 °C |
| Operating temperature, min.: | -5 °C |
| Storage temperature, max.: | 70 °C |
| Storage temperature, min.: | -25 °C |
| Operating temperature: | -5 °C...50 °C |
| Storage temperature: | -25 °C...70 °C |
| SIL in compliance with IEC 61508: | 1 |
| Installation location: | Indoor use |
| Round conductor: | 7.6 mm |
| Type of conductor: | Insulated conductor only |
| Insulation class: | E |
| Nominal frequency: | 50 Hz |
| Operating voltage Umax, max.: | 0.72 kV |
| Insulation class: | E |
| Nominal frequency: | 50 Hz |
| Operating voltage Umax, max.: | 0.72 kV |
| Load: | 0.5 VA |
| Primary current: | 64 A |
| Secondary current max.: | 1 A |
| Tolerance class: | 1 |
| ETIM 6.0: | EC002048 |
| ETIM 7.0: | EC002048 |
| eClass 9.0: | 27-21-09-02 |
| eClass 9.1: | 27-21-09-02 |
| eClass 10.0: | 27-21-09-02 |
| ROHS: | Conform |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.065 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
