SLDF 5.08/16/180F L/F SN OR BX
Request a Quote
Image copyright: Weidmueller
Weidmueller 2540790000

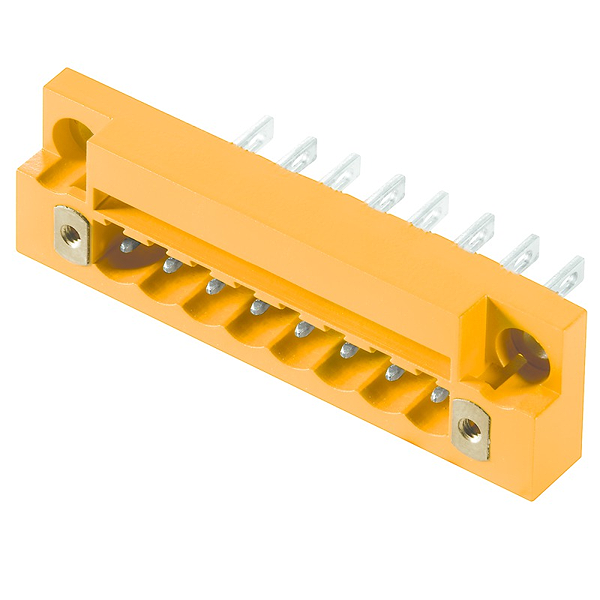

SLDF 5.08/16/180F L/F SN OR BX
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Type: | SLDF 5.08/16/180F L/F SN OR BX |
| Order No.: | 2540790000 |
| Version: | PCB plug-in connector, male header, 5.08 mm, Number of poles: 16, 180°, Flat-blade connection, Solder connection, Box |
| GTIN (EAN): | 4050118553086 |
| Qty.: | 18 pc(s). |
| Packaging: | Box |
| Width: | 100.9 |
| Width (inches): | 3.972 inch |
| Height: | 17.32 mm |
| Height (inches): | 0.682 inch |
| Depth: | 28 mm |
| Depth (inches): | 1.102 inch |
| Net weight: | 15.732 g |
| Product family: | OMNIMATE Signal - series BL/SL 5.08 |
| Type of connection: | Field connection |
| Pitch in mm (P): | 5.08 mm |
| Pitch in inches (P): | 0.2 inch |
| Number of poles: | 16 |
| L1 in mm: | 76.2 mm |
| L1 in inches: | 3 inch |
| Pin series quantity: | 1 |
| Volume resistance: | ≤ 5mΩ |
| Can be coded: | Yes |
| Plugging cycles: | 25 |
| Plugging force/pole, min.: | 4 N |
| Plugging force/pole, max.: | 6.5 N |
| Pulling force / pole, min.: | 3 N |
| Pulling force/pole, max.: | 5 N |
| Insulating material: | PBT |
| Colour: | orange |
| Colour chart (similar): | RAL 2000 |
| Insulating material group: | IIIa |
| Comparative Tracking Index (CTI): | ≥ 200 |
| UL 94 flammability rating: | V-0 |
| GWFI: | 960 °C |
| Contact material: | CuSn |
| Layer structure of plug contact: | 4...8 µm Sn hot-dip tinned |
| Storage temperature, min.: | -25 °C |
| Storage temperature, max.: | 50 °C |
| Max. relative humidity during storage: | 70 % |
| Operating temperature, min.: | -50 °C |
| Operating temperature, max.: | 100 °C |
| Temperature range, installation, min.: | -25 °C |
| Temperature range, installation, max.: | 100 °C |
| Reference text: | The outside diameter of the plastic collar should not be larger than the pitch (P), Length of ferrules is to be chosen depending on the product and the rated voltage. |
| tested acc. to standard: | IEC 60664-1, IEC 61984 |
| Rated current, min. number of poles (Tu=20°C): | 15 A |
| Rated current, min. number of poles (Tu=40°C): | 13 A |
| Rated voltage for surge voltage class / pollution degree II/2: | 400 V |
| Rated voltage for surge voltage class / pollution degree III/2: | 320 V |
| Rated voltage for surge voltage class / pollution degree III/3: | 250 V |
| Rated impulse voltage for surge voltage class/ pollution degree II/2: | 4 kV |
| Rated impulse voltage for surge voltage class/ pollution degree III/2: | 4 kV |
| Rated impulse voltage for surge voltage class/ contamination degree III/3: | 4 kV |
| Rated voltage (Use group B / CSA): | 300 V |
| Rated voltage (Use group D / CSA): | 300 V |
| Rated current (Use group B / CSA): | 10 A |
| Rated current (Use group D / CSA): | 10 A |
| Rated voltage (Use group B / UL 1059): | 300 V |
| Rated voltage (Use group D / UL 1059): | 300 V |
| Rated current (Use group B / UL 1059): | 10 A |
| Rated current (Use group D / UL 1059): | 10 A |
| Packaging: | Box |
| VPE length: | 0 m |
| VPE width: | 0 m |
| VPE height: | 0 m |
| ETIM 6.0: | EC002637 |
| ETIM 7.0: | EC002637 |
| eClass 9.0: | 27-44-04-02 |
| eClass 9.1: | 27-44-04-02 |
| eClass 10.0: | 27-44-04-02 |
| IPC conformity: | Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request. |
| Type: | SLDF 5.08/16/180F L/F SN OR BX |
| Order No.: | 2540790000 |
| Version: | PCB plug-in connector, male header, 5.08 mm, Number of poles: 16, 180°, Flat-blade connection, Solder connection, Box |
| GTIN (EAN): | 4050118553086 |
| Qty.: | 18 pc(s). |
| Packaging: | Box |
| Width: | 100.9 |
| Width (inches): | 3.972 inch |
| Height: | 17.32 mm |
| Height (inches): | 0.682 inch |
| Depth: | 28 mm |
| Depth (inches): | 1.102 inch |
| Net weight: | 15.732 g |
| Product family: | OMNIMATE Signal - series BL/SL 5.08 |
| Type of connection: | Field connection |
| Pitch in mm (P): | 5.08 mm |
| Pitch in inches (P): | 0.2 inch |
| Number of poles: | 16 |
| L1 in mm: | 76.2 mm |
| L1 in inches: | 3 inch |
| Pin series quantity: | 1 |
| Volume resistance: | ≤ 5mΩ |
| Can be coded: | Yes |
| Plugging cycles: | 25 |
| Plugging force/pole, min.: | 4 N |
| Plugging force/pole, max.: | 6.5 N |
| Pulling force / pole, min.: | 3 N |
| Pulling force/pole, max.: | 5 N |
| Insulating material: | PBT |
| Colour: | orange |
| Colour chart (similar): | RAL 2000 |
| Insulating material group: | IIIa |
| Comparative Tracking Index (CTI): | ≥ 200 |
| UL 94 flammability rating: | V-0 |
| GWFI: | 960 °C |
| Contact material: | CuSn |
| Layer structure of plug contact: | 4...8 µm Sn hot-dip tinned |
| Storage temperature, min.: | -25 °C |
| Storage temperature, max.: | 50 °C |
| Max. relative humidity during storage: | 70 % |
| Operating temperature, min.: | -50 °C |
| Operating temperature, max.: | 100 °C |
| Temperature range, installation, min.: | -25 °C |
| Temperature range, installation, max.: | 100 °C |
| Reference text: | The outside diameter of the plastic collar should not be larger than the pitch (P), Length of ferrules is to be chosen depending on the product and the rated voltage. |
| tested acc. to standard: | IEC 60664-1, IEC 61984 |
| Rated current, min. number of poles (Tu=20°C): | 15 A |
| Rated current, min. number of poles (Tu=40°C): | 13 A |
| Rated voltage for surge voltage class / pollution degree II/2: | 400 V |
| Rated voltage for surge voltage class / pollution degree III/2: | 320 V |
| Rated voltage for surge voltage class / pollution degree III/3: | 250 V |
| Rated impulse voltage for surge voltage class/ pollution degree II/2: | 4 kV |
| Rated impulse voltage for surge voltage class/ pollution degree III/2: | 4 kV |
| Rated impulse voltage for surge voltage class/ contamination degree III/3: | 4 kV |
| Rated voltage (Use group B / CSA): | 300 V |
| Rated voltage (Use group D / CSA): | 300 V |
| Rated current (Use group B / CSA): | 10 A |
| Rated current (Use group D / CSA): | 10 A |
| Rated voltage (Use group B / UL 1059): | 300 V |
| Rated voltage (Use group D / UL 1059): | 300 V |
| Rated current (Use group B / UL 1059): | 10 A |
| Rated current (Use group D / UL 1059): | 10 A |
| Packaging: | Box |
| VPE length: | 0 m |
| VPE width: | 0 m |
| VPE height: | 0 m |
| ETIM 6.0: | EC002637 |
| ETIM 7.0: | EC002637 |
| eClass 9.0: | 27-44-04-02 |
| eClass 9.1: | 27-44-04-02 |
| eClass 10.0: | 27-44-04-02 |
| IPC conformity: | Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request. |
