Weidmueller
2512840000
UR67-MP-HP-16DIO-12-60M
Request a Quote

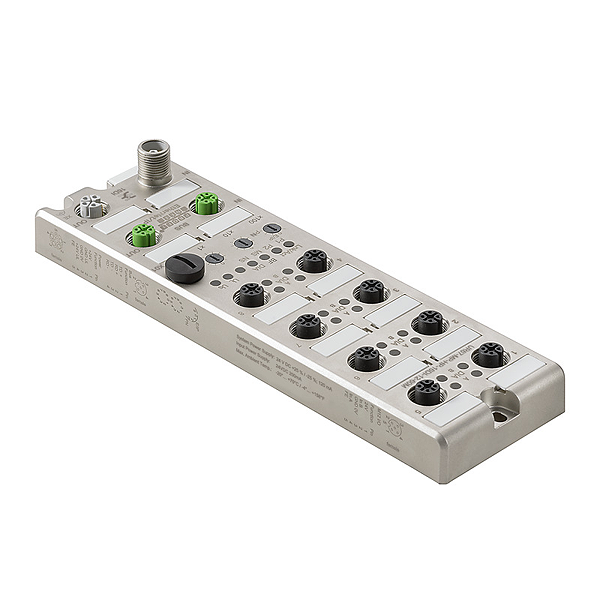

Image copyright: Weidmueller
Weidmueller 2512840000
UR67-MP-HP-16DIO-12-60M
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Type: | UR67-MP-HP-16DIO-12-60M |
| Order No.: | 2512840000 |
| Version: | Automation Products - u-remote IP67, PROFINET V2.3, EtherNet/IP, EtherCAT, Multiprotocol |
| GTIN (EAN): | 4050118527797 |
| Qty.: | 1 pc(s). |
| Length: | 200 mm |
| Length (inches): | 7.874 inch |
| Width: | 59.6 |
| Width (inches): | 2.346 inch |
| Height: | 17.6 mm |
| Height (inches): | 0.693 inch |
| Net weight: | 500 g |
| Operating temperature, max.: | 70 °C |
| Operating temperature, min.: | -20 °C |
| REACH SVHC: | Lead 7439-92-1 |
| Field bus protocol: | PROFINET, EtherCAT, EtherNet/IP |
| Fieldbus (BUS-IN): | 1x M12 female 4-pole, D-coded |
| Fieldbus (BUS-OUT): | 1x M12 female 4-pole, D-coded |
| I/O connections: | 8 x M12 socket 5-pole, A-coded |
| Supply voltage (AUX-IN): | 1x M12 plug 5-pole, L-coded |
| Supply voltage (AUX-OUT): | 1x M12 socket 5-pole, L-coded |
| Input current, high: | Type 1 in acc. with IEC 61131-2 |
| Input current, low: | Type 1 in acc. with IEC 61131-2 |
| Input type: | Type 2 in acc. with IEC 61131-2 |
| Max. total current outputs: | 9 A |
| Output voltage, high: | max. 2 V |
| Output voltage, low: | min. (UL -1) |
| Short-circuit proof: | Yes |
| max. current-carrying capacity per output signal: | 2 A |
| Housing main material: | Zinc diecast |
| Protection degree: | IP67 |
| UL 94 flammability rating: | UL 94 |
| Limits: | 18 V DC ... 30 V DC |
| Operating voltage: | 24 V |
| Power consumption of module electronics: | 100 mA typical |
| Reverse polarity protection: | Yes |
| ETIM 6.0: | EC001597 |
| ETIM 7.0: | EC001597 |
| eClass 9.0: | 27-24-26-02 |
| eClass 9.1: | 27-24-26-02 |
| eClass 10.0: | 27-24-26-02 |
| ROHS: | Conform |
| Type: | UR67-MP-HP-16DIO-12-60M |
| Order No.: | 2512840000 |
| Version: | Automation Products - u-remote IP67, PROFINET V2.3, EtherNet/IP, EtherCAT, Multiprotocol |
| GTIN (EAN): | 4050118527797 |
| Qty.: | 1 pc(s). |
| Length: | 200 mm |
| Length (inches): | 7.874 inch |
| Width: | 59.6 |
| Width (inches): | 2.346 inch |
| Height: | 17.6 mm |
| Height (inches): | 0.693 inch |
| Net weight: | 500 g |
| Operating temperature, max.: | 70 °C |
| Operating temperature, min.: | -20 °C |
| REACH SVHC: | Lead 7439-92-1 |
| Field bus protocol: | PROFINET, EtherCAT, EtherNet/IP |
| Fieldbus (BUS-IN): | 1x M12 female 4-pole, D-coded |
| Fieldbus (BUS-OUT): | 1x M12 female 4-pole, D-coded |
| I/O connections: | 8 x M12 socket 5-pole, A-coded |
| Supply voltage (AUX-IN): | 1x M12 plug 5-pole, L-coded |
| Supply voltage (AUX-OUT): | 1x M12 socket 5-pole, L-coded |
| Input current, high: | Type 1 in acc. with IEC 61131-2 |
| Input current, low: | Type 1 in acc. with IEC 61131-2 |
| Input type: | Type 2 in acc. with IEC 61131-2 |
| Max. total current outputs: | 9 A |
| Output voltage, high: | max. 2 V |
| Output voltage, low: | min. (UL -1) |
| Short-circuit proof: | Yes |
| max. current-carrying capacity per output signal: | 2 A |
| Housing main material: | Zinc diecast |
| Protection degree: | IP67 |
| UL 94 flammability rating: | UL 94 |
| Limits: | 18 V DC ... 30 V DC |
| Operating voltage: | 24 V |
| Power consumption of module electronics: | 100 mA typical |
| Reverse polarity protection: | Yes |
| ETIM 6.0: | EC001597 |
| ETIM 7.0: | EC001597 |
| eClass 9.0: | 27-24-26-02 |
| eClass 9.1: | 27-24-26-02 |
| eClass 10.0: | 27-24-26-02 |
| ROHS: | Conform |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.641 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
