2496040000
HV4000/2-M12 F
Request a Quote
Image copyright: Weidmueller

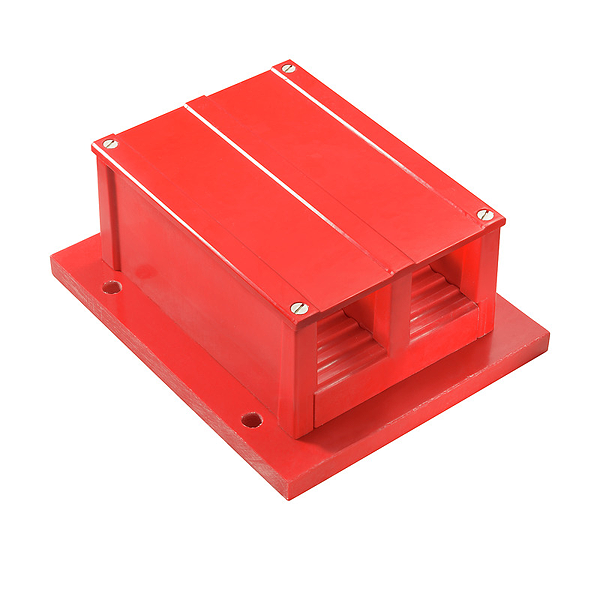

Weidmueller 2496040000
HV4000/2-M12 F
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Type: | HV4000/2-M12 F |
| Order No.: | 2496040000 |
| GTIN (EAN): | 4050118554342 |
| Qty.: | 1 pc(s). |
| Length: | 220 mm |
| Length (inches): | 8.661 inch |
| Width: | 180 mm |
| Width (inches): | 7.087 inch |
| Height: | 96.1 mm |
| Height (inches): | 3.783 inch |
| Mounting dimension - width: | 155 mm |
| Mounting dimension - height: | 130 mm |
| Net weight: | 3,500 g |
| Diameter: | 11 mm |
| Continuous operating temp., min.: | -50 °C |
| Continuous operating temp., max.: | 140 °C |
| Cable lug to DIN 46234: | 10...240 mm² |
| Clamping range, bolted connection , max.: | 240 mm² |
| Clamping range, bolted connection , min.: | 10 mm² |
| Clamping range, max.: | 240 mm² |
| Clamping range, min.: | 10 mm² |
| Clamping screw: | M 12 |
| Connection cross-section, finely stranded, max.: | 240 mm² |
| Connection cross-section, finely stranded, min.: | 10 mm² |
| Connection direction: | top, Bottom |
| Number of connections: | 4 |
| Stud size for spade connection: | M 12 |
| Tightening torque, max.: | 65 Nm |
| Tightening torque, min.: | 63 Nm |
| Type of connection: | Screw connection |
| Rated cross-section: | 240 mm² |
| Rated voltage: | 4,000 V |
| Voltage with epoxy resin partition plate: | 4,000 V |
| Rated current: | 700 A |
| Current at maximum wires: | 700 A |
| Standards: | EN 45545-1:2013, EN 45545-2:2013, EN 45545-5:2013, EN 50124-1:2015, EN 50125-1:2015, EN 50153:2014- 09, EN 50163:2005- 07, EN 60077-1-2:2002, EN 60529:2014- 09, EN 61373:2010, EN 62208:2011, EN 62262:2002 |
| Rated impulse withstand voltage: | 30 kV |
| Impulse voltage with epoxy resin partition plate: | 30 kV |
| Pollution severity: | 3 |
| Cable lug to DIN 46234: | 10...240 mm² |
| Clamping range, bolted connection , max.: | 240 mm² |
| Clamping range, bolted connection , min.: | 10 mm² |
| Impulse voltage with epoxy resin partition plate: | 30 kV |
| Stud size for spade connection: | M 12 |
| Tightening torque, max.: | 65 Nm |
| Tightening torque, min.: | 63 Nm |
| Voltage with epoxy resin partition plate: | 4,000 V |
| ETIM 6.0: | EC000897 |
| ETIM 7.0: | EC000897 |
| eClass 9.0: | 27-14-11-20 |
| eClass 9.1: | 27-14-11-20 |
| eClass 10.0: | 27-14-11-20 |
| Type: | HV4000/2-M12 F |
| Order No.: | 2496040000 |
| GTIN (EAN): | 4050118554342 |
| Qty.: | 1 pc(s). |
| Length: | 220 mm |
| Length (inches): | 8.661 inch |
| Width: | 180 mm |
| Width (inches): | 7.087 inch |
| Height: | 96.1 mm |
| Height (inches): | 3.783 inch |
| Mounting dimension - width: | 155 mm |
| Mounting dimension - height: | 130 mm |
| Net weight: | 3,500 g |
| Diameter: | 11 mm |
| Continuous operating temp., min.: | -50 °C |
| Continuous operating temp., max.: | 140 °C |
| Cable lug to DIN 46234: | 10...240 mm² |
| Clamping range, bolted connection , max.: | 240 mm² |
| Clamping range, bolted connection , min.: | 10 mm² |
| Clamping range, max.: | 240 mm² |
| Clamping range, min.: | 10 mm² |
| Clamping screw: | M 12 |
| Connection cross-section, finely stranded, max.: | 240 mm² |
| Connection cross-section, finely stranded, min.: | 10 mm² |
| Connection direction: | top, Bottom |
| Number of connections: | 4 |
| Stud size for spade connection: | M 12 |
| Tightening torque, max.: | 65 Nm |
| Tightening torque, min.: | 63 Nm |
| Type of connection: | Screw connection |
| Rated cross-section: | 240 mm² |
| Rated voltage: | 4,000 V |
| Voltage with epoxy resin partition plate: | 4,000 V |
| Rated current: | 700 A |
| Current at maximum wires: | 700 A |
| Standards: | EN 45545-1:2013, EN 45545-2:2013, EN 45545-5:2013, EN 50124-1:2015, EN 50125-1:2015, EN 50153:2014- 09, EN 50163:2005- 07, EN 60077-1-2:2002, EN 60529:2014- 09, EN 61373:2010, EN 62208:2011, EN 62262:2002 |
| Rated impulse withstand voltage: | 30 kV |
| Impulse voltage with epoxy resin partition plate: | 30 kV |
| Pollution severity: | 3 |
| Cable lug to DIN 46234: | 10...240 mm² |
| Clamping range, bolted connection , max.: | 240 mm² |
| Clamping range, bolted connection , min.: | 10 mm² |
| Impulse voltage with epoxy resin partition plate: | 30 kV |
| Stud size for spade connection: | M 12 |
| Tightening torque, max.: | 65 Nm |
| Tightening torque, min.: | 63 Nm |
| Voltage with epoxy resin partition plate: | 4,000 V |
| ETIM 6.0: | EC000897 |
| ETIM 7.0: | EC000897 |
| eClass 9.0: | 27-14-11-20 |
| eClass 9.1: | 27-14-11-20 |
| eClass 10.0: | 27-14-11-20 |
