Weidmueller
2467120000
PRO TOP3 960W 24V 40A
Request a Quote

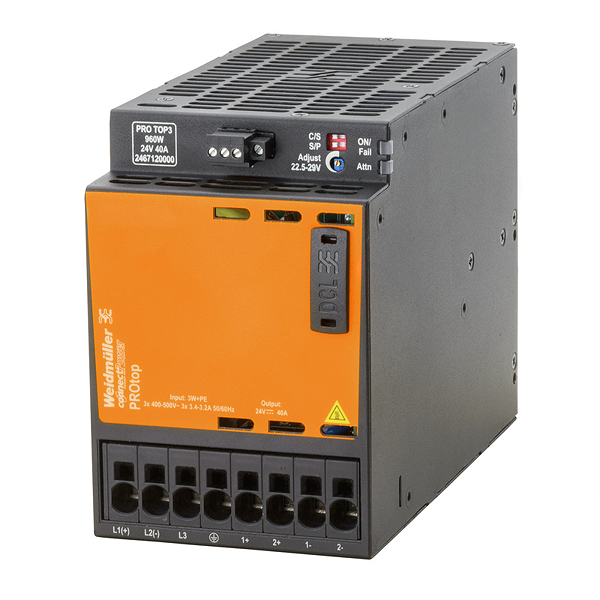

Image copyright: Weidmueller
Weidmueller 2467120000
PRO TOP3 960W 24V 40A
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Type: | PRO TOP3 960W 24V 40A |
| Order No.: | 2467120000 |
| Version: | Power supply, switch-mode power supply unit, 24 V |
| GTIN (EAN): | 4050118482027 |
| Qty.: | 1 pc(s). |
| Width: | 89 mm |
| Width (inches): | 3.504 inch |
| Height: | 130 mm |
| Height (inches): | 5.118 inch |
| Depth: | 175 mm |
| Depth (inches): | 6.89 inch |
| Weight: | 2,490 g |
| Net weight: | 2,490 g |
| Humidity at operating temperature: | 5...95 %, no condensation |
| Operating temperature, max.: | 70 °C |
| Operating temperature, min.: | -25 °C |
| Storage temperature, max.: | 85 °C |
| Storage temperature, min.: | -40 °C |
| Operating temperature: | -25 °C...70 °C |
| Storage temperature: | -40 °C...85 °C |
| REACH SVHC: | Lead 7439-92-1 |
| AC input voltage range: | 3 x 320...3 x 575 V AC / 2 x 360...2 x 575 V AC |
| Connection system: | PUSH IN |
| DC input voltage range: | 450...800 V DC (max. 500 V DC acc. to UL508) |
| Frequency range AC: | 45…65 Hz |
| Input fuse (internal): | No |
| Inrush current: | Max. 10 A |
| Rated input voltage: | 3 x 400...3 x 500 V AC (wide-range input) |
| Recommended back-up fuse: | 6 - 8 A, Char. C |
| Surge protection: | Varistor |
| DCL - peak load reserve: | 150 % (5 s); 400 % (15 ms) |
| Connection system: | PUSH IN |
| Mains failure bridge-over time: | > 20 ms @ 115V AC/ 230 VAC |
| Nominal output current for Unom: | 40 A @ 60 °C |
| Output power: | 960 W |
| Output voltage: | 24 V |
| Output voltage: | 22.5...28.8 V |
| Parallel connection option: | yes, max 10 |
| Protection against inverse voltage: | Yes |
| Ramp-up time: | ≤ 100 ms |
| Rated output voltage: | 24 V DC ± 1 % |
| Reserve capacity @ UNominal: | 130% permanent at ≤ 40°C, 150 % (5 s) |
| Triggerable circuit breakers: | B6, B10, B16, B20, B25, C2, C4, C6, C10, C13, C16 |
| AC failure bridging time @ Inom: | > 20 ms @ 230 V AC / > 20 ms @ 115 V AC |
| Conformal coating: | No |
| Degree of efficiency: | 95,3 % |
| Derating: | > 60°C (2.5% / 1°C) |
| Earth leakage current, max.: | 3.5 mA |
| Housing version: | Metal, corrosion resistant |
| MTBF: | > 1.000.000 h according IEC 1709 (SN29500) |
| Mounting position, installation notice: | Horizontal on DIN rail TS 35, top and bottom 50 mm clearance for free air flow, 10 mm clearance to neighbouring active subassemblies with full load, 5 mm with passive neighbouring subassemblies, direct row mounting with 90% rated load |
| Operating temperature: | -25 °C...70 °C |
| Power factor (approx.): | > 0.75 @ 3x400 V AC |
| Protection degree: | IP20 |
| Series switching capability: | Yes |
| Short-circuit protection: | Yes, internal |
| Start-up: | ≥ -40 °C |
| Surge voltage category: | III, II |
| Vibration resistance IEC 60068-2-6: | 2.3 g (on DIN rail), 4 g (with direct mounting) |
| Interference immunity test acc. to: | EN 55024, EN 55032 (EN 55022), EN 61000-6-1, 2, 3, 4 |
| Shock resistance IEC 60068-2-27: | 30 g in all directions |
| Humidity at operating temperature: | 5...95 %, no condensation |
| Insulation voltage input / earth: | 3.2 kV |
| Insulation voltage output / earth: | 0.5 kV |
| Insulation voltage, input/output: | 3.5 kV |
| Pollution severity: | 2 |
| Protection class: | I, with PE connection |
| Surge voltage category: | III, II |
| Electrical machine equipment: | Acc. to EN60204 |
| For use with electronic equipment: | Acc. to EN50178 / VDE0160 |
| Protection against dangerous shock currents: | Acc. to VDE0106-101 |
| Protective separation / protection against electrical shock: | VDE0100-410 / acc. to DIN57100-410 |
| Safety extra-low voltage: | SELV according to EN 60950, PELV according to EN 60204 |
| Safety transformers for switch-mode power supplies: | According to EN 61558-2-16 |
| Conductor cross-section, AWG/kcmil , max.: | 4 |
| Conductor cross-section, AWG/kcmil , min.: | 20 |
| Conductor cross-section, flexible , min.: | 0.75 mm² |
| Conductor cross-section, rigid , max.: | 16 mm² |
| Conductor cross-section, rigid , min.: | 0.75 mm² |
| Connection system: | PUSH IN |
| Number of terminals: | 4 for L1/L2/L3/PE |
| Wire connection cross section, flexible (input), max.: | 16 mm² |
| Conductor cross-section, AWG/kcmil , max.: | 4 |
| Conductor cross-section, AWG/kcmil , min.: | 20 |
| Conductor cross-section, flexible , max.: | 16 mm² |
| Conductor cross-section, flexible , min.: | 0.75 mm² |
| Conductor cross-section, rigid , max.: | 16 mm² |
| Conductor cross-section, rigid , min.: | 0.75 mm² |
| Connection system: | PUSH IN |
| Number of terminals: | 4 (++ / --) |
| Wire connection cross-section, flexible (signal), max.: | 1.5 mm² |
| Wire connection cross-section, flexible (signal), min.: | 0.14 mm² |
| Wire connection method: | PUSH IN |
| Wire cross-section, AWG/kcmil , max.: | 16 |
| Wire cross-section, AWG/kcmil , min.: | 26 |
| Wire cross-section, solid , max.: | 1.5 mm² |
| Wire cross-section, solid , min.: | 0.14 mm² |
| Floating contact: | Yes |
| LED green/red: | Green: Operation (failure-free), Flashing green: advance warning I>90%, Green/red flashing: output switched off (switch-off mode), Flashing red: overload/error |
| Status relay (max. load): | Output voltage OK (30 V DC / 1 A) |
| Certificate no. (cULus): | E258476 |
| Certificate no. (cULusEX): | E470829 |
| ETIM 6.0: | EC002540 |
| ETIM 7.0: | EC002540 |
| eClass 9.0: | 27-04-07-01 |
| eClass 9.1: | 27-04-07-01 |
| eClass 10.0: | 27-04-07-01 |
| ROHS: | Conform |
| Type: | PRO TOP3 960W 24V 40A |
| Order No.: | 2467120000 |
| Version: | Power supply, switch-mode power supply unit, 24 V |
| GTIN (EAN): | 4050118482027 |
| Qty.: | 1 pc(s). |
| Width: | 89 mm |
| Width (inches): | 3.504 inch |
| Height: | 130 mm |
| Height (inches): | 5.118 inch |
| Depth: | 175 mm |
| Depth (inches): | 6.89 inch |
| Weight: | 2,490 g |
| Net weight: | 2,490 g |
| Humidity at operating temperature: | 5...95 %, no condensation |
| Operating temperature, max.: | 70 °C |
| Operating temperature, min.: | -25 °C |
| Storage temperature, max.: | 85 °C |
| Storage temperature, min.: | -40 °C |
| Operating temperature: | -25 °C...70 °C |
| Storage temperature: | -40 °C...85 °C |
| REACH SVHC: | Lead 7439-92-1 |
| AC input voltage range: | 3 x 320...3 x 575 V AC / 2 x 360...2 x 575 V AC |
| Connection system: | PUSH IN |
| DC input voltage range: | 450...800 V DC (max. 500 V DC acc. to UL508) |
| Frequency range AC: | 45…65 Hz |
| Input fuse (internal): | No |
| Inrush current: | Max. 10 A |
| Rated input voltage: | 3 x 400...3 x 500 V AC (wide-range input) |
| Recommended back-up fuse: | 6 - 8 A, Char. C |
| Surge protection: | Varistor |
| DCL - peak load reserve: | 150 % (5 s); 400 % (15 ms) |
| Connection system: | PUSH IN |
| Mains failure bridge-over time: | > 20 ms @ 115V AC/ 230 VAC |
| Nominal output current for Unom: | 40 A @ 60 °C |
| Output power: | 960 W |
| Output voltage: | 24 V |
| Output voltage: | 22.5...28.8 V |
| Parallel connection option: | yes, max 10 |
| Protection against inverse voltage: | Yes |
| Ramp-up time: | ≤ 100 ms |
| Rated output voltage: | 24 V DC ± 1 % |
| Reserve capacity @ UNominal: | 130% permanent at ≤ 40°C, 150 % (5 s) |
| Triggerable circuit breakers: | B6, B10, B16, B20, B25, C2, C4, C6, C10, C13, C16 |
| AC failure bridging time @ Inom: | > 20 ms @ 230 V AC / > 20 ms @ 115 V AC |
| Conformal coating: | No |
| Degree of efficiency: | 95,3 % |
| Derating: | > 60°C (2.5% / 1°C) |
| Earth leakage current, max.: | 3.5 mA |
| Housing version: | Metal, corrosion resistant |
| MTBF: | > 1.000.000 h according IEC 1709 (SN29500) |
| Mounting position, installation notice: | Horizontal on DIN rail TS 35, top and bottom 50 mm clearance for free air flow, 10 mm clearance to neighbouring active subassemblies with full load, 5 mm with passive neighbouring subassemblies, direct row mounting with 90% rated load |
| Operating temperature: | -25 °C...70 °C |
| Power factor (approx.): | > 0.75 @ 3x400 V AC |
| Protection degree: | IP20 |
| Series switching capability: | Yes |
| Short-circuit protection: | Yes, internal |
| Start-up: | ≥ -40 °C |
| Surge voltage category: | III, II |
| Vibration resistance IEC 60068-2-6: | 2.3 g (on DIN rail), 4 g (with direct mounting) |
| Interference immunity test acc. to: | EN 55024, EN 55032 (EN 55022), EN 61000-6-1, 2, 3, 4 |
| Shock resistance IEC 60068-2-27: | 30 g in all directions |
| Humidity at operating temperature: | 5...95 %, no condensation |
| Insulation voltage input / earth: | 3.2 kV |
| Insulation voltage output / earth: | 0.5 kV |
| Insulation voltage, input/output: | 3.5 kV |
| Pollution severity: | 2 |
| Protection class: | I, with PE connection |
| Surge voltage category: | III, II |
| Electrical machine equipment: | Acc. to EN60204 |
| For use with electronic equipment: | Acc. to EN50178 / VDE0160 |
| Protection against dangerous shock currents: | Acc. to VDE0106-101 |
| Protective separation / protection against electrical shock: | VDE0100-410 / acc. to DIN57100-410 |
| Safety extra-low voltage: | SELV according to EN 60950, PELV according to EN 60204 |
| Safety transformers for switch-mode power supplies: | According to EN 61558-2-16 |
| Conductor cross-section, AWG/kcmil , max.: | 4 |
| Conductor cross-section, AWG/kcmil , min.: | 20 |
| Conductor cross-section, flexible , min.: | 0.75 mm² |
| Conductor cross-section, rigid , max.: | 16 mm² |
| Conductor cross-section, rigid , min.: | 0.75 mm² |
| Connection system: | PUSH IN |
| Number of terminals: | 4 for L1/L2/L3/PE |
| Wire connection cross section, flexible (input), max.: | 16 mm² |
| Conductor cross-section, AWG/kcmil , max.: | 4 |
| Conductor cross-section, AWG/kcmil , min.: | 20 |
| Conductor cross-section, flexible , max.: | 16 mm² |
| Conductor cross-section, flexible , min.: | 0.75 mm² |
| Conductor cross-section, rigid , max.: | 16 mm² |
| Conductor cross-section, rigid , min.: | 0.75 mm² |
| Connection system: | PUSH IN |
| Number of terminals: | 4 (++ / --) |
| Wire connection cross-section, flexible (signal), max.: | 1.5 mm² |
| Wire connection cross-section, flexible (signal), min.: | 0.14 mm² |
| Wire connection method: | PUSH IN |
| Wire cross-section, AWG/kcmil , max.: | 16 |
| Wire cross-section, AWG/kcmil , min.: | 26 |
| Wire cross-section, solid , max.: | 1.5 mm² |
| Wire cross-section, solid , min.: | 0.14 mm² |
| Floating contact: | Yes |
| LED green/red: | Green: Operation (failure-free), Flashing green: advance warning I>90%, Green/red flashing: output switched off (switch-off mode), Flashing red: overload/error |
| Status relay (max. load): | Output voltage OK (30 V DC / 1 A) |
| Certificate no. (cULus): | E258476 |
| Certificate no. (cULusEX): | E470829 |
| ETIM 6.0: | EC002540 |
| ETIM 7.0: | EC002540 |
| eClass 9.0: | 27-04-07-01 |
| eClass 9.1: | 27-04-07-01 |
| eClass 10.0: | 27-04-07-01 |
| ROHS: | Conform |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 2.765 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
