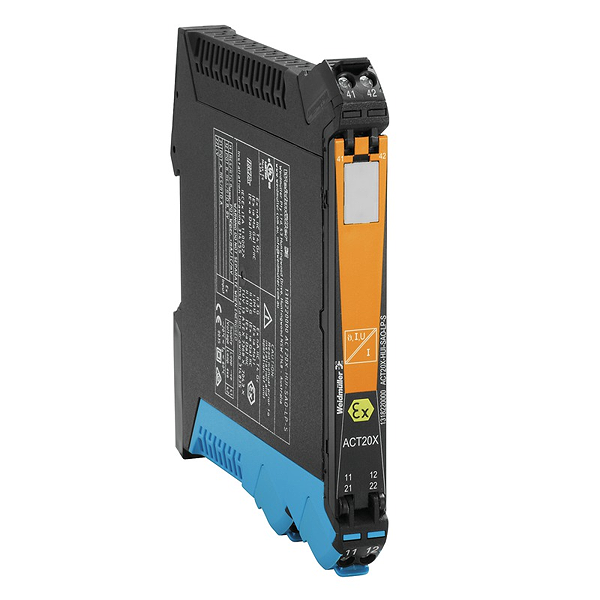

Image copyright: Weidmueller
Weidmueller 2456210000
ACT20X-HUI-SAO-LP-P
ACT20X, EX signal isolating converter, 1-channel version, Output-loop powered
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Type: | ACT20X-HUI-SAO-LP-P |
| Order No.: | 2456210000 |
| Version: | ACT20X, EX signal isolating converter, 1-channel version, Output-loop powered |
| GTIN (EAN): | 4050118471618 |
| Qty.: | 1 pc(s). |
| Width: | 12.5 mm |
| Width (inches): | 0.492 inch |
| Height: | 117.2 mm |
| Height (inches): | 4.614 inch |
| Depth: | 113.6 mm |
| Depth (inches): | 4.472 inch |
| Net weight: | 180 g |
| Humidity: | 0...95 % (no condensation) |
| Operating temperature, max.: | 60 °C |
| Operating temperature, min.: | 0 °C |
| Storage temperature, max.: | 85 °C |
| Storage temperature, min.: | -20 °C |
| Operating temperature: | 0 °C...60 °C |
| Storage temperature: | -20 °C...85 °C |
| REACH SVHC: | Lead 7439-92-1 |
| Input current: | configurable, ± 25 mA, 0...20 mA, 4…20mA |
| Input resistance: | 0…12 kΩ |
| Input resistance, current: | 70 Ω |
| Input resistance, voltage: | > 10 MΩ @ 600 mV, 2 MΩ @ 28 V |
| Input voltage: | configurable, ± 12 V DC (min. measurement range 1 V), ± 28 V DC (min. measurement range 2 V), ± 600 mV DC (min. measurement range 50 mV), ± 150 mV DC (min. measurement range 15 mV) |
| Line resistance in measuring circuit: | ≤ 50 Ω |
| Potentiometer: | 1.2…500 kΩ |
| Sensor: | 2-/3-/4-wire, RTD: PT10, PT20, PT50, PT100, PT250, PT300, PT400, PT500, PT1000, Ni50, Ni100, Ni120, Ni1000, Thermocouples: B, E, J, K, N, R, S, T ; in compliance with IEC 60584-1 and L, U in compliance with DIN43710, Potentiometer, Resistance: 0 - 12 kΩ |
| Sensor supply: | 28…16.5 V DC / 0…20 mA |
| Temperature input range: | Adjustable from -200...+800°C |
| Type: | intrinsically safe circuit |
| Type: | Output-loop powered |
| Influence of load resistance: | ≤ 0.01% of span / 100 Ω |
| Output signal limit: | 3.8…20.5 mA / 0…20.5 mA (dependent on range) |
| Output current: | 4…20 mA (max. 23 mA) |
| Cut-off frequency (-3 dB): | 100 Hz |
| Load impedance current: | ≤ 700 Ω |
| Voltage supply: | via output current loop, 11…28 V DC (loop powered) |
| Type of connection: | PUSH IN |
| Power consumption: | ≤ 3.5 W |
| Temperature coefficient: | < 0.02 °C of measuring range / °C |
| Step response time: | 250 ms (10…90%) |
| Protection degree: | IP20 |
| Humidity: | 0...95 % (no condensation) |
| Impulse withstand voltage: | 4 kV (1.2/50 µs) |
| Insulation voltage: | 3.51 kV between input and output |
| Pollution severity: | 2 |
| Standards: | DIN EN 61326-1, IEC 61010-1, IEC 61010-2-030, IEC 60079-0, IEC 60079-11, IEC 60079-15, IEC 60079-26 |
| Surge voltage category: | III |
| Voltage U0: | 5.88 V DC |
| Current I0: | 88.2 mA |
| Power P0: | 129 mW |
| Marking: | II 3 G Ex nA IIC T4 Gc, I (M1) [Ex ia Ma] I, II (1) D [Ex ia Da] IIIC |
| Installation location: | Device installed in safe area, zone 2 |
| Type of connection: | PUSH IN |
| Wire connection cross section AWG, min.: | AWG 26 |
| Wire connection cross section AWG, max.: | AWG 14 |
| Wire cross-section, solid, min.: | 0.2 mm² |
| Wire cross-section, solid, max.: | 2.5 mm² |
| Wire connection cross-section, finely stranded, min.: | 0.2 mm² |
| Wire connection cross section, finely stranded, max.: | 2.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.: | 0.2 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.: | 2.5 mm² |
| ETIM 6.0: | EC002653 |
| ETIM 7.0: | EC002653 |
| eClass 9.0: | 27-21-01-20 |
| eClass 9.1: | 27-21-01-90 |
| eClass 10.0: | 27-21-01-20 |
| ROHS: | Conform |
| Type: | ACT20X-HUI-SAO-LP-P |
| Order No.: | 2456210000 |
| Version: | ACT20X, EX signal isolating converter, 1-channel version, Output-loop powered |
| GTIN (EAN): | 4050118471618 |
| Qty.: | 1 pc(s). |
| Width: | 12.5 mm |
| Width (inches): | 0.492 inch |
| Height: | 117.2 mm |
| Height (inches): | 4.614 inch |
| Depth: | 113.6 mm |
| Depth (inches): | 4.472 inch |
| Net weight: | 180 g |
| Humidity: | 0...95 % (no condensation) |
| Operating temperature, max.: | 60 °C |
| Operating temperature, min.: | 0 °C |
| Storage temperature, max.: | 85 °C |
| Storage temperature, min.: | -20 °C |
| Operating temperature: | 0 °C...60 °C |
| Storage temperature: | -20 °C...85 °C |
| REACH SVHC: | Lead 7439-92-1 |
| Input current: | configurable, ± 25 mA, 0...20 mA, 4…20mA |
| Input resistance: | 0…12 kΩ |
| Input resistance, current: | 70 Ω |
| Input resistance, voltage: | > 10 MΩ @ 600 mV, 2 MΩ @ 28 V |
| Input voltage: | configurable, ± 12 V DC (min. measurement range 1 V), ± 28 V DC (min. measurement range 2 V), ± 600 mV DC (min. measurement range 50 mV), ± 150 mV DC (min. measurement range 15 mV) |
| Line resistance in measuring circuit: | ≤ 50 Ω |
| Potentiometer: | 1.2…500 kΩ |
| Sensor: | 2-/3-/4-wire, RTD: PT10, PT20, PT50, PT100, PT250, PT300, PT400, PT500, PT1000, Ni50, Ni100, Ni120, Ni1000, Thermocouples: B, E, J, K, N, R, S, T ; in compliance with IEC 60584-1 and L, U in compliance with DIN43710, Potentiometer, Resistance: 0 - 12 kΩ |
| Sensor supply: | 28…16.5 V DC / 0…20 mA |
| Temperature input range: | Adjustable from -200...+800°C |
| Type: | intrinsically safe circuit |
| Type: | Output-loop powered |
| Influence of load resistance: | ≤ 0.01% of span / 100 Ω |
| Output signal limit: | 3.8…20.5 mA / 0…20.5 mA (dependent on range) |
| Output current: | 4…20 mA (max. 23 mA) |
| Cut-off frequency (-3 dB): | 100 Hz |
| Load impedance current: | ≤ 700 Ω |
| Voltage supply: | via output current loop, 11…28 V DC (loop powered) |
| Type of connection: | PUSH IN |
| Power consumption: | ≤ 3.5 W |
| Temperature coefficient: | < 0.02 °C of measuring range / °C |
| Step response time: | 250 ms (10…90%) |
| Protection degree: | IP20 |
| Humidity: | 0...95 % (no condensation) |
| Impulse withstand voltage: | 4 kV (1.2/50 µs) |
| Insulation voltage: | 3.51 kV between input and output |
| Pollution severity: | 2 |
| Standards: | DIN EN 61326-1, IEC 61010-1, IEC 61010-2-030, IEC 60079-0, IEC 60079-11, IEC 60079-15, IEC 60079-26 |
| Surge voltage category: | III |
| Voltage U0: | 5.88 V DC |
| Current I0: | 88.2 mA |
| Power P0: | 129 mW |
| Marking: | II 3 G Ex nA IIC T4 Gc, I (M1) [Ex ia Ma] I, II (1) D [Ex ia Da] IIIC |
| Installation location: | Device installed in safe area, zone 2 |
| Type of connection: | PUSH IN |
| Wire connection cross section AWG, min.: | AWG 26 |
| Wire connection cross section AWG, max.: | AWG 14 |
| Wire cross-section, solid, min.: | 0.2 mm² |
| Wire cross-section, solid, max.: | 2.5 mm² |
| Wire connection cross-section, finely stranded, min.: | 0.2 mm² |
| Wire connection cross section, finely stranded, max.: | 2.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.: | 0.2 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.: | 2.5 mm² |
| ETIM 6.0: | EC002653 |
| ETIM 7.0: | EC002653 |
| eClass 9.0: | 27-21-01-20 |
| eClass 9.1: | 27-21-01-90 |
| eClass 10.0: | 27-21-01-20 |
| ROHS: | Conform |
Logistic parameters
| ECCN: | |
| Country of Origin: | DE |
| EAN: | 4050118471618 |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
