2445160000
WGK 25 VP/Z IK GY BX
Request a Quote
Image copyright: Weidmueller

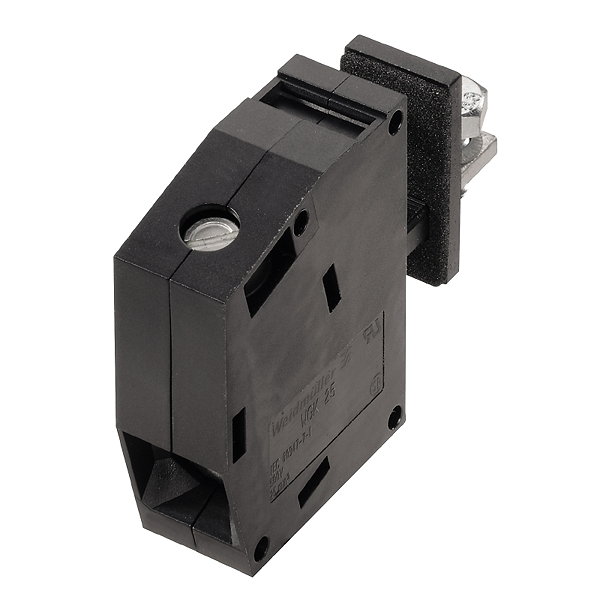

Weidmueller 2445160000
WGK 25 VP/Z IK GY BX
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Type: | WGK 25 VP/Z IK GY BX |
| Order No.: | 2445160000 |
| Version: | OMNIMATE Power - series WGK, Feed-through terminal, Rated cross-section: 25 mm², Wemid (PA) |
| GTIN (EAN): | 4050118480368 |
| Qty.: | 50 pc(s). |
| Packaging: | Box |
| Net weight: | 47.96 g |
| Product family: | OMNIMATE Power - series WGK |
| Wire connection method: | Cable lug: ring cable / spade lug |
| Conductor outlet direction: | 180° |
| Fitted by customer: | Yes |
| Screwdriver blade: | 1.2 x 6.5 |
| Tightening torque, min.: | 4 Nm |
| Tightening torque, max.: | 4.5 Nm |
| Clamping screw: | M 6 |
| Stripping length: | 18 mm |
| Touch-safe protection acc. to DIN VDE 0470: | IP 20 |
| Insulating material: | Wemid (PA) |
| Colour: | grey |
| Colour chart (similar): | RAL 7035 |
| UL 94 flammability rating: | V-0 |
| Contact material: | E-Cu |
| Contact surface: | tinned |
| Storage temperature, min.: | -25 °C |
| Storage temperature, max.: | 50 °C |
| Max. relative humidity during storage: | 70 % |
| Operating temperature, min.: | -50 °C |
| Operating temperature, max.: | 120 °C |
| Temperature range, installation, min.: | -25 °C |
| Temperature range, installation, max.: | 120 °C |
| Clamping range, min.: | 4 mm² |
| Clamping range, max.: | 35 mm² |
| Wire connection cross section AWG, min.: | AWG 10 |
| Wire connection cross section AWG, max.: | AWG 3 |
| Solid, min. H05(07) V-U: | 6 mm² |
| Solid, max. H05(07) V-U: | 16 mm² |
| Stranded, min. H07V-R: | 10 mm² |
| Stranded, max. H07V-R: | 35 mm² |
| Flexible, min. H05(07) V-K: | 6 mm² |
| Flexible, max. H05(07) V-K: | 16 mm² |
| w. wire end ferrule, DIN 46228 pt 1, min.: | 4 mm² |
| w. wire end ferrule, DIN 46228 pt 1, max.: | 25 mm² |
| Type: | fine-wired |
| nominal: | 4 mm² |
| nominal: | 18 mm |
| Type: | fine-wired |
| nominal: | 6 mm² |
| nominal: | 18 mm |
| Type: | fine-wired |
| nominal: | 10 mm² |
| nominal: | 18 mm |
| Type: | fine-wired |
| nominal: | 25 mm² |
| nominal: | 18 mm |
| Reference text: | Length of ferrules is to be chosen depending on the product and the rated voltage., The outside diameter of the plastic collar should not be larger than the pitch (P) |
| Max. clamping range: | 35 mm² |
| tested acc. to standard: | IEC 60664-1, IEC 61984 |
| Rated current, min. number of poles (Tu=20°C): | 101 A |
| Rated current, max. number of poles (Tu=20°C): | 101 A |
| Rated voltage for surge voltage class / pollution degree III/3: | 690 V |
| Rated impulse voltage for surge voltage class/ contamination degree III/3: | 6 kV |
| Rated voltage (Use group B / CSA): | 300 V |
| Rated voltage (Use group C / CSA): | 150 V |
| Rated current (Use group B / CSA): | 100 A |
| Rated current (Use group C / CSA): | 100 A |
| Wire cross-section, AWG, min.: | AWG 10 |
| Wire cross-section, AWG, max.: | AWG 3 |
| Certificate No. (cURus): | E60693 |
| Rated voltage (Use group B / UL 1059): | 300 V |
| Rated voltage (Use group C / UL 1059): | 150 V |
| Rated current (Use group B / UL 1059): | 100 A |
| Rated current (Use group C / UL 1059): | 100 A |
| Wire cross-section, AWG, min.: | AWG 10 |
| Wire cross-section, AWG, max.: | AWG 3 |
| Reference to approval values: | Specifications are maximum values, details - see approval certificate. |
| Packaging: | Box |
| VPE length: | 495 mm |
| VPE width: | 355 mm |
| VPE height: | 182 mm |
| ETIM 6.0: | EC001283 |
| ETIM 7.0: | EC001283 |
| eClass 9.0: | 27-14-11-34 |
| eClass 9.1: | 27-14-11-34 |
| eClass 10.0: | 27-14-11-34 |
| Type: | WGK 25 VP/Z IK GY BX |
| Order No.: | 2445160000 |
| Version: | OMNIMATE Power - series WGK, Feed-through terminal, Rated cross-section: 25 mm², Wemid (PA) |
| GTIN (EAN): | 4050118480368 |
| Qty.: | 50 pc(s). |
| Packaging: | Box |
| Net weight: | 47.96 g |
| Product family: | OMNIMATE Power - series WGK |
| Wire connection method: | Cable lug: ring cable / spade lug |
| Conductor outlet direction: | 180° |
| Fitted by customer: | Yes |
| Screwdriver blade: | 1.2 x 6.5 |
| Tightening torque, min.: | 4 Nm |
| Tightening torque, max.: | 4.5 Nm |
| Clamping screw: | M 6 |
| Stripping length: | 18 mm |
| Touch-safe protection acc. to DIN VDE 0470: | IP 20 |
| Insulating material: | Wemid (PA) |
| Colour: | grey |
| Colour chart (similar): | RAL 7035 |
| UL 94 flammability rating: | V-0 |
| Contact material: | E-Cu |
| Contact surface: | tinned |
| Storage temperature, min.: | -25 °C |
| Storage temperature, max.: | 50 °C |
| Max. relative humidity during storage: | 70 % |
| Operating temperature, min.: | -50 °C |
| Operating temperature, max.: | 120 °C |
| Temperature range, installation, min.: | -25 °C |
| Temperature range, installation, max.: | 120 °C |
| Clamping range, min.: | 4 mm² |
| Clamping range, max.: | 35 mm² |
| Wire connection cross section AWG, min.: | AWG 10 |
| Wire connection cross section AWG, max.: | AWG 3 |
| Solid, min. H05(07) V-U: | 6 mm² |
| Solid, max. H05(07) V-U: | 16 mm² |
| Stranded, min. H07V-R: | 10 mm² |
| Stranded, max. H07V-R: | 35 mm² |
| Flexible, min. H05(07) V-K: | 6 mm² |
| Flexible, max. H05(07) V-K: | 16 mm² |
| w. wire end ferrule, DIN 46228 pt 1, min.: | 4 mm² |
| w. wire end ferrule, DIN 46228 pt 1, max.: | 25 mm² |
| Type: | fine-wired |
| nominal: | 4 mm² |
| nominal: | 18 mm |
| Type: | fine-wired |
| nominal: | 6 mm² |
| nominal: | 18 mm |
| Type: | fine-wired |
| nominal: | 10 mm² |
| nominal: | 18 mm |
| Type: | fine-wired |
| nominal: | 25 mm² |
| nominal: | 18 mm |
| Reference text: | Length of ferrules is to be chosen depending on the product and the rated voltage., The outside diameter of the plastic collar should not be larger than the pitch (P) |
| Max. clamping range: | 35 mm² |
| tested acc. to standard: | IEC 60664-1, IEC 61984 |
| Rated current, min. number of poles (Tu=20°C): | 101 A |
| Rated current, max. number of poles (Tu=20°C): | 101 A |
| Rated voltage for surge voltage class / pollution degree III/3: | 690 V |
| Rated impulse voltage for surge voltage class/ contamination degree III/3: | 6 kV |
| Rated voltage (Use group B / CSA): | 300 V |
| Rated voltage (Use group C / CSA): | 150 V |
| Rated current (Use group B / CSA): | 100 A |
| Rated current (Use group C / CSA): | 100 A |
| Wire cross-section, AWG, min.: | AWG 10 |
| Wire cross-section, AWG, max.: | AWG 3 |
| Certificate No. (cURus): | E60693 |
| Rated voltage (Use group B / UL 1059): | 300 V |
| Rated voltage (Use group C / UL 1059): | 150 V |
| Rated current (Use group B / UL 1059): | 100 A |
| Rated current (Use group C / UL 1059): | 100 A |
| Wire cross-section, AWG, min.: | AWG 10 |
| Wire cross-section, AWG, max.: | AWG 3 |
| Reference to approval values: | Specifications are maximum values, details - see approval certificate. |
| Packaging: | Box |
| VPE length: | 495 mm |
| VPE width: | 355 mm |
| VPE height: | 182 mm |
| ETIM 6.0: | EC001283 |
| ETIM 7.0: | EC001283 |
| eClass 9.0: | 27-14-11-34 |
| eClass 9.1: | 27-14-11-34 |
| eClass 10.0: | 27-14-11-34 |
