Product
Weidmueller
2439140000
CRIMPFIX E
Request a Quote

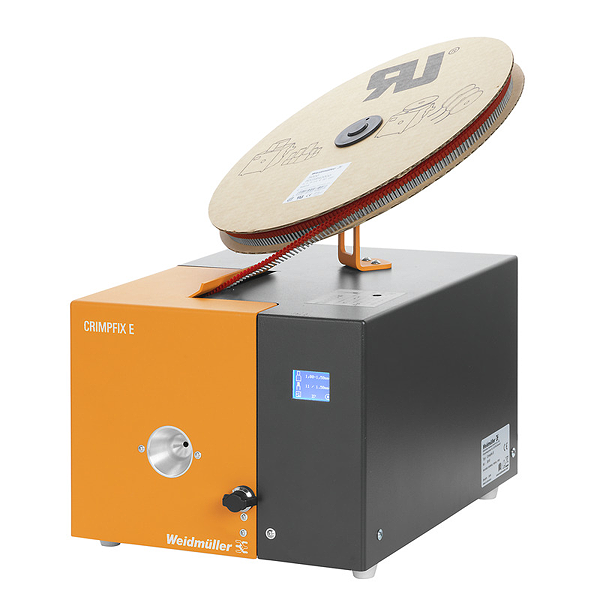

Image copyright: Weidmueller
Weidmueller 2439140000
CRIMPFIX E
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Type: | CRIMPFIX E |
| Order No.: | 2439140000 |
| Version: | Automatic machines, Automatic stripper and crimper |
| GTIN (EAN): | 4050118451917 |
| Qty.: | 1 pc(s). |
| Width: | 288 mm |
| Width (inches): | 11.339 inch |
| Height: | 230 mm |
| Height (inches): | 9.055 inch |
| Depth: | 349 mm |
| Depth (inches): | 13.74 inch |
| Weight: | 16 kg |
| Net weight: | 14,000 g |
| REACH SVHC: | Lead 7439-92-1 |
| Electrical connection: | 100 - 240 V AC / 50/60 Hz |
| Consumables: | Linked wire-end ferrules, with plastic collar |
| Crimping: | Trapezoidal |
| Crimping length: | 8 mm |
| Crimping range, max.: | 2.5 mm² |
| Crimping range, min.: | 0.5 mm² |
| Drive: | Electro-mechanical |
| Electrical connection: | 100 - 240 V AC / 50/60 Hz |
| Length of wire-end ferrule: | 14 mm |
| Pulse time: | approx. 1.8 sec |
| Stripping range: | 0.5 - 2.5 mm² |
| Wire end ferrules cross-section, max.: | 2.5 mm² |
| Wire end ferrules cross-section, min.: | 0.5 mm² |
| ETIM 6.0: | EC002778 |
| ETIM 7.0: | EC002778 |
| eClass 9.0: | 17-13-01-01 |
| eClass 9.1: | 17-13-01-01 |
| eClass 10.0: | 17-13-01-01 |
| ROHS: | Conform |
| Type: | CRIMPFIX E |
| Order No.: | 2439140000 |
| Version: | Automatic machines, Automatic stripper and crimper |
| GTIN (EAN): | 4050118451917 |
| Qty.: | 1 pc(s). |
| Width: | 288 mm |
| Width (inches): | 11.339 inch |
| Height: | 230 mm |
| Height (inches): | 9.055 inch |
| Depth: | 349 mm |
| Depth (inches): | 13.74 inch |
| Weight: | 16 kg |
| Net weight: | 14,000 g |
| REACH SVHC: | Lead 7439-92-1 |
| Electrical connection: | 100 - 240 V AC / 50/60 Hz |
| Consumables: | Linked wire-end ferrules, with plastic collar |
| Crimping: | Trapezoidal |
| Crimping length: | 8 mm |
| Crimping range, max.: | 2.5 mm² |
| Crimping range, min.: | 0.5 mm² |
| Drive: | Electro-mechanical |
| Electrical connection: | 100 - 240 V AC / 50/60 Hz |
| Length of wire-end ferrule: | 14 mm |
| Pulse time: | approx. 1.8 sec |
| Stripping range: | 0.5 - 2.5 mm² |
| Wire end ferrules cross-section, max.: | 2.5 mm² |
| Wire end ferrules cross-section, min.: | 0.5 mm² |
| ETIM 6.0: | EC002778 |
| ETIM 7.0: | EC002778 |
| eClass 9.0: | 17-13-01-01 |
| eClass 9.1: | 17-13-01-01 |
| eClass 10.0: | 17-13-01-01 |
| ROHS: | Conform |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 15.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
