Product
Weidmueller
1981910700
SAIL-M8BG-4S-7.0U
Request a Quote

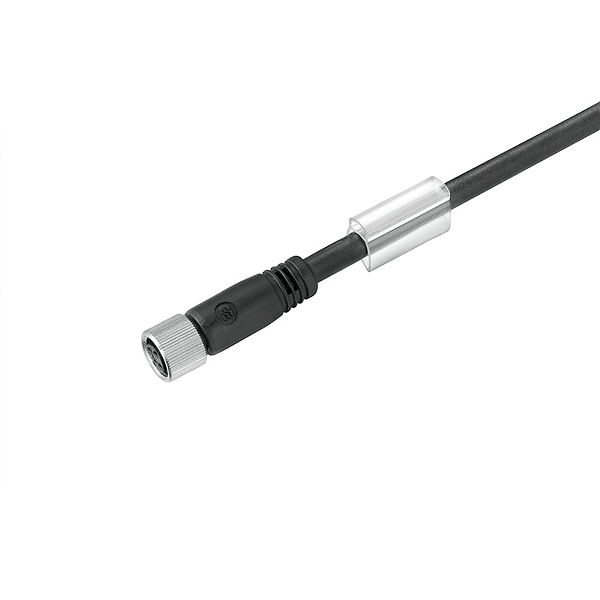

Image copyright: Weidmueller
Weidmueller 1981910700
SAIL-M8BG-4S-7.0U
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Type: | SAIL-M8BG-4S-7.0U |
| Order No.: | 1981910700 |
| Version: | Bus line, One end without connector, M8, Number of poles: 4, 7 m, Shielded: Yes, LED: No, Sheath material: PUR, Halogen: No |
| GTIN (EAN): | 4050118627008 |
| Qty.: | 1 pc(s). |
| Net weight: | 288 g |
| REACH SVHC: | Lead 7439-92-1 |
| Number of poles: | 4 |
| Core cross-section: | 0.34 mm² |
| Outside diameter: | 5.1 mm ± 0.2 mm |
| Cable length: | 7 m |
| Shielded: | Yes |
| Insulation: | PP |
| Colour coding: | brown, white, blue, black |
| Sheath material: | PUR |
| Sheathing colour: | black |
| Halogen: | No |
| Temperature range, moving: | -30...90 °C |
| Temperature range, stationary: | -40...90 °C |
| Core in accordance with UL AWM style: | 10493 (80 °C / 300 V) |
| Outer cladding in accordance with UL AWM style: | 20549 (80 °C / 300 V) |
| Suitable for cable carriers: | Yes |
| Torsion resistance: | 360 °/m |
| Bending radius, min., stationary: | 5 x cable diameter |
| Bending radius, min., moving: | 12 x cable diameter |
| Acceleration: | 5 m/s² |
| Speed: | 100 m/min |
| Bending cycles: | 250.000 |
| Resistant to welding beads: | No |
| Hybrid cable: | No |
| Irradiation crosslinked: | No |
| Configurable cable length: | No |
| Connection thread: | M8 |
| Housing main material: | PUR |
| Threaded ring material: | Brass, nickel-plated |
| Coding: | none |
| Protection degree: | IP67 |
| Contact surface: | Gold-plated |
| LED: | No |
| Rated voltage: | 30 V |
| Rated current: | 4 A |
| Temperature range of housing: | -25…+80 °C |
| Tightening torque: | M8: 0.5 - 0.6 Nm |
| Plugging cycles: | ≥ 100 |
| Pollution severity: | 3 |
| jumpered: | No |
| ETIM 6.0: | EC002599 |
| ETIM 7.0: | EC002599 |
| eClass 9.0: | 27-06-03-08 |
| eClass 9.1: | 27-06-03-08 |
| eClass 10.0: | 27-06-03-08 |
| ROHS: | Conform |
| Type: | SAIL-M8BG-4S-7.0U |
| Order No.: | 1981910700 |
| Version: | Bus line, One end without connector, M8, Number of poles: 4, 7 m, Shielded: Yes, LED: No, Sheath material: PUR, Halogen: No |
| GTIN (EAN): | 4050118627008 |
| Qty.: | 1 pc(s). |
| Net weight: | 288 g |
| REACH SVHC: | Lead 7439-92-1 |
| Number of poles: | 4 |
| Core cross-section: | 0.34 mm² |
| Outside diameter: | 5.1 mm ± 0.2 mm |
| Cable length: | 7 m |
| Shielded: | Yes |
| Insulation: | PP |
| Colour coding: | brown, white, blue, black |
| Sheath material: | PUR |
| Sheathing colour: | black |
| Halogen: | No |
| Temperature range, moving: | -30...90 °C |
| Temperature range, stationary: | -40...90 °C |
| Core in accordance with UL AWM style: | 10493 (80 °C / 300 V) |
| Outer cladding in accordance with UL AWM style: | 20549 (80 °C / 300 V) |
| Suitable for cable carriers: | Yes |
| Torsion resistance: | 360 °/m |
| Bending radius, min., stationary: | 5 x cable diameter |
| Bending radius, min., moving: | 12 x cable diameter |
| Acceleration: | 5 m/s² |
| Speed: | 100 m/min |
| Bending cycles: | 250.000 |
| Resistant to welding beads: | No |
| Hybrid cable: | No |
| Irradiation crosslinked: | No |
| Configurable cable length: | No |
| Connection thread: | M8 |
| Housing main material: | PUR |
| Threaded ring material: | Brass, nickel-plated |
| Coding: | none |
| Protection degree: | IP67 |
| Contact surface: | Gold-plated |
| LED: | No |
| Rated voltage: | 30 V |
| Rated current: | 4 A |
| Temperature range of housing: | -25…+80 °C |
| Tightening torque: | M8: 0.5 - 0.6 Nm |
| Plugging cycles: | ≥ 100 |
| Pollution severity: | 3 |
| jumpered: | No |
| ETIM 6.0: | EC002599 |
| ETIM 7.0: | EC002599 |
| eClass 9.0: | 27-06-03-08 |
| eClass 9.1: | 27-06-03-08 |
| eClass 10.0: | 27-06-03-08 |
| ROHS: | Conform |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.283 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
