Weidmueller 1961970000
HSS-HF 1/8 1.8-2.8/25Y
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Type: | HSS-HF 1/8 1.8-2.8/25Y |
| Order No.: | 1961970000 |

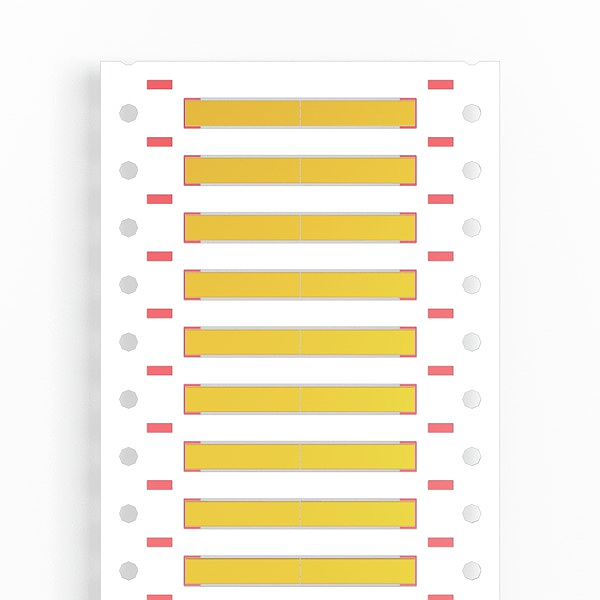

| Version: | Conductor and cable markers, 1.8 - 2.8 mm, 25.4 x 5.7 mm, yellow |
| GTIN (EAN): | 4032248642663 |
| Qty.: | 10,000 pc(s). |
| Width: | 5.7 mm |
| Width (inches): | 0.224 inch |
| Height: | 25.4 mm |
| Height (inches): | 1 inch |
| Depth: | 0.77 mm |
| Depth (inches): | 0.03 inch |
| Net weight: | 0.181 g |
| Colour: | yellow |
| Halogen: | No |
| Material: | Polyolefine |
| Material colour according to resistance code: | 4 |
| Operating temperature range: | -55...105 °C |
| Recommended industries: | Transportation |
| Type of printing: | neutral |
| Width: | 5.7 mm |
| Conductor O.D.: | 1.8 - 2.8 mm |
| Conductor O.D., max.: | 2.8 mm |
| Conductor O.D., min.: | 1.8 mm |
| Conductor cross-section, max.: | 1.5 mm² |
| Conductor cross-section, min.: | 0.5 mm² |
| Halogen: | No |
| Rate of shrinkage: | 2:1 |
| Recommended shrinking temperature: | 90 °C |
| ETIM 6.0: | EC001530 |
| ETIM 7.0: | EC001530 |
| eClass 9.0: | 27-40-04-01 |
| eClass 9.1: | 27-40-04-01 |
| eClass 10.0: | 27-40-04-01 |
| UNSPSC: | 30-21-18-01 |
| ROHS: | Conform |
| Type: | HSS-HF 1/8 1.8-2.8/25Y |
| Order No.: | 1961970000 |
| Version: | Conductor and cable markers, 1.8 - 2.8 mm, 25.4 x 5.7 mm, yellow |
| GTIN (EAN): | 4032248642663 |
| Qty.: | 10,000 pc(s). |
| Width: | 5.7 mm |
| Width (inches): | 0.224 inch |
| Height: | 25.4 mm |
| Height (inches): | 1 inch |
| Depth: | 0.77 mm |
| Depth (inches): | 0.03 inch |
| Net weight: | 0.181 g |
| Colour: | yellow |
| Halogen: | No |
| Material: | Polyolefine |
| Material colour according to resistance code: | 4 |
| Operating temperature range: | -55...105 °C |
| Recommended industries: | Transportation |
| Type of printing: | neutral |
| Width: | 5.7 mm |
| Conductor O.D.: | 1.8 - 2.8 mm |
| Conductor O.D., max.: | 2.8 mm |
| Conductor O.D., min.: | 1.8 mm |
| Conductor cross-section, max.: | 1.5 mm² |
| Conductor cross-section, min.: | 0.5 mm² |
| Halogen: | No |
| Rate of shrinkage: | 2:1 |
| Recommended shrinking temperature: | 90 °C |
| ETIM 6.0: | EC001530 |
| ETIM 7.0: | EC001530 |
| eClass 9.0: | 27-40-04-01 |
| eClass 9.1: | 27-40-04-01 |
| eClass 10.0: | 27-40-04-01 |
| UNSPSC: | 30-21-18-01 |
| ROHS: | Conform |
