Product
Weidmueller
1935511500
SAIL-M23GM23G-MM19-15U
Request a Quote

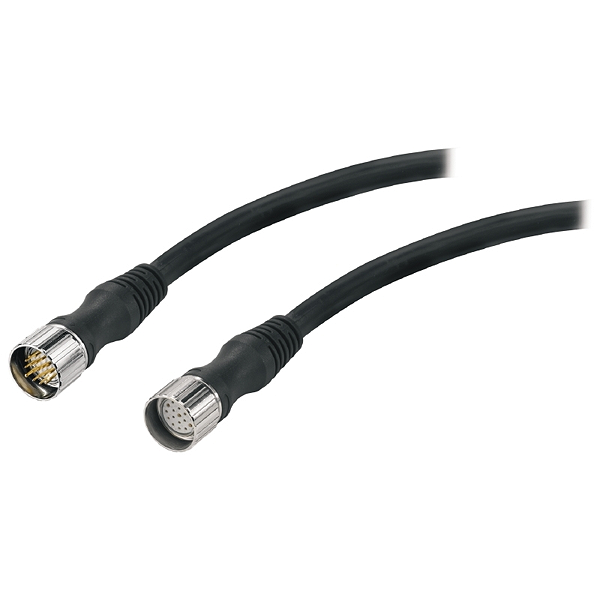

Image copyright: Weidmueller
Weidmueller 1935511500
SAIL-M23GM23G-MM19-15U
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Type: | SAIL-M23GM23G-MM19-15U |
| Order No.: | 1935511500 |
| Version: | Sensor/actuator line, Connecting line, M23 / M23, Number of poles: 19, 15 m, Shielded: No, LED: No, Sheath material: PUR, Halogen: No |
| GTIN (EAN): | 4050118623475 |
| Qty.: | 1 pc(s). |
| Net weight: | 1,000 g |
| REACH SVHC: | Lead 7439-92-1 |
| Number of poles: | 19 |
| Wire cross section: | 12-pole (8x0.34+3x0.75)/19-pole (16x0.34+3x0.75) |
| Outside diameter: | 9.1 mm ± 0.3 mm |
| Cable length: | 15 m |
| Shielded: | No |
| Insulation: | TPM |
| Colour coding: | violet, red, grey, red / blue, green, blue, grey / pink, white / green, white / yellow, white / grey, black, Green/yellow, Yellow / brown, brown / green, white, yellow, pink, grey / brown, brown |
| Sheath material: | PUR |
| Sheathing colour: | black |
| Halogen: | No |
| Temperature range, moving: | -25...80 °C |
| Temperature range, stationary: | -50...80 °C |
| Core in accordance with UL AWM style: | 10493 (80 °C / 300 V) |
| Outer cladding in accordance with UL AWM style: | 21198 (80 °C / 300 V) |
| Suitable for cable carriers: | Yes |
| Torsion resistance: | 0 °/m |
| Bending radius, min., moving: | 10 x cable diameter |
| Bending cycles: | 2 Mio |
| Resistant to welding beads: | No |
| Connection thread: | M23 / M23 |
| Housing main material: | PUR |
| Threaded ring material: | Diecast zinc |
| Protection degree: | IP67 |
| Contact surface: | Gold-plated |
| LED: | No |
| Rated voltage: | 120 V |
| Rated current: | 8 A |
| Temperature range of housing: | -25…+80 °C |
| Tightening torque: | M23: 2.5 Nm |
| Plugging cycles: | ≥ 50 |
| Pollution severity: | 2 |
| jumpered: | No |
| ETIM 6.0: | EC001855 |
| ETIM 7.0: | EC001855 |
| eClass 9.0: | 27-06-03-11 |
| eClass 9.1: | 27-06-03-11 |
| eClass 10.0: | 27-06-03-11 |
| ROHS: | Conform |
| Type: | SAIL-M23GM23G-MM19-15U |
| Order No.: | 1935511500 |
| Version: | Sensor/actuator line, Connecting line, M23 / M23, Number of poles: 19, 15 m, Shielded: No, LED: No, Sheath material: PUR, Halogen: No |
| GTIN (EAN): | 4050118623475 |
| Qty.: | 1 pc(s). |
| Net weight: | 1,000 g |
| REACH SVHC: | Lead 7439-92-1 |
| Number of poles: | 19 |
| Wire cross section: | 12-pole (8x0.34+3x0.75)/19-pole (16x0.34+3x0.75) |
| Outside diameter: | 9.1 mm ± 0.3 mm |
| Cable length: | 15 m |
| Shielded: | No |
| Insulation: | TPM |
| Colour coding: | violet, red, grey, red / blue, green, blue, grey / pink, white / green, white / yellow, white / grey, black, Green/yellow, Yellow / brown, brown / green, white, yellow, pink, grey / brown, brown |
| Sheath material: | PUR |
| Sheathing colour: | black |
| Halogen: | No |
| Temperature range, moving: | -25...80 °C |
| Temperature range, stationary: | -50...80 °C |
| Core in accordance with UL AWM style: | 10493 (80 °C / 300 V) |
| Outer cladding in accordance with UL AWM style: | 21198 (80 °C / 300 V) |
| Suitable for cable carriers: | Yes |
| Torsion resistance: | 0 °/m |
| Bending radius, min., moving: | 10 x cable diameter |
| Bending cycles: | 2 Mio |
| Resistant to welding beads: | No |
| Connection thread: | M23 / M23 |
| Housing main material: | PUR |
| Threaded ring material: | Diecast zinc |
| Protection degree: | IP67 |
| Contact surface: | Gold-plated |
| LED: | No |
| Rated voltage: | 120 V |
| Rated current: | 8 A |
| Temperature range of housing: | -25…+80 °C |
| Tightening torque: | M23: 2.5 Nm |
| Plugging cycles: | ≥ 50 |
| Pollution severity: | 2 |
| jumpered: | No |
| ETIM 6.0: | EC001855 |
| ETIM 7.0: | EC001855 |
| eClass 9.0: | 27-06-03-11 |
| eClass 9.1: | 27-06-03-11 |
| eClass 10.0: | 27-06-03-11 |
| ROHS: | Conform |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 1.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
