Product
Weidmueller
1925511500
SAIL-M12W-3-15V
Request a Quote

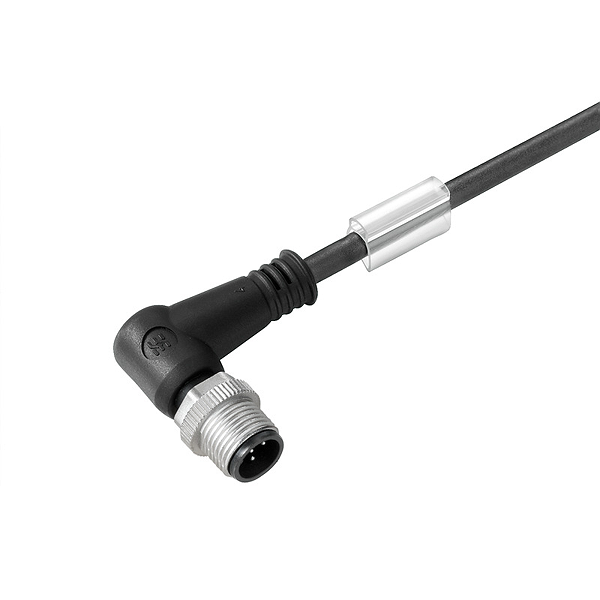

Image copyright: Weidmueller
Weidmueller 1925511500
SAIL-M12W-3-15V
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Type: | SAIL-M12W-3-15V |
| Order No.: | 1925511500 |
| Version: | Sensor/actuator line, One end without connector, M12, Number of poles : 3, 15 m, Shielded: No, LED: No, Sheath material: PVC, Halogen: Yes |
| GTIN (EAN): | 4050118617733 |
| Qty.: | 1 pc(s). |
| Net weight: | 392.165 g |
| REACH SVHC: | Lead 7439-92-1 |
| Number of poles: | 3 |
| Core cross-section: | 0.34 mm² |
| Outside diameter: | 4.9 mm ± 0.2 mm |
| Cable length: | 15 m |
| Shielded: | No |
| Insulation: | PVC |
| Colour coding: | brown, blue, black |
| Sheath material: | PVC |
| Sheathing colour: | black |
| Halogen: | Yes |
| Temperature range, moving: | -5...80 °C |
| Temperature range, stationary: | -30...80 °C |
| Outer cladding in accordance with UL AWM style: | 2464 (80 °C / 300 V) |
| Suitable for cable carriers: | No |
| Torsion resistance: | 0 °/m |
| Resistant to welding beads: | No |
| Configurable cable length: | No |
| AF size: | 12 mm |
| Connection thread: | M12 |
| Housing main material: | PUR |
| Threaded ring material: | Diecast zinc |
| Coding: | A |
| Protection degree: | IP65, IP66, IP67, IP68, when screwed in |
| Contact surface: | Gold-plated |
| LED: | No |
| Rated voltage: | 250 V |
| Rated current: | 4 A |
| Temperature range of housing: | -25…+80 °C |
| Tightening torque: | M12: 0.8 - 1.2 Nm |
| Plugging cycles: | ≥ 100 |
| Pollution severity: | 3 |
| jumpered: | No |
| ETIM 6.0: | EC001855 |
| ETIM 7.0: | EC001855 |
| eClass 9.0: | 27-06-03-11 |
| eClass 9.1: | 27-06-03-11 |
| eClass 10.0: | 27-06-03-11 |
| ROHS: | Conform |
| Type: | SAIL-M12W-3-15V |
| Order No.: | 1925511500 |
| Version: | Sensor/actuator line, One end without connector, M12, Number of poles : 3, 15 m, Shielded: No, LED: No, Sheath material: PVC, Halogen: Yes |
| GTIN (EAN): | 4050118617733 |
| Qty.: | 1 pc(s). |
| Net weight: | 392.165 g |
| REACH SVHC: | Lead 7439-92-1 |
| Number of poles: | 3 |
| Core cross-section: | 0.34 mm² |
| Outside diameter: | 4.9 mm ± 0.2 mm |
| Cable length: | 15 m |
| Shielded: | No |
| Insulation: | PVC |
| Colour coding: | brown, blue, black |
| Sheath material: | PVC |
| Sheathing colour: | black |
| Halogen: | Yes |
| Temperature range, moving: | -5...80 °C |
| Temperature range, stationary: | -30...80 °C |
| Outer cladding in accordance with UL AWM style: | 2464 (80 °C / 300 V) |
| Suitable for cable carriers: | No |
| Torsion resistance: | 0 °/m |
| Resistant to welding beads: | No |
| Configurable cable length: | No |
| AF size: | 12 mm |
| Connection thread: | M12 |
| Housing main material: | PUR |
| Threaded ring material: | Diecast zinc |
| Coding: | A |
| Protection degree: | IP65, IP66, IP67, IP68, when screwed in |
| Contact surface: | Gold-plated |
| LED: | No |
| Rated voltage: | 250 V |
| Rated current: | 4 A |
| Temperature range of housing: | -25…+80 °C |
| Tightening torque: | M12: 0.8 - 1.2 Nm |
| Plugging cycles: | ≥ 100 |
| Pollution severity: | 3 |
| jumpered: | No |
| ETIM 6.0: | EC001855 |
| ETIM 7.0: | EC001855 |
| eClass 9.0: | 27-06-03-11 |
| eClass 9.1: | 27-06-03-11 |
| eClass 10.0: | 27-06-03-11 |
| ROHS: | Conform |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.392 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
