Product
Weidmueller
1861640000
WF 10-8/2BZ GR
Request a Quote

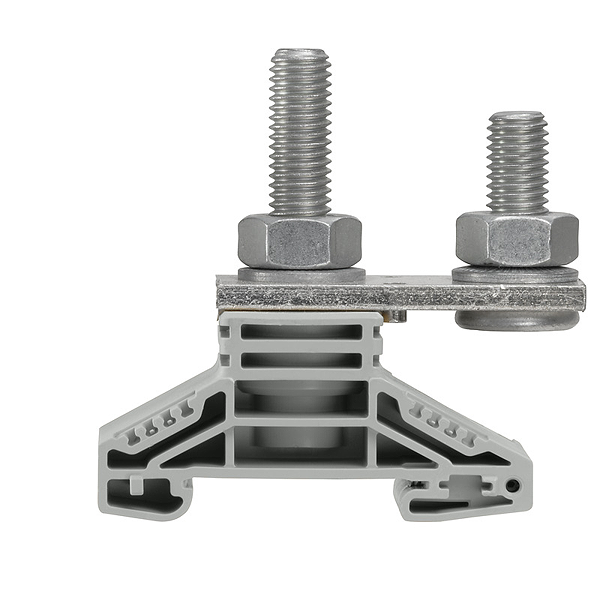

Image copyright: Weidmueller
Weidmueller 1861640000
WF 10-8/2BZ GR
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Type: | WF 10-8/2BZ GR |
| Order No.: | 1861640000 |
| Version: | Bolt-type screw terminals, Feed-through terminal, Rated cross-section: 120 mm², Threaded stud connection |
| GTIN (EAN): | 4032248497089 |
| Qty.: | 20 pc(s). |
| Width: | 32 mm |
| Width (inches): | 1.26 inch |
| Height: | 67 mm |
| Height (inches): | 2.638 inch |
| Depth: | 63.5 mm |
| Depth (inches): | 2.5 inch |
| Net weight: | 0.111 g |
| Storage temperature, max.: | 40 °C |
| Storage temperature, min.: | 10 °C |
| Storage temperature: | 10 °C...40 °C |
| Continuous operating temp., min.: | -50 °C |
| Continuous operating temp., max.: | 120 °C |
| Material: | Wemid |
| Colour: | grey |
| UL 94 flammability rating: | V-0 |
| Number of levels: | 1 |
| Number of clamping points per level: | 3 |
| Levels cross-connected internally: | No |
| Rail: | TS 35 |
| Type of mounting: | Snap-on |
| Certificate No. (CSA): | 200039-1244019 |
| Current size C (CSA): | 325 A |
| Voltage size C (CSA): | 1000 V |
| Wire cross section max. (CSA): | 0000 AWG |
| Wire cross section min. (CSA): | 00 AWG |
| Number of connections: | 2 |
| Type of connection: | Threaded stud connection |
| Rated cross-section: | 120 mm² |
| Volume resistance according to IEC 60947-7-x: | 0.12 mΩ |
| Power loss in accordance with IEC 60947-7-x: | 8.61 W |
| Certificate No. (cURus): | E60693 |
| Conductor size Factory wiring max. (cURus): | 0000 AWG |
| Current size C (cURus): | 325 A |
| Voltage size C (cURus): | 1000 V |
| ETIM 6.0: | EC000897 |
| ETIM 7.0: | EC000897 |
| eClass 9.0: | 27-14-11-20 |
| eClass 9.1: | 27-14-11-20 |
| eClass 10.0: | 27-14-11-20 |
| ROHS: | Conform |
| Type: | WF 10-8/2BZ GR |
| Order No.: | 1861640000 |
| Version: | Bolt-type screw terminals, Feed-through terminal, Rated cross-section: 120 mm², Threaded stud connection |
| GTIN (EAN): | 4032248497089 |
| Qty.: | 20 pc(s). |
| Width: | 32 mm |
| Width (inches): | 1.26 inch |
| Height: | 67 mm |
| Height (inches): | 2.638 inch |
| Depth: | 63.5 mm |
| Depth (inches): | 2.5 inch |
| Net weight: | 0.111 g |
| Storage temperature, max.: | 40 °C |
| Storage temperature, min.: | 10 °C |
| Storage temperature: | 10 °C...40 °C |
| Continuous operating temp., min.: | -50 °C |
| Continuous operating temp., max.: | 120 °C |
| Material: | Wemid |
| Colour: | grey |
| UL 94 flammability rating: | V-0 |
| Number of levels: | 1 |
| Number of clamping points per level: | 3 |
| Levels cross-connected internally: | No |
| Rail: | TS 35 |
| Type of mounting: | Snap-on |
| Certificate No. (CSA): | 200039-1244019 |
| Current size C (CSA): | 325 A |
| Voltage size C (CSA): | 1000 V |
| Wire cross section max. (CSA): | 0000 AWG |
| Wire cross section min. (CSA): | 00 AWG |
| Number of connections: | 2 |
| Type of connection: | Threaded stud connection |
| Rated cross-section: | 120 mm² |
| Volume resistance according to IEC 60947-7-x: | 0.12 mΩ |
| Power loss in accordance with IEC 60947-7-x: | 8.61 W |
| Certificate No. (cURus): | E60693 |
| Conductor size Factory wiring max. (cURus): | 0000 AWG |
| Current size C (cURus): | 325 A |
| Voltage size C (cURus): | 1000 V |
| ETIM 6.0: | EC000897 |
| ETIM 7.0: | EC000897 |
| eClass 9.0: | 27-14-11-20 |
| eClass 9.1: | 27-14-11-20 |
| eClass 10.0: | 27-14-11-20 |
| ROHS: | Conform |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.111 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
