Product
Weidmueller
1612430000
STV S 9 TS
Request a Quote

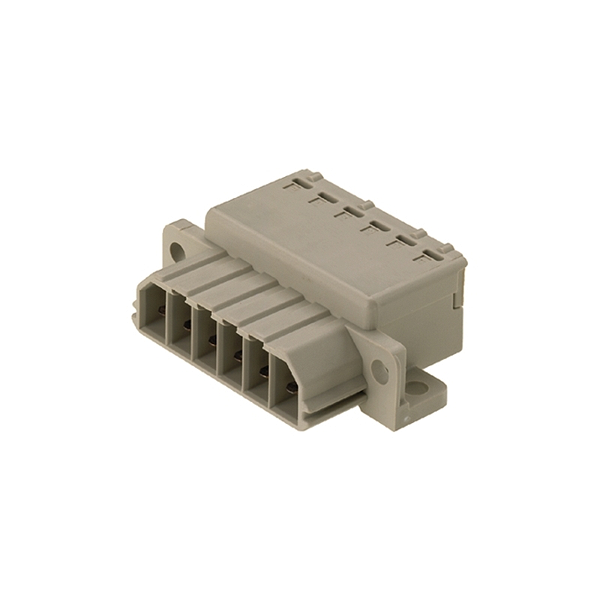

Image copyright: Weidmueller
Weidmueller 1612430000
STV S 9 TS
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Type: | STV S 9 TS |
| Order No.: | 1612430000 |
| Version: | PCB plug-in connector, male plug, 7.00 mm, Number of poles: 9, 180°, TOP connection, Clamping range, max. : 2.5 mm², Box |
| GTIN (EAN): | 4008190199159 |
| Qty.: | 10 pc(s). |
| Packaging: | Box |
| Height: | 22.6 mm |
| Height (inches): | 0.89 inch |
| Depth: | 40.8 mm |
| Depth (inches): | 1.606 inch |
| Net weight: | 72.9 g |
| Product family: | OMNIMATE Power - series STV |
| Type of connection: | Field connection |
| Wire connection method: | TOP connection |
| Pitch in mm (P): | 7 mm |
| Pitch in inches (P): | 0.276 inch |
| Conductor outlet direction: | 180° |
| Number of poles: | 9 |
| L1 in mm: | 56 mm |
| L1 in inches: | 2.205 inch |
| Number of rows: | 1 |
| Pin series quantity: | 1 |
| Touch-safe protection acc. to DIN VDE 57 106: | Safe from finger touch, plugged |
| Touch-safe protection acc. to DIN VDE 0470: | IP20 plugged |
| Stripping length: | 15 mm |
| Tightening torque, min.: | 0.5 Nm |
| Tightening torque, max.: | 0.6 Nm |
| Screwdriver blade: | 0.6 x 3.5 |
| Screwdriver blade standard: | DIN 5264 |
| Insulating material: | Wemid (PA) |
| Colour: | Pebble grey |
| Colour chart (similar): | RAL 7032 |
| Insulating material group: | I |
| Comparative Tracking Index (CTI): | ≥ 600 |
| UL 94 flammability rating: | V-0 |
| Contact material: | CuZn |
| Contact surface: | silver-plated |
| Operating temperature, min.: | -50 °C |
| Operating temperature, max.: | 100 °C |
| Temperature range, installation, min.: | -25 °C |
| Temperature range, installation, max.: | 100 °C |
| Clamping range, min.: | 0.32 mm² |
| Clamping range, max.: | 2.5 mm² |
| Wire connection cross section AWG, min.: | AWG 22 |
| Wire connection cross section AWG, max.: | AWG 12 |
| Solid, min. H05(07) V-U: | 0.5 mm² |
| Solid, max. H05(07) V-U: | 2.5 mm² |
| Flexible, min. H05(07) V-K: | 0.5 mm² |
| Flexible, max. H05(07) V-K: | 2.5 mm² |
| Plug gauge in accordance with EN 60999 a x b; ø: | 2.8 mm x 2.0 mm |
| Reference text: | The outside diameter of the plastic collar should not be larger than the pitch (P), Length of ferrules is to be chosen depending on the product and the rated voltage. |
| Max. clamping range: | 2.5 mm² |
| tested acc. to standard: | IEC 60664-1, IEC 61984 |
| Rated current, min. number of poles (Tu=20°C): | 24 A |
| Rated current, max. number of poles (Tu=20°C): | 22 A |
| Rated current, min. number of poles (Tu=40°C): | 20 A |
| Rated current, max. number of poles (Tu=40°C): | 19 A |
| Short-time withstand current resistance: | 1 x 1s with 300 A |
| Certificate No. (CSA): | 12400-343 |
| Rated voltage (Use group B / CSA): | 300 V |
| Rated voltage (Use group D / CSA): | 300 V |
| Rated current (Use group B / CSA): | 17 A |
| Rated current (Use group D / CSA): | 17 A |
| Wire cross-section, AWG, min.: | AWG 20 |
| Wire cross-section, AWG, max.: | AWG 14 |
| Reference to approval values: | Specifications are maximum values, details - see approval certificate. |
| Certificate No. (UR): | E92202 |
| Reference to approval values: | Specifications are maximum values, details - see approval certificate. |
| Certificate No. (UR): | E92202 |
| Reference to approval values: | Specifications are maximum values, details - see approval certificate. |
| Rated voltage (UL 1977): | 600 V |
| Rated current (UL 1977): | 17 A |
| AWG-conductor, min. (UL 1977): | 22 |
| AWG-conductor, max. (UL 1977): | 14 |
| Packaging: | Box |
| VPE length: | 50 mm |
| VPE width: | 135 mm |
| VPE height: | 200 mm |
| ETIM 6.0: | EC002638 |
| ETIM 7.0: | EC002638 |
| eClass 9.0: | 27-44-03-09 |
| eClass 9.1: | 27-44-03-09 |
| eClass 10.0: | 27-44-03-09 |
| UNSPSC: | 30-21-18-10 |
| IPC conformity: | Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request. |
| ROHS: | Conform |
| Type: | STV S 9 TS |
| Order No.: | 1612430000 |
| Version: | PCB plug-in connector, male plug, 7.00 mm, Number of poles: 9, 180°, TOP connection, Clamping range, max. : 2.5 mm², Box |
| GTIN (EAN): | 4008190199159 |
| Qty.: | 10 pc(s). |
| Packaging: | Box |
| Height: | 22.6 mm |
| Height (inches): | 0.89 inch |
| Depth: | 40.8 mm |
| Depth (inches): | 1.606 inch |
| Net weight: | 72.9 g |
| Product family: | OMNIMATE Power - series STV |
| Type of connection: | Field connection |
| Wire connection method: | TOP connection |
| Pitch in mm (P): | 7 mm |
| Pitch in inches (P): | 0.276 inch |
| Conductor outlet direction: | 180° |
| Number of poles: | 9 |
| L1 in mm: | 56 mm |
| L1 in inches: | 2.205 inch |
| Number of rows: | 1 |
| Pin series quantity: | 1 |
| Touch-safe protection acc. to DIN VDE 57 106: | Safe from finger touch, plugged |
| Touch-safe protection acc. to DIN VDE 0470: | IP20 plugged |
| Stripping length: | 15 mm |
| Tightening torque, min.: | 0.5 Nm |
| Tightening torque, max.: | 0.6 Nm |
| Screwdriver blade: | 0.6 x 3.5 |
| Screwdriver blade standard: | DIN 5264 |
| Insulating material: | Wemid (PA) |
| Colour: | Pebble grey |
| Colour chart (similar): | RAL 7032 |
| Insulating material group: | I |
| Comparative Tracking Index (CTI): | ≥ 600 |
| UL 94 flammability rating: | V-0 |
| Contact material: | CuZn |
| Contact surface: | silver-plated |
| Operating temperature, min.: | -50 °C |
| Operating temperature, max.: | 100 °C |
| Temperature range, installation, min.: | -25 °C |
| Temperature range, installation, max.: | 100 °C |
| Clamping range, min.: | 0.32 mm² |
| Clamping range, max.: | 2.5 mm² |
| Wire connection cross section AWG, min.: | AWG 22 |
| Wire connection cross section AWG, max.: | AWG 12 |
| Solid, min. H05(07) V-U: | 0.5 mm² |
| Solid, max. H05(07) V-U: | 2.5 mm² |
| Flexible, min. H05(07) V-K: | 0.5 mm² |
| Flexible, max. H05(07) V-K: | 2.5 mm² |
| Plug gauge in accordance with EN 60999 a x b; ø: | 2.8 mm x 2.0 mm |
| Reference text: | The outside diameter of the plastic collar should not be larger than the pitch (P), Length of ferrules is to be chosen depending on the product and the rated voltage. |
| Max. clamping range: | 2.5 mm² |
| tested acc. to standard: | IEC 60664-1, IEC 61984 |
| Rated current, min. number of poles (Tu=20°C): | 24 A |
| Rated current, max. number of poles (Tu=20°C): | 22 A |
| Rated current, min. number of poles (Tu=40°C): | 20 A |
| Rated current, max. number of poles (Tu=40°C): | 19 A |
| Short-time withstand current resistance: | 1 x 1s with 300 A |
| Certificate No. (CSA): | 12400-343 |
| Rated voltage (Use group B / CSA): | 300 V |
| Rated voltage (Use group D / CSA): | 300 V |
| Rated current (Use group B / CSA): | 17 A |
| Rated current (Use group D / CSA): | 17 A |
| Wire cross-section, AWG, min.: | AWG 20 |
| Wire cross-section, AWG, max.: | AWG 14 |
| Reference to approval values: | Specifications are maximum values, details - see approval certificate. |
| Certificate No. (UR): | E92202 |
| Reference to approval values: | Specifications are maximum values, details - see approval certificate. |
| Certificate No. (UR): | E92202 |
| Reference to approval values: | Specifications are maximum values, details - see approval certificate. |
| Rated voltage (UL 1977): | 600 V |
| Rated current (UL 1977): | 17 A |
| AWG-conductor, min. (UL 1977): | 22 |
| AWG-conductor, max. (UL 1977): | 14 |
| Packaging: | Box |
| VPE length: | 50 mm |
| VPE width: | 135 mm |
| VPE height: | 200 mm |
| ETIM 6.0: | EC002638 |
| ETIM 7.0: | EC002638 |
| eClass 9.0: | 27-44-03-09 |
| eClass 9.1: | 27-44-03-09 |
| eClass 10.0: | 27-44-03-09 |
| UNSPSC: | 30-21-18-10 |
| IPC conformity: | Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request. |
| ROHS: | Conform |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.073 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
