Product
Weidmueller
1594200000
SLA BB14 OR
Request a Quote
Image copyright: Weidmueller

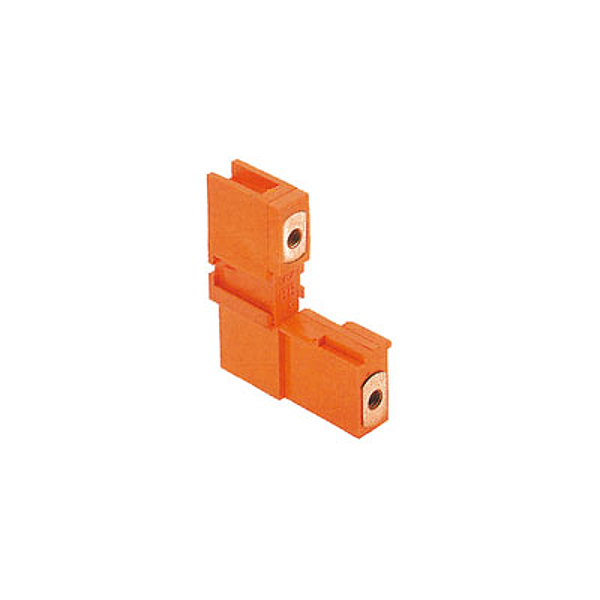

Weidmueller 1594200000
SLA BB14 OR
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Type: | SLA BB14 OR |
| Order No.: | 1594200000 |
| Version: | PCB plug-in connector, Accessories, Mounting block, orange, Number of poles: 1 |
| GTIN (EAN): | 4008190184988 |
| Qty.: | 20 pc(s). |
| Product data: | |
| Packaging: | Box |
| Net weight: | 2.86 g |
| REACH SVHC: | Lead 7439-92-1 |
| Insulating material: | PBT GF |
| Colour: | orange |
| Colour chart (similar): | RAL 2000 |
| Storage temperature, min.: | -40 °C |
| Storage temperature, max.: | 70 °C |
| Operating temperature, min.: | -50 °C |
| Operating temperature, max.: | 100 °C |
| Temperature range, installation, min.: | -25 °C |
| Temperature range, installation, max.: | 100 °C |
| tested acc. to standard: | IEC 60664-1, IEC 61984 |
| Packaging: | Box |
| VPE length: | 45 mm |
| VPE width: | 80 mm |
| VPE height: | 85 mm |
| ETIM 6.0: | EC002943 |
| ETIM 7.0: | EC002943 |
| eClass 9.0: | 27-44-04-92 |
| eClass 9.1: | 27-44-04-92 |
| eClass 10.0: | 27-44-04-92 |
| UNSPSC: | 30-21-18-01 |
| IPC conformity: | Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request. |
| ROHS: | Conform |
| Type: | SLA BB14 OR |
| Order No.: | 1594200000 |
| Version: | PCB plug-in connector, Accessories, Mounting block, orange, Number of poles: 1 |
| GTIN (EAN): | 4008190184988 |
| Qty.: | 20 pc(s). |
| Product data: | |
| Packaging: | Box |
| Net weight: | 2.86 g |
| REACH SVHC: | Lead 7439-92-1 |
| Insulating material: | PBT GF |
| Colour: | orange |
| Colour chart (similar): | RAL 2000 |
| Storage temperature, min.: | -40 °C |
| Storage temperature, max.: | 70 °C |
| Operating temperature, min.: | -50 °C |
| Operating temperature, max.: | 100 °C |
| Temperature range, installation, min.: | -25 °C |
| Temperature range, installation, max.: | 100 °C |
| tested acc. to standard: | IEC 60664-1, IEC 61984 |
| Packaging: | Box |
| VPE length: | 45 mm |
| VPE width: | 80 mm |
| VPE height: | 85 mm |
| ETIM 6.0: | EC002943 |
| ETIM 7.0: | EC002943 |
| eClass 9.0: | 27-44-04-92 |
| eClass 9.1: | 27-44-04-92 |
| eClass 10.0: | 27-44-04-92 |
| UNSPSC: | 30-21-18-01 |
| IPC conformity: | Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request. |
| ROHS: | Conform |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.004 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
