Weidmueller 1546060000
BVZ 7.62HP/10/180 SN BK BX SO
PCB plug-in connector, female plug, 7.62 mm, Number of poles: 10, 180°, Clamping yoke connection, Clamping range, max. : 10 mm², Box
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Type: | BVZ 7.62HP/10/180 SN BK BX SO |
| Order No.: | 1546060000 |
| Version: | PCB plug-in connector, female plug, 7.62 mm, Number of poles: 10, 180°, Clamping yoke connection, Clamping range, max. : 10 mm², Box |
| GTIN (EAN): | 4050118350692 |
| Qty.: | 20 pc(s). |
| Packaging: | Box |
| Net weight: | 53.599 g |
| Product family: | OMNIMATE Power - series BV/SV 7.62HP |
| Type of connection: | Field connection |
| Wire connection method: | Clamping yoke connection |
| Pitch in mm (P): | 7.62 mm |
| Pitch in inches (P): | 0.3 inch |
| Conductor outlet direction: | 180° |
| Number of poles: | 10 |
| L1 in mm: | 68.58 mm |
| L1 in inches: | 2.7 inch |
| Pin series quantity: | 1 |
| Rated cross-section: | 6 mm² |
| Tightening torque, min.: | 0.5 Nm |
| Tightening torque, max.: | 0.6 Nm |
| Clamping screw: | M 3 |
| Screwdriver blade: | 0.6 x 3.5 |
| Plugging cycles: | 25 |
| Plugging force/pole, max.: | 16.5 N |
| Pulling force/pole, max.: | 11 N |
| Colour: | black |
| Colour chart (similar): | RAL 9011 |
| Insulating material group: | II |
| Comparative Tracking Index (CTI): | ≥ 500 |
| GWFI: | 960 °C |
| Layer structure of plug contact: | 6...8 µm Sn glossy |
| Storage temperature, min.: | -25 °C |
| Storage temperature, max.: | 50 °C |
| Max. relative humidity during storage: | 70 % |
| Operating temperature, min.: | -50 °C |
| Operating temperature, max.: | 125 °C |
| Temperature range, installation, min.: | -25 °C |
| Temperature range, installation, max.: | 100 °C |
| Clamping range, min.: | 0.2 mm² |
| Clamping range, max.: | 10 mm² |
| Wire connection cross section AWG, min.: | AWG 24 |
| Wire connection cross section AWG, max.: | AWG 8 |
| Solid, min. H05(07) V-U: | 0.2 mm² |
| Solid, max. H05(07) V-U: | 6 mm² |
| Flexible, min. H05(07) V-K: | 0.5 mm² |
| Flexible, max. H05(07) V-K: | 10 mm² |
| w. plastic collar ferrule, DIN 46228 pt 4, min.: | 0.25 mm² |
| w. plastic collar ferrule, DIN 46228 pt 4, max.: | 6 mm² |
| w. wire end ferrule, DIN 46228 pt 1, min.: | 0.25 mm² |
| w. wire end ferrule, DIN 46228 pt 1, max.: | 6 mm² |
| Plug gauge in accordance with EN 60999 a x b; ø: | 2.8 mm x 2.0 mm; 2.4 mm |
| Type: | fine-wired |
| nominal: | 0.5 mm² |
| nominal: | 14 mm |
| Type: | fine-wired |
| nominal: | 1 mm² |
| nominal: | 15 mm |
| Type: | fine-wired |
| nominal: | 1.5 mm² |
| nominal: | 15 mm |
| nominal: | 12 mm |
| Type: | fine-wired |
| nominal: | 0.75 mm² |
| nominal: | 14 mm |
| Type: | fine-wired |
| nominal: | 2.5 mm² |
| nominal: | 14 mm |
| nominal: | 12 mm |
| Type: | fine-wired |
| nominal: | 4 mm² |
| nominal: | 12 mm |
| nominal: | 14 mm |
| Type: | fine-wired |
| nominal: | 6 mm² |
| nominal: | 14 mm |
| nominal: | 12 mm |
| Reference text: | The outside diameter of the plastic collar should not be larger than the pitch (P), Length of ferrules is to be chosen depending on the product and the rated voltage. |
| Max. clamping range: | 10 mm² |
| tested acc. to standard: | IEC 60664-1, IEC 61984 |

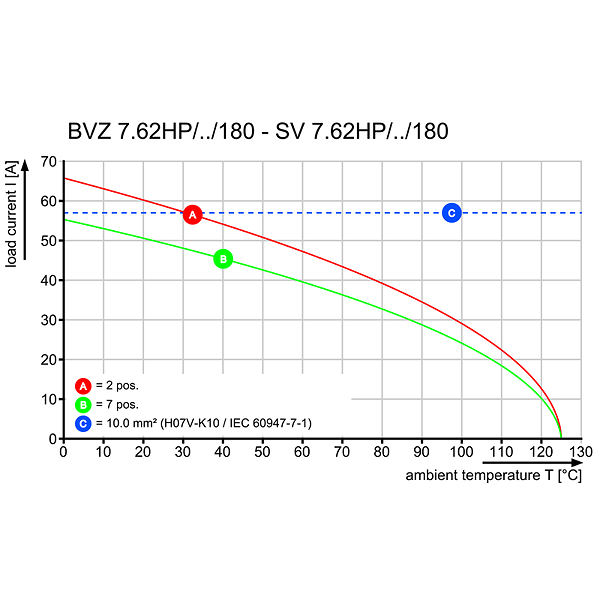

| Rated current, min. number of poles (Tu=20°C): | 57 A |
| Rated current, min. number of poles (Tu=40°C): | 41 A |
| Rated voltage for surge voltage class / pollution degree II/2: | 1,000 V |
| Rated voltage for surge voltage class / pollution degree III/2: | 1,000 V |
| Rated voltage for surge voltage class / pollution degree III/3: | 800 V |
| Rated impulse voltage for surge voltage class/ pollution degree II/2: | 6 kV |
| Rated impulse voltage for surge voltage class/ pollution degree III/2: | 8 kV |
| Rated impulse voltage for surge voltage class/ contamination degree III/3: | 8 kV |
| Short-time withstand current resistance: | 3 x 1s with 420 A |
| Clearance, min.: | 10.2 mm |
| Creepage distance, min.: | 13.8 mm |
| Rated voltage (Use group B / CSA): | 600 V |
| Rated voltage (Use group C / CSA): | 600 V |
| Rated voltage (Use group D / CSA): | 600 V |
| Rated current (Use group B / CSA): | 40.5 A |
| Rated current (Use group C / CSA): | 40.5 A |
| Rated current (Use group D / CSA): | 5 A |
| Wire cross-section, AWG, min.: | AWG 24 |
| Wire cross-section, AWG, max.: | AWG 8 |
| Certificate No. (cURus): | E60693 |
| Rated voltage (Use group B / UL 1059): | 600 V |
| Rated voltage (Use group C / UL 1059): | 600 V |
| Rated voltage (Use group D / UL 1059): | 600 V |
| Rated current (Use group B / UL 1059): | 40.5 A |
| Rated current (Use group C / UL 1059): | 40.5 A |
| Rated current (Use group D / UL 1059): | 5 A |
| Wire cross-section, AWG, min.: | AWG 24 |
| Wire cross-section, AWG, max.: | AWG 8 |
| Reference to approval values: | Specifications are maximum values, details - see approval certificate. |
| Packaging: | Box |
| VPE length: | 0 m |
| VPE width: | 0 m |
| VPE height: | 0 m |
| ETIM 6.0: | EC002638 |
| ETIM 7.0: | EC002638 |
| eClass 9.0: | 27-44-03-09 |
| eClass 9.1: | 27-44-03-09 |
| eClass 10.0: | 27-44-03-09 |
| IPC conformity: | Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request. |
| Type: | BVZ 7.62HP/10/180 SN BK BX SO |
| Order No.: | 1546060000 |
| Version: | PCB plug-in connector, female plug, 7.62 mm, Number of poles: 10, 180°, Clamping yoke connection, Clamping range, max. : 10 mm², Box |
| GTIN (EAN): | 4050118350692 |
| Qty.: | 20 pc(s). |
| Packaging: | Box |
| Net weight: | 53.599 g |
| Product family: | OMNIMATE Power - series BV/SV 7.62HP |
| Type of connection: | Field connection |
| Wire connection method: | Clamping yoke connection |
| Pitch in mm (P): | 7.62 mm |
| Pitch in inches (P): | 0.3 inch |
| Conductor outlet direction: | 180° |
| Number of poles: | 10 |
| L1 in mm: | 68.58 mm |
| L1 in inches: | 2.7 inch |
| Pin series quantity: | 1 |
| Rated cross-section: | 6 mm² |
| Tightening torque, min.: | 0.5 Nm |
| Tightening torque, max.: | 0.6 Nm |
| Clamping screw: | M 3 |
| Screwdriver blade: | 0.6 x 3.5 |
| Plugging cycles: | 25 |
| Plugging force/pole, max.: | 16.5 N |
| Pulling force/pole, max.: | 11 N |
| Colour: | black |
| Colour chart (similar): | RAL 9011 |
| Insulating material group: | II |
| Comparative Tracking Index (CTI): | ≥ 500 |
| GWFI: | 960 °C |
| Layer structure of plug contact: | 6...8 µm Sn glossy |
| Storage temperature, min.: | -25 °C |
| Storage temperature, max.: | 50 °C |
| Max. relative humidity during storage: | 70 % |
| Operating temperature, min.: | -50 °C |
| Operating temperature, max.: | 125 °C |
| Temperature range, installation, min.: | -25 °C |
| Temperature range, installation, max.: | 100 °C |
| Clamping range, min.: | 0.2 mm² |
| Clamping range, max.: | 10 mm² |
| Wire connection cross section AWG, min.: | AWG 24 |
| Wire connection cross section AWG, max.: | AWG 8 |
| Solid, min. H05(07) V-U: | 0.2 mm² |
| Solid, max. H05(07) V-U: | 6 mm² |
| Flexible, min. H05(07) V-K: | 0.5 mm² |
| Flexible, max. H05(07) V-K: | 10 mm² |
| w. plastic collar ferrule, DIN 46228 pt 4, min.: | 0.25 mm² |
| w. plastic collar ferrule, DIN 46228 pt 4, max.: | 6 mm² |
| w. wire end ferrule, DIN 46228 pt 1, min.: | 0.25 mm² |
| w. wire end ferrule, DIN 46228 pt 1, max.: | 6 mm² |
| Plug gauge in accordance with EN 60999 a x b; ø: | 2.8 mm x 2.0 mm; 2.4 mm |
| Type: | fine-wired |
| nominal: | 0.5 mm² |
| nominal: | 14 mm |
| Type: | fine-wired |
| nominal: | 1 mm² |
| nominal: | 15 mm |
| Type: | fine-wired |
| nominal: | 1.5 mm² |
| nominal: | 15 mm |
| nominal: | 12 mm |
| Type: | fine-wired |
| nominal: | 0.75 mm² |
| nominal: | 14 mm |
| Type: | fine-wired |
| nominal: | 2.5 mm² |
| nominal: | 14 mm |
| nominal: | 12 mm |
| Type: | fine-wired |
| nominal: | 4 mm² |
| nominal: | 12 mm |
| nominal: | 14 mm |
| Type: | fine-wired |
| nominal: | 6 mm² |
| nominal: | 14 mm |
| nominal: | 12 mm |
| Reference text: | The outside diameter of the plastic collar should not be larger than the pitch (P), Length of ferrules is to be chosen depending on the product and the rated voltage. |
| Max. clamping range: | 10 mm² |
| tested acc. to standard: | IEC 60664-1, IEC 61984 |
| Rated current, min. number of poles (Tu=20°C): | 57 A |
| Rated current, min. number of poles (Tu=40°C): | 41 A |
| Rated voltage for surge voltage class / pollution degree II/2: | 1,000 V |
| Rated voltage for surge voltage class / pollution degree III/2: | 1,000 V |
| Rated voltage for surge voltage class / pollution degree III/3: | 800 V |
| Rated impulse voltage for surge voltage class/ pollution degree II/2: | 6 kV |
| Rated impulse voltage for surge voltage class/ pollution degree III/2: | 8 kV |
| Rated impulse voltage for surge voltage class/ contamination degree III/3: | 8 kV |
| Short-time withstand current resistance: | 3 x 1s with 420 A |
| Clearance, min.: | 10.2 mm |
| Creepage distance, min.: | 13.8 mm |
| Rated voltage (Use group B / CSA): | 600 V |
| Rated voltage (Use group C / CSA): | 600 V |
| Rated voltage (Use group D / CSA): | 600 V |
| Rated current (Use group B / CSA): | 40.5 A |
| Rated current (Use group C / CSA): | 40.5 A |
| Rated current (Use group D / CSA): | 5 A |
| Wire cross-section, AWG, min.: | AWG 24 |
| Wire cross-section, AWG, max.: | AWG 8 |
| Certificate No. (cURus): | E60693 |
| Rated voltage (Use group B / UL 1059): | 600 V |
| Rated voltage (Use group C / UL 1059): | 600 V |
| Rated voltage (Use group D / UL 1059): | 600 V |
| Rated current (Use group B / UL 1059): | 40.5 A |
| Rated current (Use group C / UL 1059): | 40.5 A |
| Rated current (Use group D / UL 1059): | 5 A |
| Wire cross-section, AWG, min.: | AWG 24 |
| Wire cross-section, AWG, max.: | AWG 8 |
| Reference to approval values: | Specifications are maximum values, details - see approval certificate. |
| Packaging: | Box |
| VPE length: | 0 m |
| VPE width: | 0 m |
| VPE height: | 0 m |
| ETIM 6.0: | EC002638 |
| ETIM 7.0: | EC002638 |
| eClass 9.0: | 27-44-03-09 |
| eClass 9.1: | 27-44-03-09 |
| eClass 10.0: | 27-44-03-09 |
| IPC conformity: | Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request. |
