Product
Weidmueller
1534740000
POWERSTRIPPER AM 12
Request a Quote

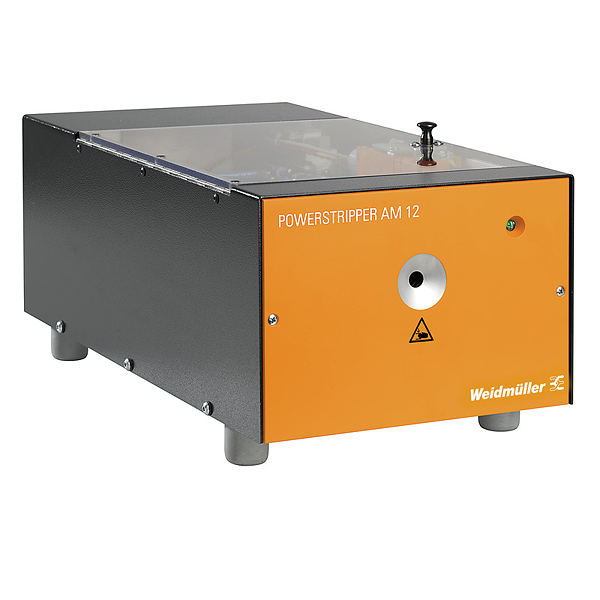

Image copyright: Weidmueller
Weidmueller 1534740000
POWERSTRIPPER AM 12
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Type: | POWERSTRIPPER AM 12 |
| Order No.: | 1534740000 |
| Version: | Automatic machines, Automatic stripper |
| GTIN (EAN): | 4050118338409 |
| Qty.: | 1 pc(s). |
| Width: | 254 mm |
| Width (inches): | 10 inch |
| Height: | 520 mm |
| Height (inches): | 20.472 inch |
| Depth: | 230 mm |
| Depth (inches): | 9.055 inch |
| Weight: | 17 kg |
| Net weight: | 17,000 g |
| REACH SVHC: | Lead 7439-92-1 |
| Electrical connection: | 100-240 V / 50/65 Hz |
| Compressed-air connection: | 5.5 bar |
| Drive: | Electropneumatic |
| Electrical connection: | 100-240 V / 50/65 Hz |
| Insertion length: | 80 mm |
| Max. dismantling area: | 11.9 |
| Max. dismantling length: | 120 |
| Min. dismantling area: | 3.5 mm |
| Min. dismantling length: | 25 |
| Pull-off length: | 20 - 120 mm |
| Pulse time: | approx. 3 s |
| ETIM 6.0: | EC002778 |
| ETIM 7.0: | EC002778 |
| eClass 9.0: | 17-13-01-01 |
| eClass 9.1: | 17-13-01-02 |
| eClass 10.0: | 17-13-01-02 |
| ROHS: | Conform |
| Type: | POWERSTRIPPER AM 12 |
| Order No.: | 1534740000 |
| Version: | Automatic machines, Automatic stripper |
| GTIN (EAN): | 4050118338409 |
| Qty.: | 1 pc(s). |
| Width: | 254 mm |
| Width (inches): | 10 inch |
| Height: | 520 mm |
| Height (inches): | 20.472 inch |
| Depth: | 230 mm |
| Depth (inches): | 9.055 inch |
| Weight: | 17 kg |
| Net weight: | 17,000 g |
| REACH SVHC: | Lead 7439-92-1 |
| Electrical connection: | 100-240 V / 50/65 Hz |
| Compressed-air connection: | 5.5 bar |
| Drive: | Electropneumatic |
| Electrical connection: | 100-240 V / 50/65 Hz |
| Insertion length: | 80 mm |
| Max. dismantling area: | 11.9 |
| Max. dismantling length: | 120 |
| Min. dismantling area: | 3.5 mm |
| Min. dismantling length: | 25 |
| Pull-off length: | 20 - 120 mm |
| Pulse time: | approx. 3 s |
| ETIM 6.0: | EC002778 |
| ETIM 7.0: | EC002778 |
| eClass 9.0: | 17-13-01-01 |
| eClass 9.1: | 17-13-01-02 |
| eClass 10.0: | 17-13-01-02 |
| ROHS: | Conform |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 19.32 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
