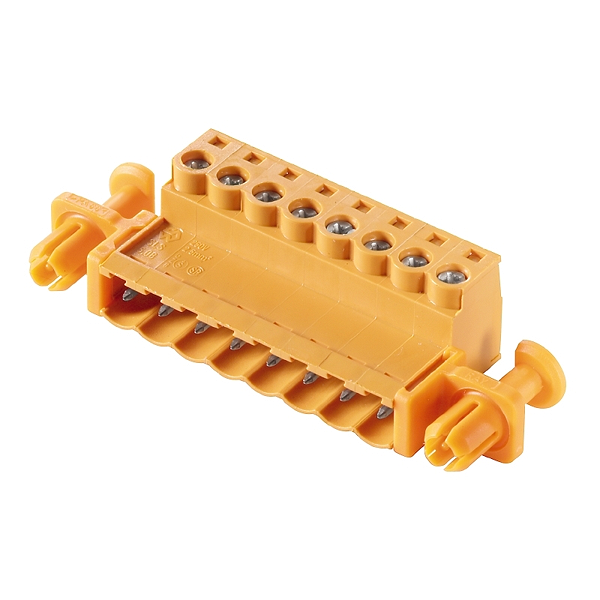

Weidmueller 1510940000
SLS 5.08/16/180DF SN OR BX
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Type: | SLS 5.08/16/180DF SN OR BX |
| Order No.: | 1510940000 |
| Version: | PCB plug-in connector, male plug, 5.08 mm, Number of poles: 16, 180°, Clamping yoke connection, Box |
| GTIN (EAN): | 4050118319910 |
| Qty.: | 12 pc(s). |
| Product data: | UL: |
| Packaging: | Box |
| Height: | 15.3 mm |
| Height (inches): | 0.602 inch |
| Depth: | 22.2 mm |
| Depth (inches): | 0.874 inch |
| Net weight: | 26.568 g |
| Product family: | OMNIMATE Signal - series BL/SL 5.08 |
| Type of connection: | Field connection |
| Wire connection method: | Clamping yoke connection |
| Pitch in mm (P): | 5.08 mm |
| Pitch in inches (P): | 0.2 inch |
| Conductor outlet direction: | 180° |
| Number of poles: | 16 |
| L1 in mm: | 76.2 mm |
| L1 in inches: | 3 inch |
| Pin series quantity: | 1 |
| Touch-safe protection acc. to DIN VDE 57 106: | finger-safe plugged/ back-of-hand-safe unplugged |
| Screwdriver blade: | 0.6 x 3.5 |
| Screwdriver blade standard: | DIN 5264-A |
| Plugging cycles: | 25 |
| Plugging force/pole, max.: | 4 N |
| Pulling force/pole, max.: | 3 N |
| Colour: | orange |
| Colour chart (similar): | RAL 2000 |
| Insulating material group: | IIIa |
| Comparative Tracking Index (CTI): | ≥ 200 |
| GWFI: | 960 °C |
| Contact material: | CuSn |
| Contact surface: | tinned |
| Layer structure of plug contact: | 4...8 µm Sn hot-dip tinned |
| Storage temperature, min.: | -25 °C |
| Storage temperature, max.: | 50 °C |
| Max. relative humidity during storage: | 70 % |
| Operating temperature, min.: | -50 °C |
| Operating temperature, max.: | 100 °C |
| Temperature range, installation, min.: | -25 °C |
| Temperature range, installation, max.: | 100 °C |
| Type: | fine-wired |
| nominal: | 0.5 mm² |
| nominal: | 6 mm |
| Type: | fine-wired |
| nominal: | 1 mm² |
| nominal: | 6 mm |
| Type: | fine-wired |
| nominal: | 1.5 mm² |
| nominal: | 7 mm |
| Type: | fine-wired |
| nominal: | 2.5 mm² |
| nominal: | 7 mm |
| Type: | fine-wired |
| nominal: | 0.75 mm² |
| nominal: | 6 mm |
| Reference text: | The outside diameter of the plastic collar should not be larger than the pitch (P), Length of ferrules is to be chosen depending on the product and the rated voltage. |
| tested acc. to standard: | IEC 60664-1, IEC 61984 |
| Certificate No. (UR): | E60693 |
| Reference to approval values: | Specifications are maximum values, details - see approval certificate. |
| Packaging: | Box |
| VPE length: | 0 |
| VPE width: | 0 |
| VPE height: | 0 |
| Standard: | VDE 0627 Tab. 7 item 3/6.86 |
| Test: | durability |
| Evaluation: | passed |
| Standard: | VDE 0609 part 1 06.83, EN 60947-1 03.91 |
| Type of conductor and conductor cross-section: | H05V-U0.5 |
| Type of conductor and conductor cross-section: | H05V-K0.5 |
| Type of conductor and conductor cross-section: | H05V-U2.5 |
| Type of conductor and conductor cross-section: | H05V-K2.5 |
| Type of conductor and conductor cross-section: | AWG 28 |
| Type of conductor and conductor cross-section: | AWG 14 |
| Evaluation: | passed |
| Standard: | EN 60947-1/1991 section 8.2.4.3 |
| Requirement: | 0.3 kg |
| Type of conductor and conductor cross-section: | H05V-U0.5 |
| Type of conductor and conductor cross-section: | H05V-K0.5 |
| Evaluation: | passed |
| Requirement: | 0.7 kg |
| Type of conductor and conductor cross-section: | H07V-U2.5 |
| Type of conductor and conductor cross-section: | H07V-K2.5 |
| Evaluation: | passed |
| Standard: | EN 60947-1/1991 section 8.2.4.4 |
| Requirement: | ≥5 N |
| Type of conductor and conductor cross-section: | AWG 28/1 |
| Type of conductor and conductor cross-section: | AWG 28/7 |
| Evaluation: | passed |
| Requirement: | ≥50 N |
| Type of conductor and conductor cross-section: | H07V-U2.5 |
| Type of conductor and conductor cross-section: | H07V-K2.5 |
| Type of conductor and conductor cross-section: | AWG 14/19 |
| Evaluation: | passed |
| ETIM 6.0: | EC002638 |
| ETIM 7.0: | EC002638 |
| eClass 9.0: | 27-44-03-09 |
| eClass 9.1: | 27-44-03-09 |
| eClass 10.0: | 27-44-03-09 |
| IPC conformity: | Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request. |
| ROHS: | Conform |
| Type: | SLS 5.08/16/180DF SN OR BX |
| Order No.: | 1510940000 |
| Version: | PCB plug-in connector, male plug, 5.08 mm, Number of poles: 16, 180°, Clamping yoke connection, Box |
| GTIN (EAN): | 4050118319910 |
| Qty.: | 12 pc(s). |
| Product data: | UL: |
| Packaging: | Box |
| Height: | 15.3 mm |
| Height (inches): | 0.602 inch |
| Depth: | 22.2 mm |
| Depth (inches): | 0.874 inch |
| Net weight: | 26.568 g |
| Product family: | OMNIMATE Signal - series BL/SL 5.08 |
| Type of connection: | Field connection |
| Wire connection method: | Clamping yoke connection |
| Pitch in mm (P): | 5.08 mm |
| Pitch in inches (P): | 0.2 inch |
| Conductor outlet direction: | 180° |
| Number of poles: | 16 |
| L1 in mm: | 76.2 mm |
| L1 in inches: | 3 inch |
| Pin series quantity: | 1 |
| Touch-safe protection acc. to DIN VDE 57 106: | finger-safe plugged/ back-of-hand-safe unplugged |
| Screwdriver blade: | 0.6 x 3.5 |
| Screwdriver blade standard: | DIN 5264-A |
| Plugging cycles: | 25 |
| Plugging force/pole, max.: | 4 N |
| Pulling force/pole, max.: | 3 N |
| Colour: | orange |
| Colour chart (similar): | RAL 2000 |
| Insulating material group: | IIIa |
| Comparative Tracking Index (CTI): | ≥ 200 |
| GWFI: | 960 °C |
| Contact material: | CuSn |
| Contact surface: | tinned |
| Layer structure of plug contact: | 4...8 µm Sn hot-dip tinned |
| Storage temperature, min.: | -25 °C |
| Storage temperature, max.: | 50 °C |
| Max. relative humidity during storage: | 70 % |
| Operating temperature, min.: | -50 °C |
| Operating temperature, max.: | 100 °C |
| Temperature range, installation, min.: | -25 °C |
| Temperature range, installation, max.: | 100 °C |
| Type: | fine-wired |
| nominal: | 0.5 mm² |
| nominal: | 6 mm |
| Type: | fine-wired |
| nominal: | 1 mm² |
| nominal: | 6 mm |
| Type: | fine-wired |
| nominal: | 1.5 mm² |
| nominal: | 7 mm |
| Type: | fine-wired |
| nominal: | 2.5 mm² |
| nominal: | 7 mm |
| Type: | fine-wired |
| nominal: | 0.75 mm² |
| nominal: | 6 mm |
| Reference text: | The outside diameter of the plastic collar should not be larger than the pitch (P), Length of ferrules is to be chosen depending on the product and the rated voltage. |
| tested acc. to standard: | IEC 60664-1, IEC 61984 |
| Certificate No. (UR): | E60693 |
| Reference to approval values: | Specifications are maximum values, details - see approval certificate. |
| Packaging: | Box |
| VPE length: | 0 |
| VPE width: | 0 |
| VPE height: | 0 |
| Standard: | VDE 0627 Tab. 7 item 3/6.86 |
| Test: | durability |
| Evaluation: | passed |
| Standard: | VDE 0609 part 1 06.83, EN 60947-1 03.91 |
| Type of conductor and conductor cross-section: | H05V-U0.5 |
| Type of conductor and conductor cross-section: | H05V-K0.5 |
| Type of conductor and conductor cross-section: | H05V-U2.5 |
| Type of conductor and conductor cross-section: | H05V-K2.5 |
| Type of conductor and conductor cross-section: | AWG 28 |
| Type of conductor and conductor cross-section: | AWG 14 |
| Evaluation: | passed |
| Standard: | EN 60947-1/1991 section 8.2.4.3 |
| Requirement: | 0.3 kg |
| Type of conductor and conductor cross-section: | H05V-U0.5 |
| Type of conductor and conductor cross-section: | H05V-K0.5 |
| Evaluation: | passed |
| Requirement: | 0.7 kg |
| Type of conductor and conductor cross-section: | H07V-U2.5 |
| Type of conductor and conductor cross-section: | H07V-K2.5 |
| Evaluation: | passed |
| Standard: | EN 60947-1/1991 section 8.2.4.4 |
| Requirement: | ≥5 N |
| Type of conductor and conductor cross-section: | AWG 28/1 |
| Type of conductor and conductor cross-section: | AWG 28/7 |
| Evaluation: | passed |
| Requirement: | ≥50 N |
| Type of conductor and conductor cross-section: | H07V-U2.5 |
| Type of conductor and conductor cross-section: | H07V-K2.5 |
| Type of conductor and conductor cross-section: | AWG 14/19 |
| Evaluation: | passed |
| ETIM 6.0: | EC002638 |
| ETIM 7.0: | EC002638 |
| eClass 9.0: | 27-44-03-09 |
| eClass 9.1: | 27-44-03-09 |
| eClass 10.0: | 27-44-03-09 |
| IPC conformity: | Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request. |
| ROHS: | Conform |
