Product
Weidmueller
1495160000
LPA SI STI4.5 OR
Request a Quote

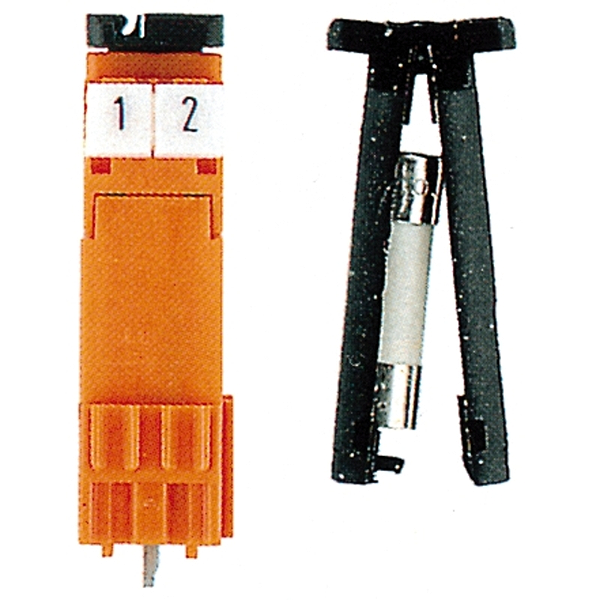

Image copyright: Weidmueller
Weidmueller 1495160000
LPA SI STI4.5 OR
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Type: | LPA SI STI4.5 OR |
| Order No.: | 1495160000 |
| Version: | Printed circuit board terminals, Accessories, Fuse cartridge, orange, Number of poles: 1 |
| GTIN (EAN): | 4008190153359 |
| Qty.: | 50 pc(s). |
| Packaging: | Box |
| Net weight: | 6.5 g |
| Mounting onto the PCB: | THT solder connection |
| Pitch in mm (P): | 10.16 mm |
| Pitch in inches (P): | 0.4 inch |
| Number of poles: | 1 |
| Fitted by customer: | Yes |
| Number of rows: | 1 |
| Max. adjacent poles per row: | 12 |
| Solder pin length (l): | 4.5 mm |
| Solder eyelet hole diameter (D): | 1.3 mm |
| Solder eyelet hole diameter tolerance (D): | + 0,1 mm |
| Number of solder pins per pole: | 2 |
| L1 in inches: | 0.4 inch |
| Touch-safe protection acc. to DIN VDE 0470: | IP 20 |
| Volume resistance: | 2.60 mΩ |
| Insulating material: | PA |
| Colour: | orange |
| Colour chart (similar): | RAL 2000 |
| Insulating material group: | I |
| Comparative Tracking Index (CTI): | ≥ 600 |
| UL 94 flammability rating: | V-2 |
| Contact material: | Copper alloy |
| Contact surface: | tinned |
| Storage temperature, min.: | -25 °C |
| Storage temperature, max.: | 50 °C |
| Max. relative humidity during storage: | 70 % |
| Operating temperature, min.: | -50 °C |
| Operating temperature, max.: | 100 °C |
| Temperature range, installation, min.: | -25 °C |
| Temperature range, installation, max.: | 100 °C |
| Reference text: | Length of ferrules is to be chosen depending on the product and the rated voltage., The outside diameter of the plastic collar should not be larger than the pitch (P) |
| tested acc. to standard: | IEC 60664-1, IEC 61984 |
| Rated current, min. number of poles (Tu=20°C): | 6.3 A |
| Rated voltage for surge voltage class / pollution degree II/2: | 500 V |
| Rated voltage for surge voltage class / pollution degree III/2: | 250 V |
| Rated voltage for surge voltage class / pollution degree III/3: | 250 V |
| Certificate No. (CSA): | 12400-266 |
| Rated voltage (Use group D / CSA): | 300 V |
| Rated current (Use group D / CSA): | 10 A |
| Reference to approval values: | Specifications are maximum values, details - see approval certificate. |
| Certificate No. (UR): | E60693 |
| Rated voltage (Use group D / UL 1059): | 300 V |
| Rated current (Use group D / UL 1059): | 10 A |
| Reference to approval values: | Specifications are maximum values, details - see approval certificate. |
| Packaging: | Box |
| VPE length: | 51 mm |
| VPE width: | 77 mm |
| VPE height: | 192 mm |
| ETIM 6.0: | EC002848 |
| ETIM 7.0: | EC002848 |
| eClass 9.0: | 27-44-04-92 |
| eClass 9.1: | 27-44-04-92 |
| eClass 10.0: | 27-44-04-92 |
| UNSPSC: | 30-21-18-01 |
| IPC conformity: | Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request. |
| ROHS: | Conform |
| Type: | LPA SI STI4.5 OR |
| Order No.: | 1495160000 |
| Version: | Printed circuit board terminals, Accessories, Fuse cartridge, orange, Number of poles: 1 |
| GTIN (EAN): | 4008190153359 |
| Qty.: | 50 pc(s). |
| Packaging: | Box |
| Net weight: | 6.5 g |
| Mounting onto the PCB: | THT solder connection |
| Pitch in mm (P): | 10.16 mm |
| Pitch in inches (P): | 0.4 inch |
| Number of poles: | 1 |
| Fitted by customer: | Yes |
| Number of rows: | 1 |
| Max. adjacent poles per row: | 12 |
| Solder pin length (l): | 4.5 mm |
| Solder eyelet hole diameter (D): | 1.3 mm |
| Solder eyelet hole diameter tolerance (D): | + 0,1 mm |
| Number of solder pins per pole: | 2 |
| L1 in inches: | 0.4 inch |
| Touch-safe protection acc. to DIN VDE 0470: | IP 20 |
| Volume resistance: | 2.60 mΩ |
| Insulating material: | PA |
| Colour: | orange |
| Colour chart (similar): | RAL 2000 |
| Insulating material group: | I |
| Comparative Tracking Index (CTI): | ≥ 600 |
| UL 94 flammability rating: | V-2 |
| Contact material: | Copper alloy |
| Contact surface: | tinned |
| Storage temperature, min.: | -25 °C |
| Storage temperature, max.: | 50 °C |
| Max. relative humidity during storage: | 70 % |
| Operating temperature, min.: | -50 °C |
| Operating temperature, max.: | 100 °C |
| Temperature range, installation, min.: | -25 °C |
| Temperature range, installation, max.: | 100 °C |
| Reference text: | Length of ferrules is to be chosen depending on the product and the rated voltage., The outside diameter of the plastic collar should not be larger than the pitch (P) |
| tested acc. to standard: | IEC 60664-1, IEC 61984 |
| Rated current, min. number of poles (Tu=20°C): | 6.3 A |
| Rated voltage for surge voltage class / pollution degree II/2: | 500 V |
| Rated voltage for surge voltage class / pollution degree III/2: | 250 V |
| Rated voltage for surge voltage class / pollution degree III/3: | 250 V |
| Certificate No. (CSA): | 12400-266 |
| Rated voltage (Use group D / CSA): | 300 V |
| Rated current (Use group D / CSA): | 10 A |
| Reference to approval values: | Specifications are maximum values, details - see approval certificate. |
| Certificate No. (UR): | E60693 |
| Rated voltage (Use group D / UL 1059): | 300 V |
| Rated current (Use group D / UL 1059): | 10 A |
| Reference to approval values: | Specifications are maximum values, details - see approval certificate. |
| Packaging: | Box |
| VPE length: | 51 mm |
| VPE width: | 77 mm |
| VPE height: | 192 mm |
| ETIM 6.0: | EC002848 |
| ETIM 7.0: | EC002848 |
| eClass 9.0: | 27-44-04-92 |
| eClass 9.1: | 27-44-04-92 |
| eClass 10.0: | 27-44-04-92 |
| UNSPSC: | 30-21-18-01 |
| IPC conformity: | Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request. |
| ROHS: | Conform |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.007 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
