Product
Weidmueller
1457580005
IE-C6EL8UG0005U40XCS-E
Request a Quote

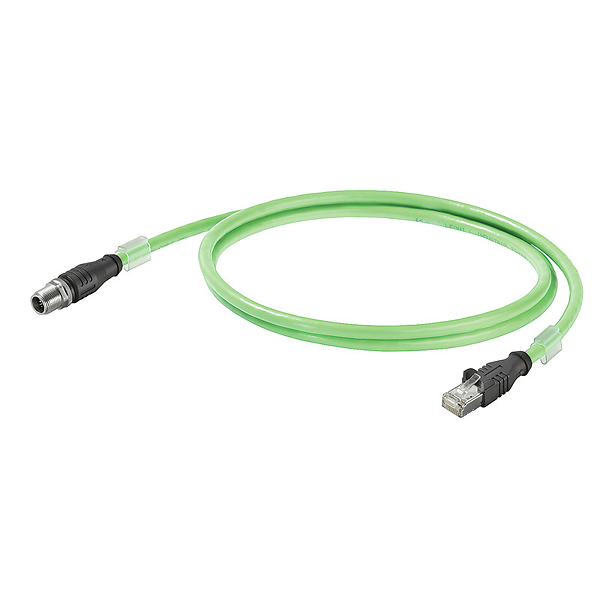

Image copyright: Weidmueller
Weidmueller 1457580005
IE-C6EL8UG0005U40XCS-E
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Type: | IE-C6EL8UG0005U40XCS-E |
| Order No.: | 1457580005 |
| GTIN (EAN): | 4050118628678 |
| Qty.: | 1 pc(s). |
| Length: | 0.5 m |
| Length (inches): | 0.02 inch |
| Net weight: | 50 g |
| Insulation cross-section: | 0.98 mm |
| Operating temperature, max.: | 80 °C |
| Operating temperature, min.: | -40 °C |
| Storage temperature, max.: | 80 °C |
| Storage temperature, min.: | -40 °C |
| Operating temperature: | -40 °C...80 °C |
| Storage temperature: | -40 °C...80 °C |
| Installation temperature: | -20 °C...60 °C |
| REACH SVHC: | Lead 7439-92-1 |
| Impervious to smoke: | According to IEC 61034 |
| Standard, assembly: | UL Style 20963 |
| Copper diameter: | 0.48 µm |
| Wiring: | EIA/TIA T568 B |
| Wire material: | Stranded tin-plated copper wire |
| Standard designations: | S/FTP, LIO2YSC11Y 4x2x0.15 PIMF FRNC GN |
| Strands: | 7 |
| Cross-section: | 4*2*AWG 26/7 - 4*2*0.128 mm² |
| Insulation: | PE |
| Insulation cross-section: | 0.98 mm |
| Number of wires: | 8 |
| Arrangement of wire cores: | Twisted pair |
| Wire pair shielding: | Aluminium foil |
| Colour sequence or wires - wire pairs: | white - blue, white - orange, white - green, white - brown |
| Shielding: | S/FTP |
| Complete shielding: | Shielding braid made from copper wiring |
| Shielding braid thickness: | 0.1 mm |
| Material sheath: | PUR |
| Sheath diameter, min.: | 6.1 mm |
| Sheath diameter, max.: | 6.7 mm |
| Sheathing colour: | green (RAL 6018) |
| Characteristic impedance: | 100 ± 5 Ω at 100MHz |
| Loop resistance: | 290 Ω/km |
| Transfer impedance: | 15 mΩ/m at 1 MHz, 10 mΩ/m at 10 MHz, 30 mΩ/m at 30 MHz |
| Signal propagation time: | 5.2 ns/m |
| Min. bending radius, once only: | 5 x cable diameter |
| Min. bending radius, repetitive: | 10 x cable diameter |
| Abrasion resistance: | very good |
| Resistance to spread of flame: | in accordance with IEC 60332-1-2 |
| Resistance to oils: | in accordance with IEC 60811-2-1 |
| Halogen: | halogen-free, according to IEC 60754-1 |
| Impervious to smoke: | According to IEC 61034 |
| Connector left: | RJ45 IP 20 |
| Connector right: | M12 X-type IP 67 straight male |
| ETIM 6.0: | EC002599 |
| ETIM 7.0: | EC002599 |
| eClass 9.0: | 27-06-03-08 |
| eClass 9.1: | 27-06-03-08 |
| eClass 10.0: | 27-06-03-08 |
| ROHS: | Conform |
| Type: | IE-C6EL8UG0005U40XCS-E |
| Order No.: | 1457580005 |
| GTIN (EAN): | 4050118628678 |
| Qty.: | 1 pc(s). |
| Length: | 0.5 m |
| Length (inches): | 0.02 inch |
| Net weight: | 50 g |
| Insulation cross-section: | 0.98 mm |
| Operating temperature, max.: | 80 °C |
| Operating temperature, min.: | -40 °C |
| Storage temperature, max.: | 80 °C |
| Storage temperature, min.: | -40 °C |
| Operating temperature: | -40 °C...80 °C |
| Storage temperature: | -40 °C...80 °C |
| Installation temperature: | -20 °C...60 °C |
| REACH SVHC: | Lead 7439-92-1 |
| Impervious to smoke: | According to IEC 61034 |
| Standard, assembly: | UL Style 20963 |
| Copper diameter: | 0.48 µm |
| Wiring: | EIA/TIA T568 B |
| Wire material: | Stranded tin-plated copper wire |
| Standard designations: | S/FTP, LIO2YSC11Y 4x2x0.15 PIMF FRNC GN |
| Strands: | 7 |
| Cross-section: | 4*2*AWG 26/7 - 4*2*0.128 mm² |
| Insulation: | PE |
| Insulation cross-section: | 0.98 mm |
| Number of wires: | 8 |
| Arrangement of wire cores: | Twisted pair |
| Wire pair shielding: | Aluminium foil |
| Colour sequence or wires - wire pairs: | white - blue, white - orange, white - green, white - brown |
| Shielding: | S/FTP |
| Complete shielding: | Shielding braid made from copper wiring |
| Shielding braid thickness: | 0.1 mm |
| Material sheath: | PUR |
| Sheath diameter, min.: | 6.1 mm |
| Sheath diameter, max.: | 6.7 mm |
| Sheathing colour: | green (RAL 6018) |
| Characteristic impedance: | 100 ± 5 Ω at 100MHz |
| Loop resistance: | 290 Ω/km |
| Transfer impedance: | 15 mΩ/m at 1 MHz, 10 mΩ/m at 10 MHz, 30 mΩ/m at 30 MHz |
| Signal propagation time: | 5.2 ns/m |
| Min. bending radius, once only: | 5 x cable diameter |
| Min. bending radius, repetitive: | 10 x cable diameter |
| Abrasion resistance: | very good |
| Resistance to spread of flame: | in accordance with IEC 60332-1-2 |
| Resistance to oils: | in accordance with IEC 60811-2-1 |
| Halogen: | halogen-free, according to IEC 60754-1 |
| Impervious to smoke: | According to IEC 61034 |
| Connector left: | RJ45 IP 20 |
| Connector right: | M12 X-type IP 67 straight male |
| ETIM 6.0: | EC002599 |
| ETIM 7.0: | EC002599 |
| eClass 9.0: | 27-06-03-08 |
| eClass 9.1: | 27-06-03-08 |
| eClass 10.0: | 27-06-03-08 |
| ROHS: | Conform |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.051 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
