1334990000

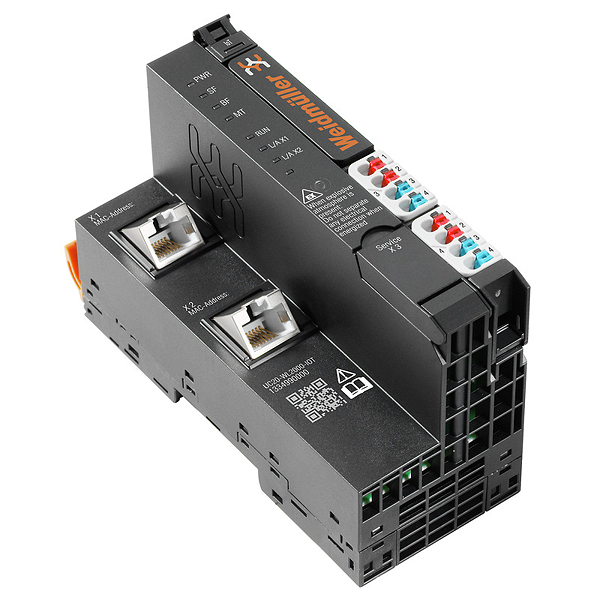

UC20-WL2000-IOT
Type: | UC20-WL2000-IOT |
Order No.: | 1334990000 |
Version: | Controller, IP20, u-control 2000 web, IoT Controller, Web-based, incl. Engineering Tool u-create IoT (node red) |
GTIN (EAN): | 4050118138290 |
Qty.: | 1 pc(s). |
Width: | 52 |
Width (inches): | 2.047 inch |
Height: | 120 mm |
Height (inches): | 4.724 inch |
Depth: | 76 mm |
Depth (inches): | 2.992 inch |
Mounting dimension - height: | 128 mm |
Net weight: | 232 g |
Operating temperature, max.: | 55 °C |
Operating temperature, min.: | -20 °C |
Type of connection: | PUSH IN |
UL 94 flammability rating: | V-0 |
Current consumption from IIN (power segment of the field bus coupler), typ.: | 116 mA |
Feed current for IIN (input current path) , max.: | 5 A |
Feed current for IOUT (output current path) , max.: | 5 A |
Feed current for the system, max.: | 4,000 mA |
Supply voltage for outputs: | 24 V DC +20 %/ -15 % |
Supply voltage system and inputs: | 24 V DC +20 %/ -15 % |
Configuration interface: | Micro USB 2.0 |
Connection type: | 2 x RJ45 plug-in connectors |
Interface: | 2x Ethernet TCP/IP, 1x Micro USB |
Memory (Flash): | 4 GB, 32 GB via microSD |
Module type: | Controller |
Processor: | Dual Core ARM Cortex A9, 624 MHz, 512 Mbyte RAM |
Real-time clock: | Battery buffered |
Transmission speed backplane bus, max.: | 48 Mbit |
max. number of modules: | 64 |
ETIM 6.0: | EC001603 |
ETIM 7.0: | EC001603 |
eClass 9.1: | 27-24-26-08 |
eClass 10.0: | 27-24-26-07 |
ROHS: | Conform |
Type: | UC20-WL2000-IOT |
Order No.: | 1334990000 |
Version: | Controller, IP20, u-control 2000 web, IoT Controller, Web-based, incl. Engineering Tool u-create IoT (node red) |
GTIN (EAN): | 4050118138290 |
Qty.: | 1 pc(s). |
Width: | 52 |
Width (inches): | 2.047 inch |
Height: | 120 mm |
Height (inches): | 4.724 inch |
Depth: | 76 mm |
Depth (inches): | 2.992 inch |
Mounting dimension - height: | 128 mm |
Net weight: | 232 g |
Operating temperature, max.: | 55 °C |
Operating temperature, min.: | -20 °C |
Type of connection: | PUSH IN |
UL 94 flammability rating: | V-0 |
Current consumption from IIN (power segment of the field bus coupler), typ.: | 116 mA |
Feed current for IIN (input current path) , max.: | 5 A |
Feed current for IOUT (output current path) , max.: | 5 A |
Feed current for the system, max.: | 4,000 mA |
Supply voltage for outputs: | 24 V DC +20 %/ -15 % |
Supply voltage system and inputs: | 24 V DC +20 %/ -15 % |
Configuration interface: | Micro USB 2.0 |
Connection type: | 2 x RJ45 plug-in connectors |
Interface: | 2x Ethernet TCP/IP, 1x Micro USB |
Memory (Flash): | 4 GB, 32 GB via microSD |
Module type: | Controller |
Processor: | Dual Core ARM Cortex A9, 624 MHz, 512 Mbyte RAM |
Real-time clock: | Battery buffered |
Transmission speed backplane bus, max.: | 48 Mbit |
max. number of modules: | 64 |
ETIM 6.0: | EC001603 |
ETIM 7.0: | EC001603 |
eClass 9.1: | 27-24-26-08 |
eClass 10.0: | 27-24-26-07 |
ROHS: | Conform |
ECCN: | |
Country of Origin: | |
EAN: | |
Weight: | 0.328 kg |
Length: | 0.00 m |
Width: | 0.00 m |
Height: | 0.00 m |
