Product
Weidmueller
1279463000
SAIL-M12GM12G-8S30U
Request a Quote

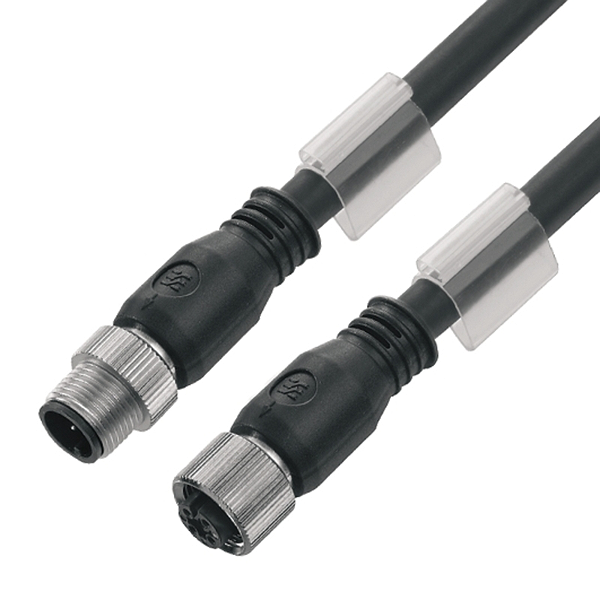

Image copyright: Weidmueller
Weidmueller 1279463000
SAIL-M12GM12G-8S30U
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Type: | SAIL-M12GM12G-8S30U |
| Order No.: | 1279463000 |
| Version: | Sensor/actuator line, Connecting line, M12 / M12, Number of poles : 8, 30 m, Shielded: Yes, LED: No, Sheath material: PUR, Halogen: No |
| GTIN (EAN): | 4050118623437 |
| Qty.: | 1 pc(s). |
| Net weight: | 1,737 g |
| REACH SVHC: | Lead 7439-92-1 |
| Number of poles: | 8 |
| Core cross-section: | 0.25 mm² |
| Outside diameter: | 6.3 mm ± 0.2 mm |
| Cable length: | 30 m |
| Shielded: | Yes |
| Insulation: | PP |
| Colour coding: | blue, red, white, brown, green, yellow, grey, pink |
| Sheath material: | PUR |
| Sheathing colour: | black |
| Halogen: | No |
| Temperature range, moving: | -25...80 °C |
| Temperature range, stationary: | -40...80 °C |
| Outer cladding in accordance with UL AWM style: | 20549 (80 °C / 300 V) |
| Suitable for cable carriers: | Yes |
| Torsion resistance: | 360 °/m |
| Bending radius, min., stationary: | 5 x cable diameter |
| Bending radius, min., moving: | 12 x cable diameter |
| Acceleration: | 5 m/s² |
| Speed: | 100 m/min |
| Bending cycles: | 1 mill. |
| Resistant to welding beads: | No |
| Configurable cable length: | No |
| Connection thread: | M12 / M12 |
| Housing main material: | PUR |
| Threaded ring material: | Brass, nickel-plated |
| Coding: | A |
| Protection degree: | IP67, when screwed in |
| Contact surface: | Gold-plated |
| LED: | No |
| Rated voltage: | 30 V |
| Rated current: | 2 A |
| Temperature range of housing: | -25…+80 °C |
| Tightening torque: | M12: 0.8 - 1.2 Nm |
| Plugging cycles: | ≥ 100 |
| Pollution severity: | 3 |
| jumpered: | No |
| Certificate no. (cULus): | E307231 |
| ETIM 6.0: | EC001855 |
| ETIM 7.0: | EC001855 |
| eClass 9.0: | 27-06-03-11 |
| eClass 9.1: | 27-06-03-11 |
| eClass 10.0: | 27-06-03-11 |
| ROHS: | Conform |
| Type: | SAIL-M12GM12G-8S30U |
| Order No.: | 1279463000 |
| Version: | Sensor/actuator line, Connecting line, M12 / M12, Number of poles : 8, 30 m, Shielded: Yes, LED: No, Sheath material: PUR, Halogen: No |
| GTIN (EAN): | 4050118623437 |
| Qty.: | 1 pc(s). |
| Net weight: | 1,737 g |
| REACH SVHC: | Lead 7439-92-1 |
| Number of poles: | 8 |
| Core cross-section: | 0.25 mm² |
| Outside diameter: | 6.3 mm ± 0.2 mm |
| Cable length: | 30 m |
| Shielded: | Yes |
| Insulation: | PP |
| Colour coding: | blue, red, white, brown, green, yellow, grey, pink |
| Sheath material: | PUR |
| Sheathing colour: | black |
| Halogen: | No |
| Temperature range, moving: | -25...80 °C |
| Temperature range, stationary: | -40...80 °C |
| Outer cladding in accordance with UL AWM style: | 20549 (80 °C / 300 V) |
| Suitable for cable carriers: | Yes |
| Torsion resistance: | 360 °/m |
| Bending radius, min., stationary: | 5 x cable diameter |
| Bending radius, min., moving: | 12 x cable diameter |
| Acceleration: | 5 m/s² |
| Speed: | 100 m/min |
| Bending cycles: | 1 mill. |
| Resistant to welding beads: | No |
| Configurable cable length: | No |
| Connection thread: | M12 / M12 |
| Housing main material: | PUR |
| Threaded ring material: | Brass, nickel-plated |
| Coding: | A |
| Protection degree: | IP67, when screwed in |
| Contact surface: | Gold-plated |
| LED: | No |
| Rated voltage: | 30 V |
| Rated current: | 2 A |
| Temperature range of housing: | -25…+80 °C |
| Tightening torque: | M12: 0.8 - 1.2 Nm |
| Plugging cycles: | ≥ 100 |
| Pollution severity: | 3 |
| jumpered: | No |
| Certificate no. (cULus): | E307231 |
| ETIM 6.0: | EC001855 |
| ETIM 7.0: | EC001855 |
| eClass 9.0: | 27-06-03-11 |
| eClass 9.1: | 27-06-03-11 |
| eClass 10.0: | 27-06-03-11 |
| ROHS: | Conform |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 1.737 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
