Weidmueller
1241380000
IE-SW-BL06-2TX-4POE
Request a Quote

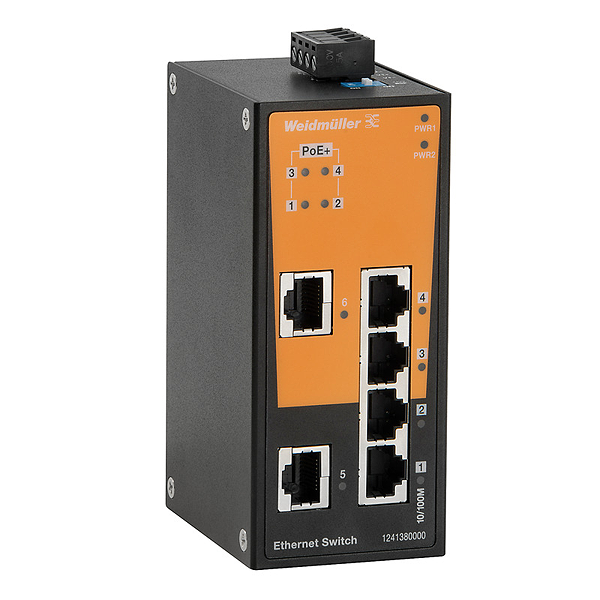

Image copyright: Weidmueller
Weidmueller 1241380000
IE-SW-BL06-2TX-4POE
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Type: | IE-SW-BL06-2TX-4POE |
| Order No.: | 1241380000 |
| Version: | Network switch, unmanaged PoE, Fast Ethernet, Number of ports: 2 * RJ45 10/100 BaseT(X), 4x RJ45 10/100 BaseT(X) PoE+, IP30, -10 °C...60 °C |
| GTIN (EAN): | 4050118029093 |
| Qty.: | 1 pc(s). |
| Width: | 50 |
| Width (inches): | 1.969 inch |
| Height: | 114 mm |
| Height (inches): | 4.488 inch |
| Depth: | 70 mm |
| Depth (inches): | 2.756 inch |
| Net weight: | 375 g |
| REACH SVHC: | Lead 7439-92-1 |
| EMC standards: | FCC Part 15 Subpart B Class A, EN 55032, EN 55024, IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV, IEC 61000-4-6 CS: 10 V, EN 61000-4-8 |
| Safety standard: | UL 508 |
| Shock: | according to IEC 60068-2-27 |
| Vibration: | according to IEC 60068-2-6 |
| Free fall: | According to IEC 60068-2-32 |
| Humidity: | 5 to 95 % (non-condensing) |
| Operating temperature, max.: | 60 °C |
| Operating temperature, min.: | -10 °C |
| Storage temperature, max.: | 85 °C |
| Storage temperature, min.: | -40 °C |
| Time interval: | 5 years |
| DIP switch: | Broadcast storm protection enable/disable |
| LED indicator: | PWR1, PWR2, 10/100M (TP-Port), PoE |
| Number of ports: | 2 * RJ45 10/100 BaseT(X), 4x RJ45 10/100 BaseT(X) PoE+ |
| RJ45 ports: | 10/100BaseT(X), auto negotiation, Full-/half-duplex mode, Auto MDI/MDI-X port |
| MTBF: | 1,398,743 hrs |
| Database: | Telcordia (Bellcore), GB |
| Voltage type: | DC |
| Voltage, min.: | 12 V |
| Voltage, max.: | 17 V |
| Power budget: | 62 W |
| Voltage type: | DC |
| Voltage, min.: | 18 V |
| Voltage, max.: | 57 V |
| Power budget: | 120 W |
| Standard: | IEEE 802.3af |
| Output power: | 15.4 W |
| Standard: | IEEE 802.3at |
| Output power: | 30 W |
| Standard: | IEEE 802.3af |
| Output current: | 350 mA |
| Standard: | IEEE 802.3at |
| Output current: | 600 mA |
| PoE pin assignment: | Mode A: Pin 1, 2 (V+); Pin 3, 6 (V-); Alternative A; MDI |
| Connection type: | 1 removable 4-pin terminal block |
| Voltage: | 12 V DC |
| Current: | 6.19 A |
| Voltage: | 24 V DC |
| Current: | 5.55 A |
| Voltage: | 48 V DC |
| Current: | 2.71 A |
| Inrush current: | 64.56 A at 48 V DC (0.1 to 1 ms) |
| Overload current protection: | Yes |
| Power consumption: | max. 13.2 W (without PD´s consumption) |
| Power loss: | 36.4 BTU/h |
| Reverse polarity protection: | Yes |
| Voltage supply: | 12/24/48 V DC, 2 redundant inputs |
| Voltage type: | DC |
| Voltage, min.: | 12 V |
| Voltage, max.: | 57 V |
| MAC table size: | 2 K |
| Packet buffer size: | 768 Kbit |
| Housing main material: | Aluminium |
| Protection degree: | IP30 |
| Type of mounting: | DIN rail, Panel (with optional mounting kit) |
| Data switching: | Store and Forward |
| Flow control: | IEEE 802.3x flow control, Back pressure flow control |
| Standard: | IEEE 802.3af for Power-over-Ethernet, IEEE 802.3at for Power-over-Ethernet, IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X), IEEE 802.3x for flow control |
| ETIM 6.0: | EC000734 |
| ETIM 7.0: | EC000734 |
| eClass 9.0: | 19-17-01-06 |
| eClass 9.1: | 19-17-01-06 |
| eClass 10.0: | 19-17-04-02 |
| ROHS: | Conform |
| Type: | IE-SW-BL06-2TX-4POE |
| Order No.: | 1241380000 |
| Version: | Network switch, unmanaged PoE, Fast Ethernet, Number of ports: 2 * RJ45 10/100 BaseT(X), 4x RJ45 10/100 BaseT(X) PoE+, IP30, -10 °C...60 °C |
| GTIN (EAN): | 4050118029093 |
| Qty.: | 1 pc(s). |
| Width: | 50 |
| Width (inches): | 1.969 inch |
| Height: | 114 mm |
| Height (inches): | 4.488 inch |
| Depth: | 70 mm |
| Depth (inches): | 2.756 inch |
| Net weight: | 375 g |
| REACH SVHC: | Lead 7439-92-1 |
| EMC standards: | FCC Part 15 Subpart B Class A, EN 55032, EN 55024, IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV, IEC 61000-4-6 CS: 10 V, EN 61000-4-8 |
| Safety standard: | UL 508 |
| Shock: | according to IEC 60068-2-27 |
| Vibration: | according to IEC 60068-2-6 |
| Free fall: | According to IEC 60068-2-32 |
| Humidity: | 5 to 95 % (non-condensing) |
| Operating temperature, max.: | 60 °C |
| Operating temperature, min.: | -10 °C |
| Storage temperature, max.: | 85 °C |
| Storage temperature, min.: | -40 °C |
| Time interval: | 5 years |
| DIP switch: | Broadcast storm protection enable/disable |
| LED indicator: | PWR1, PWR2, 10/100M (TP-Port), PoE |
| Number of ports: | 2 * RJ45 10/100 BaseT(X), 4x RJ45 10/100 BaseT(X) PoE+ |
| RJ45 ports: | 10/100BaseT(X), auto negotiation, Full-/half-duplex mode, Auto MDI/MDI-X port |
| MTBF: | 1,398,743 hrs |
| Database: | Telcordia (Bellcore), GB |
| Voltage type: | DC |
| Voltage, min.: | 12 V |
| Voltage, max.: | 17 V |
| Power budget: | 62 W |
| Voltage type: | DC |
| Voltage, min.: | 18 V |
| Voltage, max.: | 57 V |
| Power budget: | 120 W |
| Standard: | IEEE 802.3af |
| Output power: | 15.4 W |
| Standard: | IEEE 802.3at |
| Output power: | 30 W |
| Standard: | IEEE 802.3af |
| Output current: | 350 mA |
| Standard: | IEEE 802.3at |
| Output current: | 600 mA |
| PoE pin assignment: | Mode A: Pin 1, 2 (V+); Pin 3, 6 (V-); Alternative A; MDI |
| Connection type: | 1 removable 4-pin terminal block |
| Voltage: | 12 V DC |
| Current: | 6.19 A |
| Voltage: | 24 V DC |
| Current: | 5.55 A |
| Voltage: | 48 V DC |
| Current: | 2.71 A |
| Inrush current: | 64.56 A at 48 V DC (0.1 to 1 ms) |
| Overload current protection: | Yes |
| Power consumption: | max. 13.2 W (without PD´s consumption) |
| Power loss: | 36.4 BTU/h |
| Reverse polarity protection: | Yes |
| Voltage supply: | 12/24/48 V DC, 2 redundant inputs |
| Voltage type: | DC |
| Voltage, min.: | 12 V |
| Voltage, max.: | 57 V |
| MAC table size: | 2 K |
| Packet buffer size: | 768 Kbit |
| Housing main material: | Aluminium |
| Protection degree: | IP30 |
| Type of mounting: | DIN rail, Panel (with optional mounting kit) |
| Data switching: | Store and Forward |
| Flow control: | IEEE 802.3x flow control, Back pressure flow control |
| Standard: | IEEE 802.3af for Power-over-Ethernet, IEEE 802.3at for Power-over-Ethernet, IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X), IEEE 802.3x for flow control |
| ETIM 6.0: | EC000734 |
| ETIM 7.0: | EC000734 |
| eClass 9.0: | 19-17-01-06 |
| eClass 9.1: | 19-17-01-06 |
| eClass 10.0: | 19-17-04-02 |
| ROHS: | Conform |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.446 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
