Product
Weidmueller
1240940000
IE-SW-VL08MT-8TX
Request a Quote

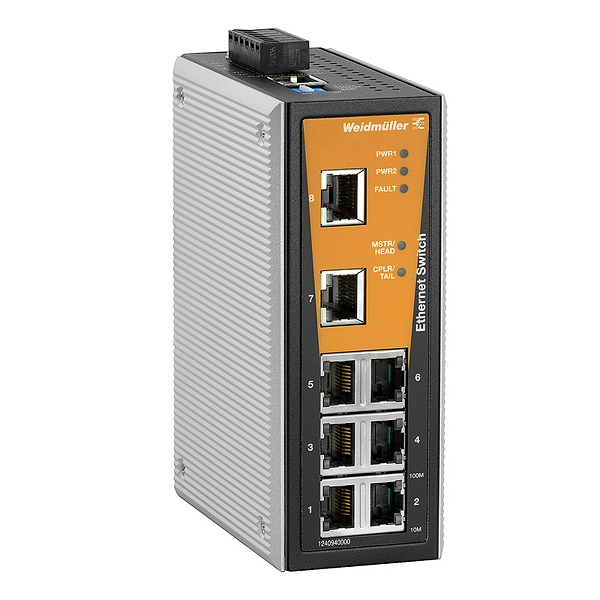

Image copyright: Weidmueller
Weidmueller 1240940000
IE-SW-VL08MT-8TX
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Type: | IE-SW-VL08MT-8TX |
| Order No.: | 1240940000 |
| Version: | Network switch, managed, Fast Ethernet, Number of ports: 8x RJ45, IP30, -40 °C...75 °C |
| GTIN (EAN): | 4050118028676 |
| Qty.: | 1 pc(s). |
| Width: | 53.6 |
| Width (inches): | 2.11 inch |
| Height: | 135 mm |
| Height (inches): | 5.315 inch |
| Depth: | 105 mm |
| Depth (inches): | 4.134 inch |
| Net weight: | 890 g |
| REACH SVHC: | Lead 7439-92-1 |
| EMC standards: | EN 55032, EN 55024, CISPR 32, FCC Part 15 Subpart B Class A, IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 |
| Safety standard: | UL508, UL 60950-1, EN 60950-1 |
| Explosive risk zone: | UL/cUL, Class I, Division 2, Groups A, B, C and D, ATEX Zone 2 Ex nA nC IIC T4 Gc |
| Ship use: | DNV-GL |
| Shock: | according to IEC 60068-2-27 |
| Vibration: | according to IEC 60068-2-6 |
| Free fall: | According to IEC 60068-2-32 |
| Humidity: | 5 to 95 % (non-condensing) |
| Operating temperature, max.: | 75 °C |
| Operating temperature, min.: | -40 °C |
| Storage temperature, max.: | 85 °C |
| Storage temperature, min.: | -40 °C |
| Time interval: | 5 years |
| Alarm contact: | 1 relay output with a current capacity of 1 A at 24 V DC |
| Console port interface: | RS-232 |
| DIP switch: | Turbo-Ring, Master, Coupler, Reserve |
| LED indicator: | PWR1, PWR2, FAULT, MSTR/HEAD, CPLR/TAIL, 10/100M (TP-Port) |
| Number of ports: | 8x RJ45 |
| RJ45 ports: | 10/100BaseT(X), auto negotiation, Full-/half-duplex mode, Auto MDI/MDI-X port |
| MTBF: | 1,339,439 hrs |
| Database: | Telcordia (Bellcore), GB |
| Device configuration: | Webbrowser (HTTP/HTTPS), SNMP v1/v2c/v3, Telnet console, Local serial console port (RS-232 via RJ-45 port), Windows tool |
| Monitoring function: | SNMP v1/v2c/v3, Link Layer Discovery Protocol (LLDP), Port mirroring, Port statistics, Port monitoring, Syslog, RMON (Remote monitoring), Event based warning via E-Mail, Event based warning via relay, Event based warning via SNMP trap |
| Network redundancy: | Spanning Tree Protocol (STP), Rapid Spanning Tree Protocol (RSTP), Turbo-Ring (recovery time <20 ms), Turbo-Chain (recovery time <20 ms) |
| Network traffic filter: | Quality of Service (QoS), Tag based VLAN, Port based VLAN, IGMP v1/v2, GMRP, Traffic Rate Limiting |
| IP-address management: | Static, BootP, RARP, DHCP-Client, DHCP-Server (port based), DHCP Option 82 (Relay Agent) |
| Security functions: | VLAN segmentation, Enable/disable ports, Loop protection |
| Time synchronization management: | SNTP client, NTP client |
| Industrial protocol support: | PROFINET device acc. to conformance class B, EtherNet/IP, Modbus/TCP slave |
| Connection type: | 1 removable 6-pin terminal block |
| Voltage: | 24 V DC |
| Current: | 0.26 A |
| Overload current protection: | Yes |
| Reverse polarity protection: | Yes |
| Voltage supply: | 12/24/48 V DC, 2 redundant inputs |
| Voltage type: | DC |
| Voltage, min.: | 9.6 V |
| Voltage, max.: | 60 V |
| Bandwidth backplane: | 1.6 Gbps |
| IGMP-Groups: | 256 |
| MAC table size: | 8 K |
| Max. number of available VLANs: | 64 |
| Packet buffer size: | 1 Mbit |
| Priority queues: | 4 |
| VLAN-ID max: | 4,094 |
| VLAN-ID min: | 1 |
| Housing main material: | metal |
| Protection degree: | IP30 |
| Type of mounting: | DIN rail, Panel (with optional mounting kit) |
| Data switching: | Store and Forward |
| Flow control: | IEEE 802.3x flow control, Back pressure flow control |
| MIB: | MIB-II, Ethernet-Like MIB, P-BRIDGE MIB, Bridge MIB, RSTP MIB, RMON MIB Group 1, 2, 3, 9 |
| Standard: | IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X), IEEE 802.3x for flow control, IEEE 802.1D-2004 for the Spanning Tree protocol, IEEE 802.1w for Rapid STP, IEEE 802.1p for Class of Service, IEEE 802.1Q for VLAN tagging |
| ETIM 6.0: | EC000734 |
| ETIM 7.0: | EC000734 |
| eClass 9.0: | 19-17-01-06 |
| eClass 9.1: | 19-17-01-06 |
| eClass 10.0: | 19-17-04-01 |
| ROHS: | Conform |
| Type: | IE-SW-VL08MT-8TX |
| Order No.: | 1240940000 |
| Version: | Network switch, managed, Fast Ethernet, Number of ports: 8x RJ45, IP30, -40 °C...75 °C |
| GTIN (EAN): | 4050118028676 |
| Qty.: | 1 pc(s). |
| Width: | 53.6 |
| Width (inches): | 2.11 inch |
| Height: | 135 mm |
| Height (inches): | 5.315 inch |
| Depth: | 105 mm |
| Depth (inches): | 4.134 inch |
| Net weight: | 890 g |
| REACH SVHC: | Lead 7439-92-1 |
| EMC standards: | EN 55032, EN 55024, CISPR 32, FCC Part 15 Subpart B Class A, IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 |
| Safety standard: | UL508, UL 60950-1, EN 60950-1 |
| Explosive risk zone: | UL/cUL, Class I, Division 2, Groups A, B, C and D, ATEX Zone 2 Ex nA nC IIC T4 Gc |
| Ship use: | DNV-GL |
| Shock: | according to IEC 60068-2-27 |
| Vibration: | according to IEC 60068-2-6 |
| Free fall: | According to IEC 60068-2-32 |
| Humidity: | 5 to 95 % (non-condensing) |
| Operating temperature, max.: | 75 °C |
| Operating temperature, min.: | -40 °C |
| Storage temperature, max.: | 85 °C |
| Storage temperature, min.: | -40 °C |
| Time interval: | 5 years |
| Alarm contact: | 1 relay output with a current capacity of 1 A at 24 V DC |
| Console port interface: | RS-232 |
| DIP switch: | Turbo-Ring, Master, Coupler, Reserve |
| LED indicator: | PWR1, PWR2, FAULT, MSTR/HEAD, CPLR/TAIL, 10/100M (TP-Port) |
| Number of ports: | 8x RJ45 |
| RJ45 ports: | 10/100BaseT(X), auto negotiation, Full-/half-duplex mode, Auto MDI/MDI-X port |
| MTBF: | 1,339,439 hrs |
| Database: | Telcordia (Bellcore), GB |
| Device configuration: | Webbrowser (HTTP/HTTPS), SNMP v1/v2c/v3, Telnet console, Local serial console port (RS-232 via RJ-45 port), Windows tool |
| Monitoring function: | SNMP v1/v2c/v3, Link Layer Discovery Protocol (LLDP), Port mirroring, Port statistics, Port monitoring, Syslog, RMON (Remote monitoring), Event based warning via E-Mail, Event based warning via relay, Event based warning via SNMP trap |
| Network redundancy: | Spanning Tree Protocol (STP), Rapid Spanning Tree Protocol (RSTP), Turbo-Ring (recovery time <20 ms), Turbo-Chain (recovery time <20 ms) |
| Network traffic filter: | Quality of Service (QoS), Tag based VLAN, Port based VLAN, IGMP v1/v2, GMRP, Traffic Rate Limiting |
| IP-address management: | Static, BootP, RARP, DHCP-Client, DHCP-Server (port based), DHCP Option 82 (Relay Agent) |
| Security functions: | VLAN segmentation, Enable/disable ports, Loop protection |
| Time synchronization management: | SNTP client, NTP client |
| Industrial protocol support: | PROFINET device acc. to conformance class B, EtherNet/IP, Modbus/TCP slave |
| Connection type: | 1 removable 6-pin terminal block |
| Voltage: | 24 V DC |
| Current: | 0.26 A |
| Overload current protection: | Yes |
| Reverse polarity protection: | Yes |
| Voltage supply: | 12/24/48 V DC, 2 redundant inputs |
| Voltage type: | DC |
| Voltage, min.: | 9.6 V |
| Voltage, max.: | 60 V |
| Bandwidth backplane: | 1.6 Gbps |
| IGMP-Groups: | 256 |
| MAC table size: | 8 K |
| Max. number of available VLANs: | 64 |
| Packet buffer size: | 1 Mbit |
| Priority queues: | 4 |
| VLAN-ID max: | 4,094 |
| VLAN-ID min: | 1 |
| Housing main material: | metal |
| Protection degree: | IP30 |
| Type of mounting: | DIN rail, Panel (with optional mounting kit) |
| Data switching: | Store and Forward |
| Flow control: | IEEE 802.3x flow control, Back pressure flow control |
| MIB: | MIB-II, Ethernet-Like MIB, P-BRIDGE MIB, Bridge MIB, RSTP MIB, RMON MIB Group 1, 2, 3, 9 |
| Standard: | IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X), IEEE 802.3x for flow control, IEEE 802.1D-2004 for the Spanning Tree protocol, IEEE 802.1w for Rapid STP, IEEE 802.1p for Class of Service, IEEE 802.1Q for VLAN tagging |
| ETIM 6.0: | EC000734 |
| ETIM 7.0: | EC000734 |
| eClass 9.0: | 19-17-01-06 |
| eClass 9.1: | 19-17-01-06 |
| eClass 10.0: | 19-17-04-01 |
| ROHS: | Conform |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 1.165 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
