1190600000
SLH-THR5.08/16/180F 3.2SN BK BX
Request a Quote
Image copyright: Weidmueller

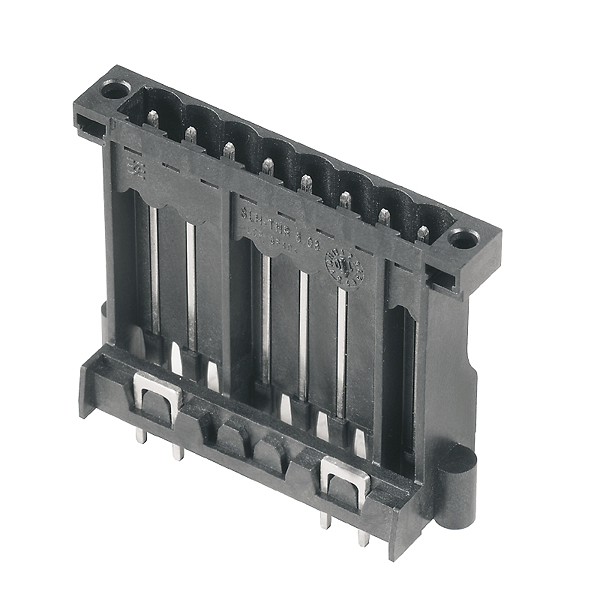

Weidmueller 1190600000
SLH-THR5.08/16/180F 3.2SN BK BX
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Type: | SLH-THR5.08/16/180F 3.2SN BK BX |
| Order No.: | 1190600000 |
| Version: | PCB plug-in connector, male header, Flange, THT/THR solder connection, 5.08 mm, Number of poles: 16, 180°, Solder pin length (l): 3.2 mm, tinned, black, Box |
| GTIN (EAN): | 4032248973415 |
| Qty.: | 10 pc(s). |
| Packaging: | Box |
| Width: | 101.6 |
| Width (inches): | 4 inch |
| Height: | 43.52 mm |
| Height (inches): | 1.713 inch |
| Height of lowest version: | 40.32 mm |
| Depth: | 16.46 mm |
| Depth (inches): | 0.648 inch |
| Net weight: | 26.6 g |
| Product family: | OMNIMATE Signal - series BL/SL 5.08 |
| Type of connection: | Board connection |
| Mounting onto the PCB: | THT/THR solder connection |
| Pitch in mm (P): | 5.08 mm |
| Pitch in inches (P): | 0.2 inch |
| Outgoing elbow: | 180° |
| Number of poles: | 16 |
| Number of solder pins per pole: | 1 |
| Solder pin length (l): | 3.2 mm |
| Solder pin length tolerance: | 0 / -0.3 mm |
| Solder pin dimensions: | d = 1.2 mm, Octagonal |
| Solder eyelet hole diameter (D): | 1.5 mm |
| Solder eyelet hole diameter tolerance (D): | + 0,1 mm |
| L1 in mm: | 86.36 mm |
| L1 in inches: | 3.4 inch |
| Pin series quantity: | 2 |
| Volume resistance: | ≤ 5mΩ |
| Can be coded: | Yes |
| Plugging cycles: | 25 |
| Plugging force/pole, min.: | 6.5 N |
| Plugging force/pole, max.: | 10 N |
| Pulling force / pole, min.: | 5 N |
| Pulling force/pole, max.: | 7.5 N |
| Insulating material: | LCP GF |
| Colour: | black |
| Colour chart (similar): | RAL 9011 |
| Insulating material group: | IIIa |
| Comparative Tracking Index (CTI): | ≥ 175 |
| Moisture Level (MSL): | 1 |
| UL 94 flammability rating: | V-0 |
| GWIT: | 930 °C |
| GWFI: | 960 °C |
| Contact material: | CuSn |
| Contact surface: | tinned |
| Layer structure of solder connection: | 1...3 µm Ni / 2...4 µm Sn matt |
| Layer structure of plug contact: | 1...3 µm Ni / 2...4 µm Sn matt |
| Storage temperature, min.: | -25 °C |
| Storage temperature, max.: | 50 °C |
| Max. relative humidity during storage: | 70 % |
| Operating temperature, min.: | -50 °C |
| Operating temperature, max.: | 100 °C |
| Temperature range, installation, min.: | -30 °C |
| Temperature range, installation, max.: | 100 °C |
| tested acc. to standard: | IEC 60664-1, IEC 61984 |
| Rated current, min. number of poles (Tu=20°C): | 18 A |
| Rated current, min. number of poles (Tu=40°C): | 13 A |
| Rated voltage for surge voltage class / pollution degree II/2: | 320 V |
| Rated voltage for surge voltage class / pollution degree III/2: | 320 V |
| Rated voltage for surge voltage class / pollution degree III/3: | 200 V |
| Rated impulse voltage for surge voltage class/ pollution degree II/2: | 4 kV |
| Rated impulse voltage for surge voltage class/ pollution degree III/2: | 4 kV |
| Rated impulse voltage for surge voltage class/ contamination degree III/3: | 4 kV |
| Short-time withstand current resistance: | 1 x 1s with 120 A |
| Certificate No. (CSA): | 200039-1121690 |
| Rated voltage (Use group B / CSA): | 300 V |
| Rated voltage (Use group D / CSA): | 300 V |
| Rated current (Use group B / CSA): | 13 A |
| Rated current (Use group D / CSA): | 10 A |
| Reference to approval values: | Specifications are maximum values, details - see approval certificate. |
| Certificate No. (cURus): | E60693 |
| Rated voltage (Use group B / UL 1059): | 300 V |
| Rated voltage (Use group D / UL 1059): | 300 V |
| Rated current (Use group B / UL 1059): | 10 A |
| Rated current (Use group D / UL 1059): | 10 A |
| Reference to approval values: | Specifications are maximum values, details - see approval certificate. |
| Packaging: | Box |
| VPE length: | 50 mm |
| VPE width: | 95 mm |
| VPE height: | 175 mm |
| ETIM 6.0: | EC002637 |
| ETIM 7.0: | EC002637 |
| eClass 9.0: | 27-44-04-02 |
| eClass 9.1: | 27-44-04-02 |
| eClass 10.0: | 27-44-04-02 |
| IPC conformity: | Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request. |
| ROHS: | Conform |
| Type: | SLH-THR5.08/16/180F 3.2SN BK BX |
| Order No.: | 1190600000 |
| Version: | PCB plug-in connector, male header, Flange, THT/THR solder connection, 5.08 mm, Number of poles: 16, 180°, Solder pin length (l): 3.2 mm, tinned, black, Box |
| GTIN (EAN): | 4032248973415 |
| Qty.: | 10 pc(s). |
| Packaging: | Box |
| Width: | 101.6 |
| Width (inches): | 4 inch |
| Height: | 43.52 mm |
| Height (inches): | 1.713 inch |
| Height of lowest version: | 40.32 mm |
| Depth: | 16.46 mm |
| Depth (inches): | 0.648 inch |
| Net weight: | 26.6 g |
| Product family: | OMNIMATE Signal - series BL/SL 5.08 |
| Type of connection: | Board connection |
| Mounting onto the PCB: | THT/THR solder connection |
| Pitch in mm (P): | 5.08 mm |
| Pitch in inches (P): | 0.2 inch |
| Outgoing elbow: | 180° |
| Number of poles: | 16 |
| Number of solder pins per pole: | 1 |
| Solder pin length (l): | 3.2 mm |
| Solder pin length tolerance: | 0 / -0.3 mm |
| Solder pin dimensions: | d = 1.2 mm, Octagonal |
| Solder eyelet hole diameter (D): | 1.5 mm |
| Solder eyelet hole diameter tolerance (D): | + 0,1 mm |
| L1 in mm: | 86.36 mm |
| L1 in inches: | 3.4 inch |
| Pin series quantity: | 2 |
| Volume resistance: | ≤ 5mΩ |
| Can be coded: | Yes |
| Plugging cycles: | 25 |
| Plugging force/pole, min.: | 6.5 N |
| Plugging force/pole, max.: | 10 N |
| Pulling force / pole, min.: | 5 N |
| Pulling force/pole, max.: | 7.5 N |
| Insulating material: | LCP GF |
| Colour: | black |
| Colour chart (similar): | RAL 9011 |
| Insulating material group: | IIIa |
| Comparative Tracking Index (CTI): | ≥ 175 |
| Moisture Level (MSL): | 1 |
| UL 94 flammability rating: | V-0 |
| GWIT: | 930 °C |
| GWFI: | 960 °C |
| Contact material: | CuSn |
| Contact surface: | tinned |
| Layer structure of solder connection: | 1...3 µm Ni / 2...4 µm Sn matt |
| Layer structure of plug contact: | 1...3 µm Ni / 2...4 µm Sn matt |
| Storage temperature, min.: | -25 °C |
| Storage temperature, max.: | 50 °C |
| Max. relative humidity during storage: | 70 % |
| Operating temperature, min.: | -50 °C |
| Operating temperature, max.: | 100 °C |
| Temperature range, installation, min.: | -30 °C |
| Temperature range, installation, max.: | 100 °C |
| tested acc. to standard: | IEC 60664-1, IEC 61984 |
| Rated current, min. number of poles (Tu=20°C): | 18 A |
| Rated current, min. number of poles (Tu=40°C): | 13 A |
| Rated voltage for surge voltage class / pollution degree II/2: | 320 V |
| Rated voltage for surge voltage class / pollution degree III/2: | 320 V |
| Rated voltage for surge voltage class / pollution degree III/3: | 200 V |
| Rated impulse voltage for surge voltage class/ pollution degree II/2: | 4 kV |
| Rated impulse voltage for surge voltage class/ pollution degree III/2: | 4 kV |
| Rated impulse voltage for surge voltage class/ contamination degree III/3: | 4 kV |
| Short-time withstand current resistance: | 1 x 1s with 120 A |
| Certificate No. (CSA): | 200039-1121690 |
| Rated voltage (Use group B / CSA): | 300 V |
| Rated voltage (Use group D / CSA): | 300 V |
| Rated current (Use group B / CSA): | 13 A |
| Rated current (Use group D / CSA): | 10 A |
| Reference to approval values: | Specifications are maximum values, details - see approval certificate. |
| Certificate No. (cURus): | E60693 |
| Rated voltage (Use group B / UL 1059): | 300 V |
| Rated voltage (Use group D / UL 1059): | 300 V |
| Rated current (Use group B / UL 1059): | 10 A |
| Rated current (Use group D / UL 1059): | 10 A |
| Reference to approval values: | Specifications are maximum values, details - see approval certificate. |
| Packaging: | Box |
| VPE length: | 50 mm |
| VPE width: | 95 mm |
| VPE height: | 175 mm |
| ETIM 6.0: | EC002637 |
| ETIM 7.0: | EC002637 |
| eClass 9.0: | 27-44-04-02 |
| eClass 9.1: | 27-44-04-02 |
| eClass 10.0: | 27-44-04-02 |
| IPC conformity: | Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request. |
| ROHS: | Conform |
