Product
Weidmueller
1156680000
SU 10.16IT/03/90MF3 3.5AG BK BX
Request a Quote

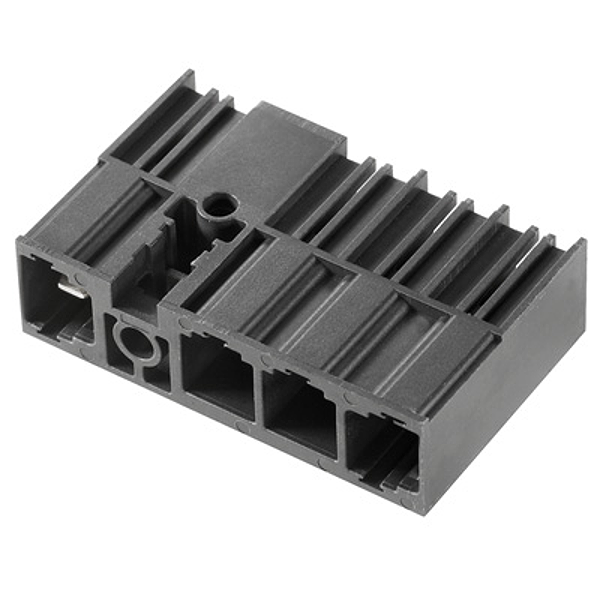

Image copyright: Weidmueller
Weidmueller 1156680000
SU 10.16IT/03/90MF3 3.5AG BK BX
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Type: | SU 10.16IT/03/90MF3 3.5AG BK BX |
| Order No.: | 1156680000 |
| Version: | PCB plug-in connector, male header, closed side, Middle flange, THT solder connection, 10.16 mm, Number of poles: 3, 90°, Solder pin length (l): 3.5 mm, silver-plated, black, Box |
| GTIN (EAN): | 4032248943678 |
| Qty.: | 42 pc(s). |
| Packaging: | Box |
| Net weight: | 13.9 g |
| Product family: | OMNIMATE Power - series BU/SU 10.16IT |
| Type of connection: | Board connection |
| Mounting onto the PCB: | THT solder connection |
| Pitch in mm (P): | 10.16 mm |
| Pitch in inches (P): | 0.4 inch |
| Outgoing elbow: | 90° |
| Number of poles: | 3 |
| Number of solder pins per pole: | 3 |
| Solder pin length (l): | 3.5 mm |
| Solder pin length tolerance: | +0.1 / -0.3 mm |
| Tolerance of solder pin position: | ± 0.1 mm |
| Solder pin dimensions: | 1.2 x 1.1 mm |
| Solder pin dimensions = d tolerance: | +0.1 / -0.1 mm |
| Solder eyelet hole diameter (D): | 1.6 mm |
| Solder eyelet hole diameter tolerance (D): | + 0,1 mm |
| L1 in mm: | 30.48 mm |
| L1 in inches: | 1.2 inch |
| Number of rows: | 1 |
| Pin series quantity: | 1 |
| Touch-safe protection acc. to DIN VDE 57 106: | Safe from finger touch, plugged |
| Touch-safe protection acc. to DIN VDE 0470: | IP20 plugged |
| Volume resistance: | 2.00 mΩ |
| Can be coded: | Yes |
| Plugging cycles: | ≤ 50 |
| Insulating material: | PA GF |
| Colour: | black |
| Colour chart (similar): | RAL 9011 |
| Insulating material group: | I |
| Comparative Tracking Index (CTI): | ≥ 600 |
| UL 94 flammability rating: | V-0 |
| GWFI: | 960 °C |
| Contact material: | Copper alloy |
| Contact surface: | silver-plated |
| Layer structure of solder connection: | ≥ 3 µm Ag |
| Layer structure of plug contact: | ≥ 3 µm Ag |
| Storage temperature, min.: | -40 °C |
| Storage temperature, max.: | 70 °C |
| Operating temperature, min.: | -50 °C |
| Operating temperature, max.: | 120 °C |
| Temperature range, installation, min.: | -25 °C |
| Temperature range, installation, max.: | 120 °C |
| tested acc. to standard: | IEC 60664-1, IEC 61984 |
| Rated current, min. number of poles (Tu=20°C): | 78.3 A |
| Rated current, max. number of poles (Tu=20°C): | 67.9 A |
| Rated current, min. number of poles (Tu=40°C): | 70.6 A |
| Rated current, max. number of poles (Tu=40°C): | 61.3 A |
| Rated voltage for surge voltage class / pollution degree II/2: | 1,000 V |
| Rated voltage for surge voltage class / pollution degree III/2: | 1,000 V |
| Rated voltage for surge voltage class / pollution degree III/3: | 690 V |
| Rated impulse voltage for surge voltage class/ pollution degree II/2: | 6 kV |
| Rated impulse voltage for surge voltage class/ pollution degree III/2: | 8 kV |
| Rated impulse voltage for surge voltage class/ contamination degree III/3: | 8 kV |
| Short-time withstand current resistance: | 3 x 1s mit 1000 A |
| Clearance, min.: | 8.9 mm |
| Creepage distance, min.: | 10.5 mm |
| Certificate No. (CSA): | 200039-1121690 |
| Rated voltage (Use group B / CSA): | 300 V |
| Rated voltage (Use group C / CSA): | 300 V |
| Rated voltage (Use group D / CSA): | 600 V |
| Rated current (Use group B / CSA): | 60 A |
| Rated current (Use group C / CSA): | 60 A |
| Rated current (Use group D / CSA): | 5 A |
| Reference to approval values: | Specifications are maximum values, details - see approval certificate. |
| Certificate No. (cURus): | E60693 |
| Rated voltage (Use group B / UL 1059): | 300 V |
| Rated voltage (Use group C / UL 1059): | 300 V |
| Rated voltage (Use group D / UL 1059): | 600 V |
| Rated current (Use group B / UL 1059): | 60 A |
| Rated current (Use group C / UL 1059): | 60 A |
| Rated current (Use group D / UL 1059): | 5 A |
| Clearance distance, min.: | 8.9 mm |
| Creepage distance, min.: | 10.5 mm |
| Reference to approval values: | Specifications are maximum values, details - see approval certificate. |
| Packaging: | Box |
| VPE length: | 30 mm |
| VPE width: | 125 mm |
| VPE height: | 350 mm |
| ETIM 6.0: | EC002637 |
| ETIM 7.0: | EC002637 |
| eClass 9.0: | 27-44-04-02 |
| eClass 9.1: | 27-44-04-02 |
| eClass 10.0: | 27-44-04-02 |
| IPC conformity: | Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request. |
| ROHS: | Conform |
| Type: | SU 10.16IT/03/90MF3 3.5AG BK BX |
| Order No.: | 1156680000 |
| Version: | PCB plug-in connector, male header, closed side, Middle flange, THT solder connection, 10.16 mm, Number of poles: 3, 90°, Solder pin length (l): 3.5 mm, silver-plated, black, Box |
| GTIN (EAN): | 4032248943678 |
| Qty.: | 42 pc(s). |
| Packaging: | Box |
| Net weight: | 13.9 g |
| Product family: | OMNIMATE Power - series BU/SU 10.16IT |
| Type of connection: | Board connection |
| Mounting onto the PCB: | THT solder connection |
| Pitch in mm (P): | 10.16 mm |
| Pitch in inches (P): | 0.4 inch |
| Outgoing elbow: | 90° |
| Number of poles: | 3 |
| Number of solder pins per pole: | 3 |
| Solder pin length (l): | 3.5 mm |
| Solder pin length tolerance: | +0.1 / -0.3 mm |
| Tolerance of solder pin position: | ± 0.1 mm |
| Solder pin dimensions: | 1.2 x 1.1 mm |
| Solder pin dimensions = d tolerance: | +0.1 / -0.1 mm |
| Solder eyelet hole diameter (D): | 1.6 mm |
| Solder eyelet hole diameter tolerance (D): | + 0,1 mm |
| L1 in mm: | 30.48 mm |
| L1 in inches: | 1.2 inch |
| Number of rows: | 1 |
| Pin series quantity: | 1 |
| Touch-safe protection acc. to DIN VDE 57 106: | Safe from finger touch, plugged |
| Touch-safe protection acc. to DIN VDE 0470: | IP20 plugged |
| Volume resistance: | 2.00 mΩ |
| Can be coded: | Yes |
| Plugging cycles: | ≤ 50 |
| Insulating material: | PA GF |
| Colour: | black |
| Colour chart (similar): | RAL 9011 |
| Insulating material group: | I |
| Comparative Tracking Index (CTI): | ≥ 600 |
| UL 94 flammability rating: | V-0 |
| GWFI: | 960 °C |
| Contact material: | Copper alloy |
| Contact surface: | silver-plated |
| Layer structure of solder connection: | ≥ 3 µm Ag |
| Layer structure of plug contact: | ≥ 3 µm Ag |
| Storage temperature, min.: | -40 °C |
| Storage temperature, max.: | 70 °C |
| Operating temperature, min.: | -50 °C |
| Operating temperature, max.: | 120 °C |
| Temperature range, installation, min.: | -25 °C |
| Temperature range, installation, max.: | 120 °C |
| tested acc. to standard: | IEC 60664-1, IEC 61984 |
| Rated current, min. number of poles (Tu=20°C): | 78.3 A |
| Rated current, max. number of poles (Tu=20°C): | 67.9 A |
| Rated current, min. number of poles (Tu=40°C): | 70.6 A |
| Rated current, max. number of poles (Tu=40°C): | 61.3 A |
| Rated voltage for surge voltage class / pollution degree II/2: | 1,000 V |
| Rated voltage for surge voltage class / pollution degree III/2: | 1,000 V |
| Rated voltage for surge voltage class / pollution degree III/3: | 690 V |
| Rated impulse voltage for surge voltage class/ pollution degree II/2: | 6 kV |
| Rated impulse voltage for surge voltage class/ pollution degree III/2: | 8 kV |
| Rated impulse voltage for surge voltage class/ contamination degree III/3: | 8 kV |
| Short-time withstand current resistance: | 3 x 1s mit 1000 A |
| Clearance, min.: | 8.9 mm |
| Creepage distance, min.: | 10.5 mm |
| Certificate No. (CSA): | 200039-1121690 |
| Rated voltage (Use group B / CSA): | 300 V |
| Rated voltage (Use group C / CSA): | 300 V |
| Rated voltage (Use group D / CSA): | 600 V |
| Rated current (Use group B / CSA): | 60 A |
| Rated current (Use group C / CSA): | 60 A |
| Rated current (Use group D / CSA): | 5 A |
| Reference to approval values: | Specifications are maximum values, details - see approval certificate. |
| Certificate No. (cURus): | E60693 |
| Rated voltage (Use group B / UL 1059): | 300 V |
| Rated voltage (Use group C / UL 1059): | 300 V |
| Rated voltage (Use group D / UL 1059): | 600 V |
| Rated current (Use group B / UL 1059): | 60 A |
| Rated current (Use group C / UL 1059): | 60 A |
| Rated current (Use group D / UL 1059): | 5 A |
| Clearance distance, min.: | 8.9 mm |
| Creepage distance, min.: | 10.5 mm |
| Reference to approval values: | Specifications are maximum values, details - see approval certificate. |
| Packaging: | Box |
| VPE length: | 30 mm |
| VPE width: | 125 mm |
| VPE height: | 350 mm |
| ETIM 6.0: | EC002637 |
| ETIM 7.0: | EC002637 |
| eClass 9.0: | 27-44-04-02 |
| eClass 9.1: | 27-44-04-02 |
| eClass 10.0: | 27-44-04-02 |
| IPC conformity: | Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request. |
| ROHS: | Conform |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.017 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
