1023460000
CS1,6RD18-16 AU,75 I3,5
CS1,6RD18-16 AU,75 I3,5
Delivery status: | Discontinued |
Available until: | 2020-02-28 |
Type: | CS1,6RD18-16 AU,75 I3,5 |
Order No.: | 1023460000 |

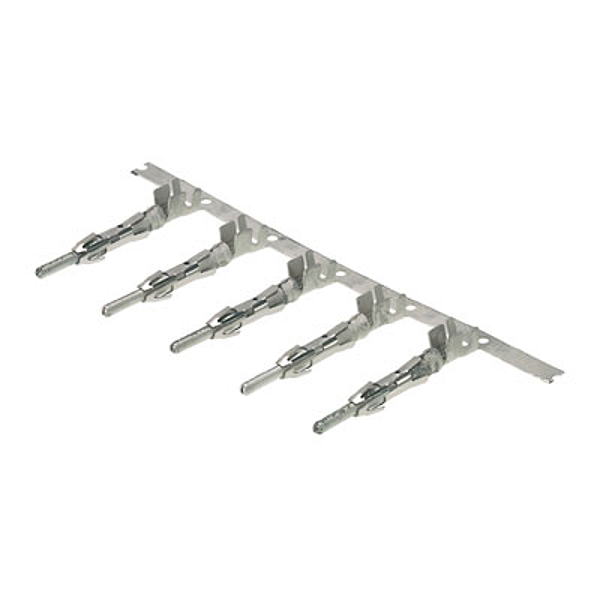

Version: | PCB plug-in connector, Crimp contact, Reel packaged, Pin – standard, Gold-plated, Max. clamping range : 1.5 mm² |
GTIN (EAN): | 4032248740048 |
Qty.: | 4,000 pc(s). |
Product data: | |
Packaging: | Reel |
Net weight: | 1.007 g |
Product family: | OMNIMATE Power - Powerbus series |
Wire connection method: | Crimp connection |
Number of poles: | 1 |
Pin series quantity: | 1 |
Stripping length: | 4 mm |
Contact surface: | Gold-plated |
Storage temperature, min.: | -40 °C |
Storage temperature, max.: | 70 °C |
Operating temperature, min.: | -50 °C |
Operating temperature, max.: | 100 °C |
Temperature range, installation, min.: | -25 °C |
Temperature range, installation, max.: | 100 °C |
Clamping range, min.: | 0.75 mm² |
Clamping range, max.: | 1.5 mm² |
Wire connection cross section AWG, min.: | AWG 18 |
Wire connection cross section AWG, max.: | AWG 16 |
Outer diameter of insulation, min.: | 2 mm |
Outer diameter of insulation, max.: | 3.5 mm |
Max. clamping range: | 1.5 mm² |
tested acc. to standard: | IEC 60664-1, IEC 61984 |
Packaging: | Reel |
VPE length: | 610 mm |
VPE width: | 610 mm |
VPE height: | 50 mm |
ETIM 6.0: | EC000796 |
ETIM 7.0: | EC000796 |
eClass 9.0: | 27-44-02-04 |
eClass 9.1: | 27-44-02-04 |
eClass 10.0: | 27-44-02-04 |
UNSPSC: | 30-21-18-01 |
IPC conformity: | Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request. |
ROHS: | Conform |
Delivery status: | Discontinued |
Available until: | 2020-02-28 |
Type: | CS1,6RD18-16 AU,75 I3,5 |
Order No.: | 1023460000 |
Version: | PCB plug-in connector, Crimp contact, Reel packaged, Pin – standard, Gold-plated, Max. clamping range : 1.5 mm² |
GTIN (EAN): | 4032248740048 |
Qty.: | 4,000 pc(s). |
Product data: | |
Packaging: | Reel |
Net weight: | 1.007 g |
Product family: | OMNIMATE Power - Powerbus series |
Wire connection method: | Crimp connection |
Number of poles: | 1 |
Pin series quantity: | 1 |
Stripping length: | 4 mm |
Contact surface: | Gold-plated |
Storage temperature, min.: | -40 °C |
Storage temperature, max.: | 70 °C |
Operating temperature, min.: | -50 °C |
Operating temperature, max.: | 100 °C |
Temperature range, installation, min.: | -25 °C |
Temperature range, installation, max.: | 100 °C |
Clamping range, min.: | 0.75 mm² |
Clamping range, max.: | 1.5 mm² |
Wire connection cross section AWG, min.: | AWG 18 |
Wire connection cross section AWG, max.: | AWG 16 |
Outer diameter of insulation, min.: | 2 mm |
Outer diameter of insulation, max.: | 3.5 mm |
Max. clamping range: | 1.5 mm² |
tested acc. to standard: | IEC 60664-1, IEC 61984 |
Packaging: | Reel |
VPE length: | 610 mm |
VPE width: | 610 mm |
VPE height: | 50 mm |
ETIM 6.0: | EC000796 |
ETIM 7.0: | EC000796 |
eClass 9.0: | 27-44-02-04 |
eClass 9.1: | 27-44-02-04 |
eClass 10.0: | 27-44-02-04 |
UNSPSC: | 30-21-18-01 |
IPC conformity: | Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request. |
ROHS: | Conform |
ECCN: | |
Country of Origin: | DE |
EAN: | 4032248740048 |
Weight: | 0.00 kg |
Length: | 0.00 m |
Width: | 0.00 m |
Height: | 0.00 m |
