0478900000
GSE 10/3/180 4.5GR
Request a Quote
Image copyright: Weidmueller

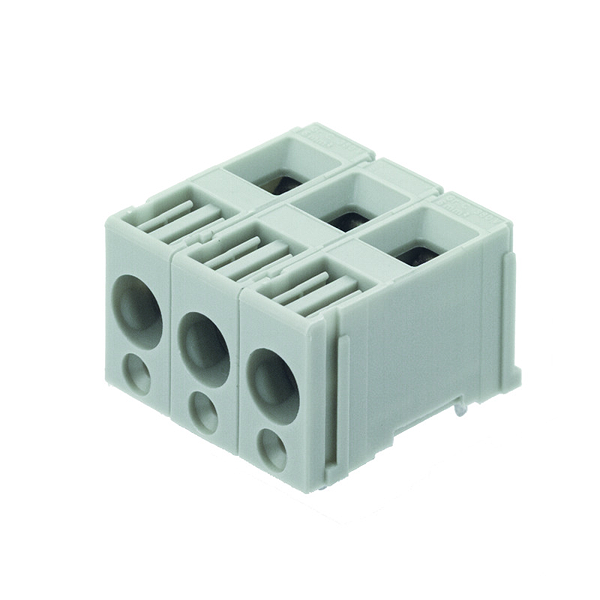

Weidmueller 0478900000
GSE 10/3/180 4.5GR
2492120000
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Delivery status: | This article will no longer be available in the future. |
| Available until: | 2022-12-31 |
| Type: | GSE 10/3/180 4.5GR |
| Order No.: | 0478900000 |
| Version: | Printed circuit board terminals, 10.16 mm, Number of poles: 3, 180°, Solder pin length (l): 4.5 mm, tinned, Pebble grey, Clamping yoke connection, Clamping range, max. : 11 mm², Box |
| GTIN (EAN): | 4008190134389 |
| Qty.: | 20 pc(s). |
| Packaging: | Box |
| Net weight: | 29.55 g |
| Product family: | GSE |
| Wire connection method: | Clamping yoke connection |
| Mounting onto the PCB: | THT solder connection |
| Conductor outlet direction: | 180° |
| Pitch in mm (P): | 10.16 mm |
| Pitch in inches (P): | 0.4 inch |
| Number of poles: | 3 |
| Fitted by customer: | Yes |
| Number of rows: | 1 |
| Max. adjacent poles per row: | 10 |
| Solder pin length (l): | 4.5 mm |
| Solder pin dimensions: | 1.4 x 1.4 mm |
| Solder eyelet hole diameter (D): | 1.6 mm |
| Solder eyelet hole diameter tolerance (D): | + 0,1 mm |
| Number of solder pins per pole: | 2 |
| Screwdriver blade: | 1.0 x 5.5 |
| Screwdriver blade standard: | DIN 5264-A |
| Tightening torque, min.: | 1.2 Nm |
| Tightening torque, max.: | 1.2 Nm |
| Clamping screw: | M 4 |
| Stripping length: | 10 mm |
| L1 in mm: | 20.32 mm |
| L1 in inches: | 0.8 inch |
| Touch-safe protection acc. to DIN VDE 0470: | IP 20 |
| Insulating material: | PA |
| Colour: | Pebble grey |
| Colour chart (similar): | RAL 7032 |
| Insulating material group: | I |
| Comparative Tracking Index (CTI): | ≥ 600 |
| UL 94 flammability rating: | V-2 |
| Contact material: | E-Cu |
| Contact surface: | tinned |
| Storage temperature, min.: | -25 °C |
| Storage temperature, max.: | 50 °C |
| Max. relative humidity during storage: | 70 % |
| Operating temperature, min.: | -50 °C |
| Operating temperature, max.: | 100 °C |
| Temperature range, installation, min.: | -25 °C |
| Temperature range, installation, max.: | 100 °C |
| Clamping range, min.: | 0.13 mm² |
| Clamping range, max.: | 11 mm² |
| Wire connection cross section AWG, min.: | AWG 26 |
| Wire connection cross section AWG, max.: | AWG 8 |
| Solid, min. H05(07) V-U: | 0.5 mm² |
| Solid, max. H05(07) V-U: | 10 mm² |
| Stranded, min. H07V-R: | 6 mm² |
| Stranded, max. H07V-R: | 10 mm² |
| Flexible, min. H05(07) V-K: | 0.5 mm² |
| Flexible, max. H05(07) V-K: | 10 mm² |
| w. plastic collar ferrule, DIN 46228 pt 4, min.: | 0.75 mm² |
| w. plastic collar ferrule, DIN 46228 pt 4, max.: | 4 mm² |
| w. wire end ferrule, DIN 46228 pt 1, min.: | 0.75 mm² |
| w. wire end ferrule, DIN 46228 pt 1, max.: | 4 mm² |
| Reference text: | Length of ferrules is to be chosen depending on the product and the rated voltage., The outside diameter of the plastic collar should not be larger than the pitch (P) |
| Max. clamping range: | 11 mm² |
| tested acc. to standard: | IEC 60664-1, IEC 61984 |
| Rated current, min. number of poles (Tu=20°C): | 57 A |
| Rated current, max. number of poles (Tu=20°C): | 40 A |
| Rated current, min. number of poles (Tu=40°C): | 57 A |
| Rated current, max. number of poles (Tu=40°C): | 34 A |
| Rated voltage for surge voltage class / pollution degree II/2: | 1,000 V |
| Rated voltage for surge voltage class / pollution degree III/2: | 500 V |
| Rated voltage for surge voltage class / pollution degree III/3: | 400 V |
| Rated impulse voltage for surge voltage class/ pollution degree II/2: | 6 kV |
| Rated impulse voltage for surge voltage class/ pollution degree III/2: | 6 kV |
| Rated impulse voltage for surge voltage class/ contamination degree III/3: | 6 kV |
| Certificate No. (CSA): | 12400-250 |
| Rated voltage (Use group B / CSA): | 300 V |
| Rated voltage (Use group D / CSA): | 300 V |
| Rated current (Use group B / CSA): | 40 A |
| Rated current (Use group D / CSA): | 10 A |
| Wire cross-section, AWG, min.: | AWG 26 |
| Wire cross-section, AWG, max.: | AWG 8 |
| Reference to approval values: | Specifications are maximum values, details - see approval certificate. |
| Certificate No. (UR): | E60693 |
| Rated voltage (Use group B / UL 1059): | 300 V |
| Rated voltage (Use group C / UL 1059): | 150 V |
| Rated voltage (Use group D / UL 1059): | 300 V |
| Rated current (Use group B / UL 1059): | 40 A |
| Rated current (Use group C / UL 1059): | 40 A |
| Rated current (Use group D / UL 1059): | 10 A |
| Wire cross-section, AWG, min.: | AWG 26 |
| Wire cross-section, AWG, max.: | AWG 8 |
| Reference to approval values: | Specifications are maximum values, details - see approval certificate. |
| Packaging: | Box |
| VPE length: | 67 mm |
| VPE width: | 106 mm |
| VPE height: | 136 mm |
| ETIM 6.0: | EC002643 |
| ETIM 7.0: | EC002643 |
| eClass 9.0: | 27-44-04-01 |
| eClass 9.1: | 27-44-04-01 |
| eClass 10.0: | 27-44-04-01 |
| UNSPSC: | 30-21-18-01 |
| IPC conformity: | Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request. |
| ROHS: | Conform |
| Delivery status: | This article will no longer be available in the future. |
| Available until: | 2022-12-31 |
| Type: | GSE 10/3/180 4.5GR |
| Order No.: | 0478900000 |
| Version: | Printed circuit board terminals, 10.16 mm, Number of poles: 3, 180°, Solder pin length (l): 4.5 mm, tinned, Pebble grey, Clamping yoke connection, Clamping range, max. : 11 mm², Box |
| GTIN (EAN): | 4008190134389 |
| Qty.: | 20 pc(s). |
| Packaging: | Box |
| Net weight: | 29.55 g |
| Product family: | GSE |
| Wire connection method: | Clamping yoke connection |
| Mounting onto the PCB: | THT solder connection |
| Conductor outlet direction: | 180° |
| Pitch in mm (P): | 10.16 mm |
| Pitch in inches (P): | 0.4 inch |
| Number of poles: | 3 |
| Fitted by customer: | Yes |
| Number of rows: | 1 |
| Max. adjacent poles per row: | 10 |
| Solder pin length (l): | 4.5 mm |
| Solder pin dimensions: | 1.4 x 1.4 mm |
| Solder eyelet hole diameter (D): | 1.6 mm |
| Solder eyelet hole diameter tolerance (D): | + 0,1 mm |
| Number of solder pins per pole: | 2 |
| Screwdriver blade: | 1.0 x 5.5 |
| Screwdriver blade standard: | DIN 5264-A |
| Tightening torque, min.: | 1.2 Nm |
| Tightening torque, max.: | 1.2 Nm |
| Clamping screw: | M 4 |
| Stripping length: | 10 mm |
| L1 in mm: | 20.32 mm |
| L1 in inches: | 0.8 inch |
| Touch-safe protection acc. to DIN VDE 0470: | IP 20 |
| Insulating material: | PA |
| Colour: | Pebble grey |
| Colour chart (similar): | RAL 7032 |
| Insulating material group: | I |
| Comparative Tracking Index (CTI): | ≥ 600 |
| UL 94 flammability rating: | V-2 |
| Contact material: | E-Cu |
| Contact surface: | tinned |
| Storage temperature, min.: | -25 °C |
| Storage temperature, max.: | 50 °C |
| Max. relative humidity during storage: | 70 % |
| Operating temperature, min.: | -50 °C |
| Operating temperature, max.: | 100 °C |
| Temperature range, installation, min.: | -25 °C |
| Temperature range, installation, max.: | 100 °C |
| Clamping range, min.: | 0.13 mm² |
| Clamping range, max.: | 11 mm² |
| Wire connection cross section AWG, min.: | AWG 26 |
| Wire connection cross section AWG, max.: | AWG 8 |
| Solid, min. H05(07) V-U: | 0.5 mm² |
| Solid, max. H05(07) V-U: | 10 mm² |
| Stranded, min. H07V-R: | 6 mm² |
| Stranded, max. H07V-R: | 10 mm² |
| Flexible, min. H05(07) V-K: | 0.5 mm² |
| Flexible, max. H05(07) V-K: | 10 mm² |
| w. plastic collar ferrule, DIN 46228 pt 4, min.: | 0.75 mm² |
| w. plastic collar ferrule, DIN 46228 pt 4, max.: | 4 mm² |
| w. wire end ferrule, DIN 46228 pt 1, min.: | 0.75 mm² |
| w. wire end ferrule, DIN 46228 pt 1, max.: | 4 mm² |
| Reference text: | Length of ferrules is to be chosen depending on the product and the rated voltage., The outside diameter of the plastic collar should not be larger than the pitch (P) |
| Max. clamping range: | 11 mm² |
| tested acc. to standard: | IEC 60664-1, IEC 61984 |
| Rated current, min. number of poles (Tu=20°C): | 57 A |
| Rated current, max. number of poles (Tu=20°C): | 40 A |
| Rated current, min. number of poles (Tu=40°C): | 57 A |
| Rated current, max. number of poles (Tu=40°C): | 34 A |
| Rated voltage for surge voltage class / pollution degree II/2: | 1,000 V |
| Rated voltage for surge voltage class / pollution degree III/2: | 500 V |
| Rated voltage for surge voltage class / pollution degree III/3: | 400 V |
| Rated impulse voltage for surge voltage class/ pollution degree II/2: | 6 kV |
| Rated impulse voltage for surge voltage class/ pollution degree III/2: | 6 kV |
| Rated impulse voltage for surge voltage class/ contamination degree III/3: | 6 kV |
| Certificate No. (CSA): | 12400-250 |
| Rated voltage (Use group B / CSA): | 300 V |
| Rated voltage (Use group D / CSA): | 300 V |
| Rated current (Use group B / CSA): | 40 A |
| Rated current (Use group D / CSA): | 10 A |
| Wire cross-section, AWG, min.: | AWG 26 |
| Wire cross-section, AWG, max.: | AWG 8 |
| Reference to approval values: | Specifications are maximum values, details - see approval certificate. |
| Certificate No. (UR): | E60693 |
| Rated voltage (Use group B / UL 1059): | 300 V |
| Rated voltage (Use group C / UL 1059): | 150 V |
| Rated voltage (Use group D / UL 1059): | 300 V |
| Rated current (Use group B / UL 1059): | 40 A |
| Rated current (Use group C / UL 1059): | 40 A |
| Rated current (Use group D / UL 1059): | 10 A |
| Wire cross-section, AWG, min.: | AWG 26 |
| Wire cross-section, AWG, max.: | AWG 8 |
| Reference to approval values: | Specifications are maximum values, details - see approval certificate. |
| Packaging: | Box |
| VPE length: | 67 mm |
| VPE width: | 106 mm |
| VPE height: | 136 mm |
| ETIM 6.0: | EC002643 |
| ETIM 7.0: | EC002643 |
| eClass 9.0: | 27-44-04-01 |
| eClass 9.1: | 27-44-04-01 |
| eClass 10.0: | 27-44-04-01 |
| UNSPSC: | 30-21-18-01 |
| IPC conformity: | Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request. |
| ROHS: | Conform |
