Product
Telco
7672
SPT-2645-J
Request a Quote

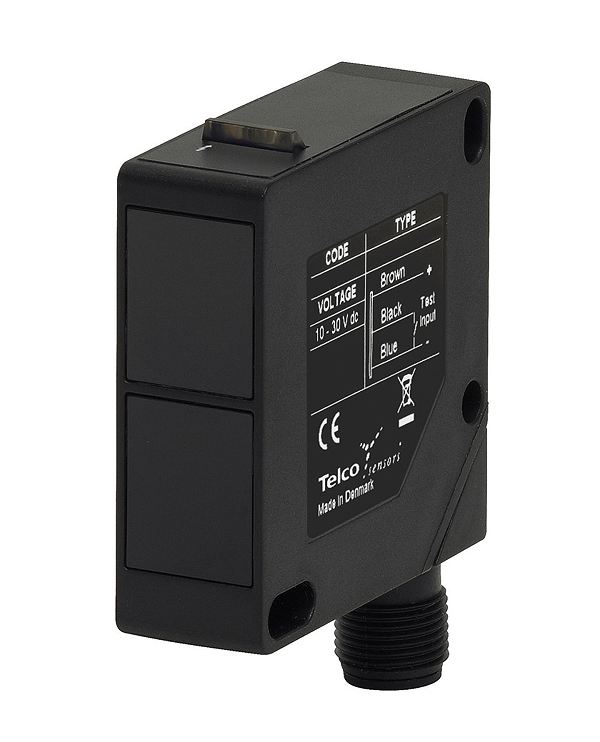

Image copyright: Telco
Telco 7672
SPT-2645-J
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Operation Mode: | Thru Beam |
| Function: | Receiver |
| Supply Voltage: | 10 - 30 V dc |
| Control Feature: | Sensitivity pot. and light/dark switch |
| Sensing Range: | 45 m |
| Output: | NPN/PNP |
| Output Status: | N.C./N.O. |
| Housing: | 17 x 50 x 50 |
| Housing Material: | Plastic |
| Connection: | 4 pin, M12 plug |
| Operation Mode: | Thru Beam |
| Function: | Receiver |
| Supply Voltage: | 10 - 30 V dc |
| Control Feature: | Sensitivity pot. and light/dark switch |
| Sensing Range: | 45 m |
| Output: | NPN/PNP |
| Output Status: | N.C./N.O. |
| Timer: | On/Off Delay |
| Housing: | 17 x 50 x 50 |
| Housing Material: | Plastic |
| Connection: | 4 pin, M12 plug |
| Operation Mode: | Thru Beam |
| Function: | Transmitter |
| Supply Voltage: | 10 - 30 V dc |
| Light Source: | Infrared (880 nm) |
| Control Feature: | Test input |
| Sensing Range: | 45 m |
| Housing: | 17 x 50 x 50 |
| Housing Material: | Plastic |
| Connection: | 4 pin, M12 plug |
| Supply Voltage: | 10 – 30 V dc |
| Voltage Ripple: | +/– 15 % |
| Reverse Polarity Protected: | Yes |
| Current Consumption: | < 65 mA |
| Test Input: | Yes |
| Power On Indicator: | Green LED |
| Light Source: | Infrared (880 nm) |
| Emission Angle: | +/– 2° |
| Housing Material, Front Lens: | Polycarbonate |
| Housing Material, Sensor Housing: | Polycarbonate / ABS |
| Cable: | 3 x 0,20 mm2 |
| Cable Sleeve: | PVC Ø 4,9 mm |
| Vibration: | 10 – 55 Hz, 0.5 mm |
| Shock: | 30 g |
| Operation Temperature: | –20 to +55 °C |
| Storage Temperature: | –40 to +80 °C |
| Sealing Class: | IP 67 |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
