Rechner Sensors
KA1534
Request a Quote

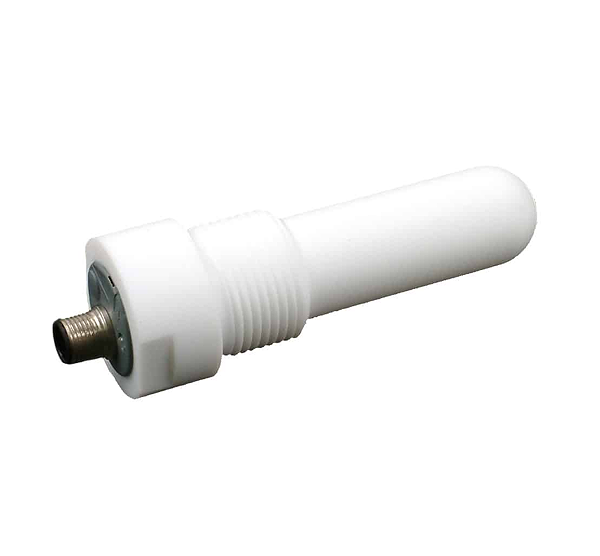

Image copyright: Rechner Sensors
Rechner Sensors KA1534
KAS-80-26/113-A-G1-PTFE-IOL-Y10-ETW-HP
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Capacitive Sensors for Food and Pharma. The S26 series include a large number of sensors with housing materials that can be in contact with food or pharmaceutical products. In addition, there are variants that are equipped with IO-Link. Capacitive Sensors – S26. Series 80 – PNP –. Type of construction G 1”. Housing material: PTFE. With flange connector M 12 x 1. Operating distance adjustable with EasyTeach by Wire. Optical guidance during the teach process with the aid of a 2-colour LED
Downloads
Technical parameters
| Thread / Process connection: | G 1" |
| Housing material active surface: | PTFE (FDA 21 CFR 177.1550) |
| Housing material: | PTFE (FDA 21 CFR 177.1550) |
| Housing material lid: | PA |
| Electrical version: | 4-Polig DC |
| Operating current (Ie): | 2 x 0…100 mA |
| Voltage drop max. (Ud): | ≤ 2 V |
| Permitted residual ripple max.: | 10% |
| Noload current (Io): | Typ. 15 mA |
| Frequency of operating cycles max.: | 50 Hz |
| LEDdisplay: | Grün / Gelb |
| Protective circuit: | Eingebaut |
| Degree of protection IEC 60529: | IP 67 |
| Norm: | EN 60947-5-2 |
| Media optimized: | JA |
| Quattro Protect: | JA |
| Sensing dinstance Sn: | produktberuehrend-mediumabhaengig-einstellbar |
| Operating distance min. / max. adjustable: | 0…20 mm |
| Operating voltage: | 10…35 V DC |
| Permitted ambient temperature min.: | -25 °C |
| Permitted ambient temperature max.: | +70 °C |
| CIP / SIP: | CIP / SIP 121°C |
| Installation: | Nichtbündig |
| Output function: | Antivalent (S + Ö) |
| Output signal: | PNP |
| Connection: | Steckerflansch M 12 x 1 |
| CE: | JA |
| RoHS: | JA |
| UL CSA certification: | JA |
| MTTF: | 439,42 Jahre |
| WHG certification: | Auf Anfrage |
