Rechner Sensors
KA1530
Request a Quote

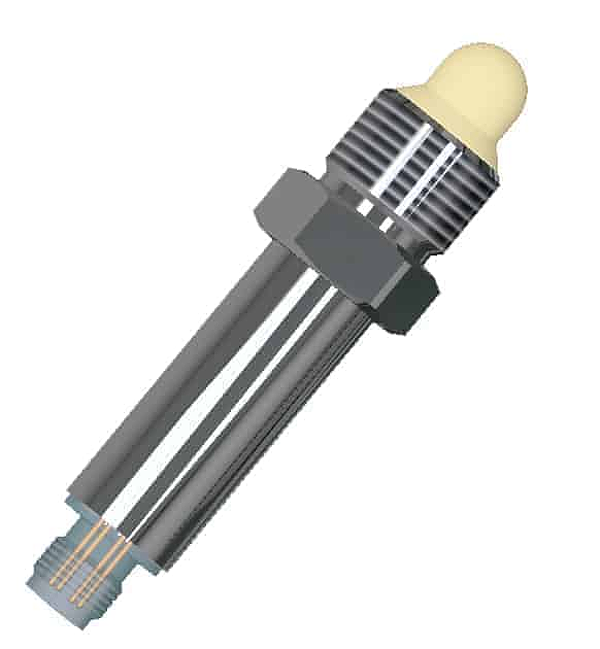

Image copyright: Rechner Sensors
Rechner Sensors KA1530
KS-801-26/86-S-G1/2-PEEK/VAb-Y3-ETW-HP
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
LevelMaster xs . Capacitive Sensors – S26. Model G 1/2“. For level control of conductive and/or viscous liquids or pastes, for instance oil, water,, ketchup or honey. Ideal for level control in the Food Industry or Pharmaceutical Industry. Housing material: Stainless steel VA No. 1.4305 (AISI 303). Adjustment of the sensitivity with ETW- Function (EasyTeach by wire). With flange connector M 12 x 1. Welding sockets and Varivent adapter available for EHEDG conform mounting.
Downloads
Technical parameters
| Thread / Process connection: | G 1/2" |
| Housing material active surface: | PEEK (FDA 21 CFR 177.2415) |
| Housing material: | Edelstahl Nr. 1.4305 |
| Electrical version: | 3-Polig DC |
| Operating current (Ie): | 0…250 mA |
| Voltage drop max. (Ud): | ≤ 2 V |
| Permitted residual ripple max.: | 10% |
| Noload current (Io): | Typ. 30 mA |
| Frequency of operating cycles max.: | 1 Hz |
| LEDdisplay: | Grün / Orange |
| Protective circuit: | Eingebaut |
| Degree of protection IEC 60529: | IP 67 |
| Norm: | EN 60947-5-2 |
| Sensitivity: | Er > 1,25 |
| Pressure: | 10 bar |
| Media optimized: | JA |
| Quattro Protect: | JA |
| Sensing dinstance Sn: | produktberuehrend-mediumabhaengig-einstellbar |
| Operating voltage: | 10…35 V DC |
| Permitted ambient temperature min.: | 0 °C |
| Permitted ambient temperature max.: | +70 °C |
| CIP / SIP: | CIP / SIP 121°C |
| Installation: | Nichtbündig |
| Output function: | Schließer |
| Output signal: | PNP |
| Connection: | Steckerflansch M 12 x 1 |
| CE: | JA |
| RoHS: | JA |
| MTTF: | 459,21 Jahre |
| WHG certification: | Auf Anfrage |
