Rechner Sensors
KA0932
Request a Quote

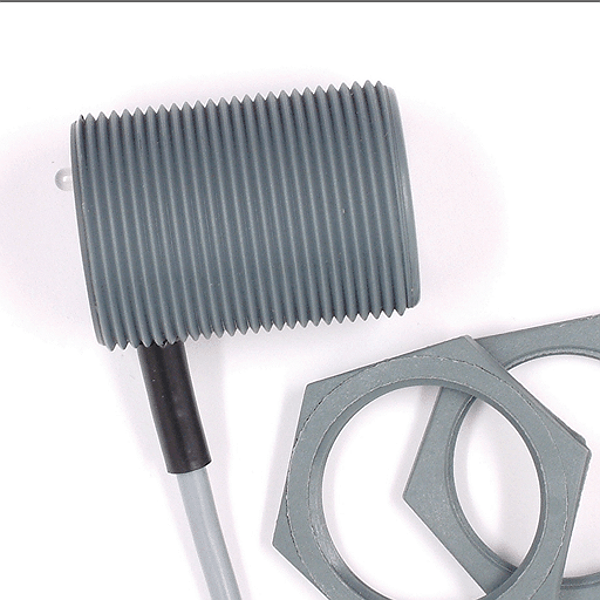

Image copyright: Rechner Sensors
Rechner Sensors KA0932
KAS-80-A14/40-S-M30-PPO-Z02-1-NL
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Capacitive Sensors. Series 80 – PNP. Housing M 30 x 1.5. Capacitive sensor for level and position control. Housing material: PA / PPO. Sensing distance 0.5…25 mm adjustable
Downloads
Technical parameters
| Thread / Process connection: | M 30 x 1,5 |
| Housing material active surface: | PPO |
| Housing material: | PPO |
| Housing material lid: | PVC |
| Electrical version: | 3-Leiter DC |
| Operating current (Ie): | 0…200 mA |
| Voltage drop max. (Ud): | ≤ 2 V |
| Permitted residual ripple max.: | 5% |
| Noload current (Io): | Typ. 15 mA |
| Frequency of operating cycles max.: | 200 Hz |
| LEDdisplay: | Gelb |
| Protective circuit: | Eingebaut |
| Degree of protection IEC 60529: | IP 67 (mit versiegelter Potentiometerschraube) |
| Norm: | EN 60947-5-2 |
| Sensing dinstance Sn: | 10 mm |
| Operating distance min. / max. adjustable: | 2…20 mm |
| Operating voltage: | 12…30 V DC |
| Permitted ambient temperature min.: | -25 °C |
| Permitted ambient temperature max.: | +70 °C |
| Installation: | Bündig |
| Output function: | Schließer |
| Output signal: | PNP |
| Cable length: | 2 m |
| Connection: | PUR-Kabel, 3 x 0,14 mm² |
| CE: | JA |
| RoHS: | JA |
| UL CSA certification: | JA |
| MTTF: | 2714,31 Jahre |
| WHG certification: | Auf Anfrage |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
