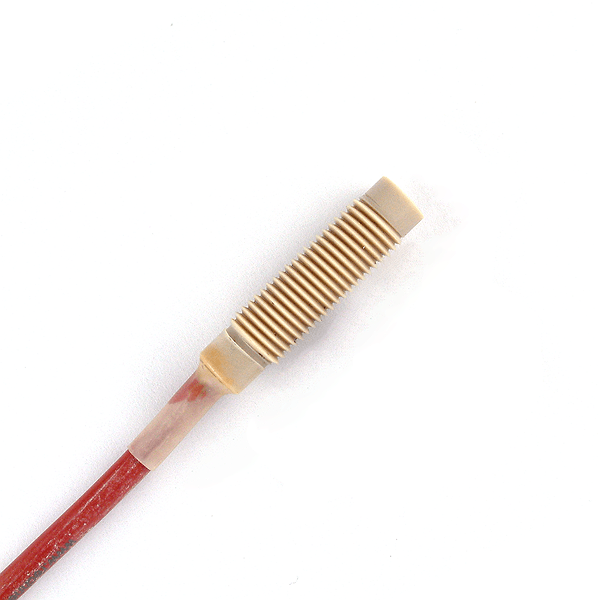

Image copyright: Rechner Sensors
Rechner Sensors KA0293
KAS-42-M8/30-N-M8-PEEK-Z0E-0
KAS-40-M8/30-N-PEEK, 0,25 m
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Capacitive Sensors. Series 42 – NAMUR EN 60947-5-6. Housing M 8 x 1. Capacitive sensor for level and position control. Housing material: PEEK. Sensing distance 0.7…1.5 mm adjustable, if used in connection with the switching amplifier TS-120…. Special version with 250 mm silicone cable and PVDF shrink sleeve at the cable exit
Downloads
Technical parameters
| Thread / Process connection: | M 8 x 1 |
| Housing material active surface: | PEEK (FDA 21 CFR 177.2415) |
| Housing material: | PEEK (FDA 21 CFR 177.2415) |
| Electrical version: | 2-Leiter DC |
| Permitted residual ripple max.: | 5% |
| Frequency of operating cycles max.: | 50 Hz |
| Protective circuit: | Eingebaut |
| Degree of protection IEC 60529: | IP 67 |
| Norm: | EN 60947-5-6 |
| Selfinductance (L): | 0,2 mH |
| Selfcapacitance (C): | 250 nF |
| Operating current active surface free: | < typ. 1,5 mA |
| Operating current active surface covered: | > typ. 2,5 mA |
| Sensing dinstance Sn: | 1 mm |
| Operating distance min. / max. adjustable: | 0,7…1,5 mm |
| Operating voltage: | 5…10 V DC |
| Permitted ambient temperature min.: | -25 °C |
| Permitted ambient temperature max.: | +70 °C |
| Installation: | Nichtbündig |
| Output function: | NAMUR |
| Cable length: | 2 m |
| Connection: | Silikon-Kabel, 2 x 0,22 mm² |
| CE: | JA |
| RoHS: | JA |
| UL CSA certification: | JA |
| MTTF: | 5568,54 Jahre |
| WHG certification: | Auf Anfrage |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
