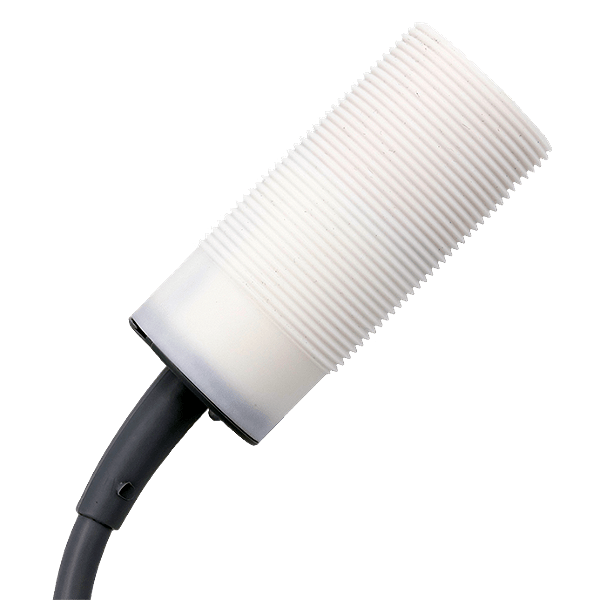

Image copyright: Rechner Sensors
Rechner Sensors KA0049
KAS-80-A14-A-M30-PTFE-100C-Z02-1-HP
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Capacitive Sensors. Series 80 – PNP. Housing M 30 x 1,5. Housing material: PTFE. Ideal for detection of chemically aggressive media. Suitable for food applications. Sensing distance 0,5…25 mm adjustable. Option: Total chemical resistance is given when ordering the sensor, with PTFE cable and PTFE protection set Art.-No. 196302. 100°C / 212°F
Downloads
Technical parameters
| Thread / Process connection: | M 30 x 1,5 |
| Housing material active surface: | PTFE (FDA 21 CFR 177.1550) |
| Housing material: | PTFE (FDA 21 CFR 177.1550) |
| Housing material lid: | PA |
| Electrical version: | 4-Leiter DC |
| Operating current (Ie): | 2 x 0…200 mA |
| Voltage drop max. (Ud): | ≤ 2 V |
| Permitted residual ripple max.: | 10% |
| Noload current (Io): | Typ. 15 mA |
| Frequency of operating cycles max.: | 200 Hz |
| LEDdisplay: | Grün / Gelb |
| Protective circuit: | Eingebaut |
| Degree of protection IEC 60529: | IP 67 (mit versiegelter Potentiometerschraube) |
| Norm: | EN 60947-5-2 |
| Media optimized: | JA |
| Quattro Protect: | JA |
| Sensing dinstance Sn: | 10 mm |
| Operating distance min. / max. adjustable: | 0,5…25 mm |
| Operating voltage: | 10…35 V DC |
| Permitted ambient temperature min.: | -25 °C |
| Permitted ambient temperature max.: | +100 °C |
| Installation: | Bündig |
| Output function: | Antivalent (S + Ö) |
| Output signal: | PNP |
| Cable length: | 2 m |
| Connection: | PVC-Kabel, 4 x 0,34 mm² |
| CE: | JA |
| RoHS: | JA |
| UL CSA certification: | JA |
| MTTF: | 3928,69 Jahre |
| WHG certification: | Auf Anfrage |
