Product
Rechner Sensors
552100
Request a Quote
Image copyright: Rechner Sensors

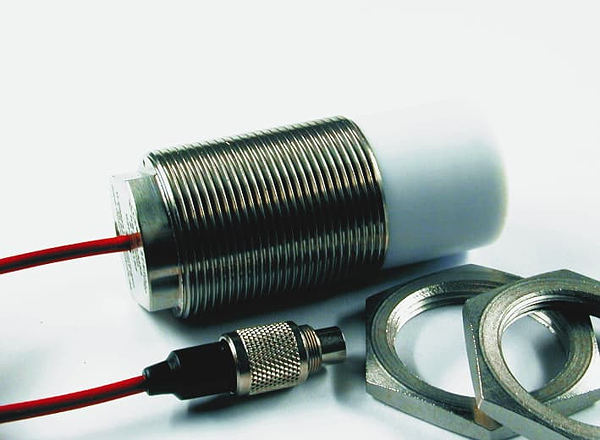

Rechner Sensors 552100
IS-250-M32/65-X-M32-PTFE/VAb-250C-X02/Y22-0
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Inductive High-Temperature Sensors. Series – 250. Housing M 32 x 1.5. For connection to the evaluation unit ISA-250…. Housing material: Stainless steel VA No. 1.4305 (AISI 303). For an ambient temperature of max. 250°C / 482°F
Downloads
Technical parameters
| Thread / Process connection: | M 32 x 1,5 |
| Housing material active surface: | PTFE (FDA 21 CFR 177.1550) |
| Housing material: | Edelstahl Nr. 1.4305 |
| Housing material lid: | PA / PPO |
| Protective circuit: | Eingebaut |
| Degree of protection IEC 60529: | IP 67 |
| Norm: | EN 60947-5-2 |
| Sensing dinstance Sn: | 15 mm |
| Permitted ambient temperature min.: | -70 °C |
| Permitted ambient temperature max.: | +250 °C |
| Installation: | Nichtbündig |
| Output function: | siehe Auswertegerät |
| Output signal: | siehe Auswertegerät |
| Cable length: | 2 m |
| Connection: | PTFE-Kabel, 2 x 0,22 mm², geschirmt |
| Connection to probe: | Y22 |
| CE: | JA |
| RoHS: | JA |
| WHG certification: | Auf Anfrage |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
