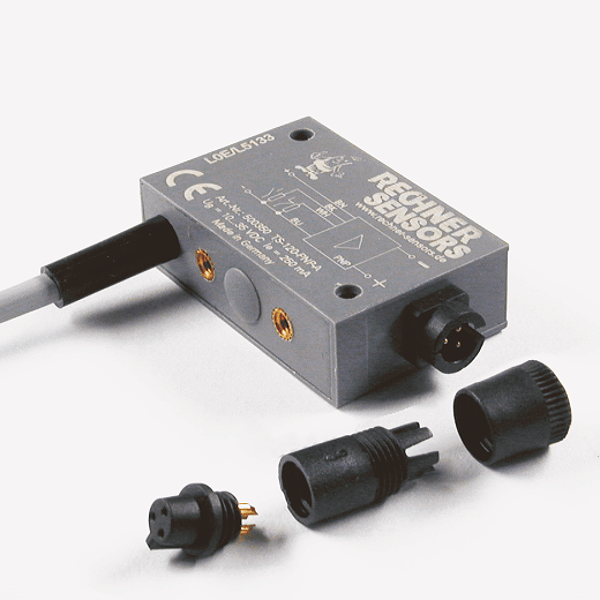

Rechner Sensors 500350
TS-120-PNP-A
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Transistor Amplifier. Series – PNP. Not permitted for use in Ex area. For use with our capacitive MINI-sensors KAS-42-…
Downloads
Technical parameters
| Thread / Process connection: | 40 x 26 x 12 mm |
| Housing material: | PA |
| Electrical version: | 4-Leiter DC |
| Operating current (Ie): | 2 x 0…250 mA |
| Permitted residual ripple max.: | 10% |
| Frequency of operating cycles max.: | 2 kHz |
| LEDdisplay: | Grün / Gelb |
| Degree of protection IEC 60529: | IP 65 |
| Norm: | EN 60947-5-2 |
| Operating voltage: | 10…35 V DC |
| Permitted ambient temperature min.: | -25 °C |
| Permitted ambient temperature max.: | +70 °C |
| Output function: | Antivalent (S + Ö) |
| Output signal: | PNP |
| Cable length: | 2 m |
| Connection: | PVC-Kabel, 4 x 0,14 mm² |
| CE: | JA |
| RoHS: | JA |
| MTTF: | 1714,6 Jahre |
| WHG certification: | Auf Anfrage |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
