Pulsotronic
08430381001
STE060PA-L
Request a Quote
Image copyright: Pulsotronic
Pulsotronic 08430381001
STE060PA-L
Touch Sensor
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Downloads
Technical parameters
| Name: | STE060PA-L |
| Order number: | 08430381001 |
| Switch type: | N.O. |
| Signal Type: | mechanical contact |
| Connection: | Cable 2m |
| Connection diagramm: | |

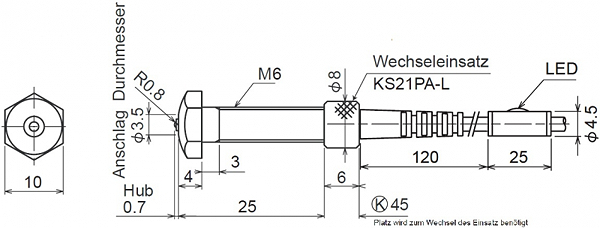

| Dimension (in mm): | fine-pitch thread M6x1,25 x l = 31,7 |
| art_gewicht: | 40 g |
| Operating voltage: | 5 - 24 V DC |
| Max. load current: | 10 mA |
| Switching hysterese: | 0 |
| Operating temperature: | 0 ° C to 80 ° C |
| Temperature drift: | 0 |
| Repeat accuracy: | 0,01 mm (at operating speed 50 ... 200 mm/min) |
| Swiching state: | LED |
| Stroke: | 0,7 mm |
| Pre-travel: | 0,4 mm |
| Accuracy: | 0,01 mm |
| Probe tip: | Zylinder 1,5/R 0,8 |
| Probe tip material: | Edelstahl |
| Static load: | 5000 N |
| Operation load: | 2 N |
| art_ttl_mech: | 10 millions cycles |
| Protection category: | IP65 |
| Wiring: | Zweidraht/ Two wire |
| Housing material: | Stainless steel V2A |
| Termination: | cable 2m, 2 wire, Ø2.8 mm, oilresistant |
| Approach direction: | axial |
| Errors and omissions exceptet: |
