Product
Pulsotronic
08430271012
PT5M3CB
Request a Quote
Image copyright: Pulsotronic
Pulsotronic 08430271012
PT5M3CB
Touch Sensor
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Downloads
Technical parameters
| Name: | PT5M3CB |
| Order number: | 08430271012 |
| Switch type: | N.C. |
| Signal Type: | mechanical contact |
| Connection: | Cable 2m |

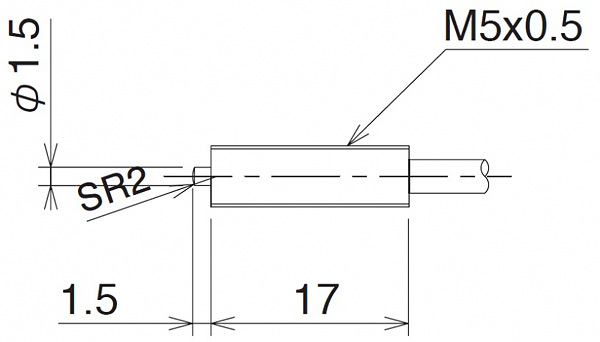

| Dimension (in mm): | fine-pitch thread M5x0,5 x l = 18,5 |
| art_gewicht: | 36 g |
| Operating voltage: | 5 - 24 V DC |
| Max. load current: | 10 mA |
| Switching hysterese: | 0 |
| Operating temperature: | 0 ° C to 80 ° C |
| Temperature drift: | 0 |
| Repeat accuracy: | 0,003 mm (at operating speed 50 ... 200 mm/ min) |
| Stroke: | 1,5 mm |
| Pre-travel: | 0 mm |
| Accuracy: | 0,003 mm |
| Probe tip: | Zylinder 1,5/R 2,0 |
| Probe tip material: | Edelstahl |
| Operation load: | 0,5 N |
| art_ttl_mech: | 3 millions cycles |
| Protection category: | IP40 |
| Wiring: | Zweidraht/ Two wire |
| Housing material: | Stainless steel V2A |
| Termination: | cable 2 m, 2 wire, Ø 2.8 mm, oil resistant |
| Approach direction: | axial |
| Errors and omissions exceptet: |
