Product
Pulsotronic
08430231002
P10MCB-L
Request a Quote

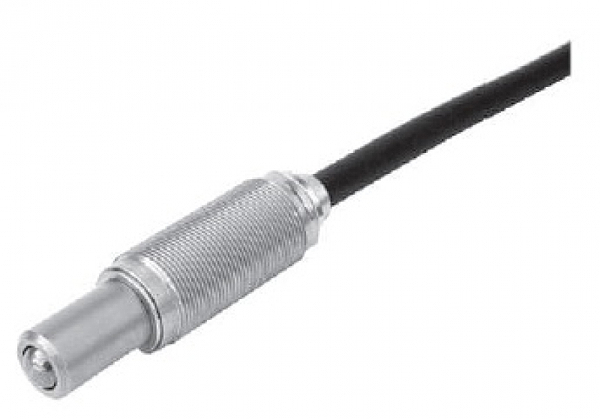

Image copyright: Pulsotronic
Pulsotronic 08430231002
P10MCB-L
Touch Sensor
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Downloads
Technical parameters
| Name: | P10MCB-L |
| Order number: | 08430231002 |
| Switch type: | N.C. |
| Signal Type: | mechanical contact |
| Connection: | Cable 3m |
| Connection diagramm: | |
| Dimension (in mm): | fine-pitch thread M10x0,5 x l = 35,9 |
| Operating voltage: | 5 - 24 V |
| Max. load current: | 10 mA |
| Switching hysterese: | 0 |
| Operating temperature: | 0 ° C to 80 ° C |
| Temperature drift: | 0 |
| Repeat accuracy: | 0,002 mm (at operating speed 50 ... 200 mm/ min) |
| Swiching state: | LED |
| Stroke: | 1,2 mm |
| Pre-travel: | 0 mm |
| Accuracy: | 0,002 mm |
| Probe tip: | Kugel 5 |
| Probe tip material: | Wolframkarbid |
| Operation load: | 1 N |
| art_ttl_mech: | 3 Mio. operating cycles |
| Protection category: | IP40 |
| Wiring: | Zweidraht/ Two wire |
| Housing material: | Stainless steel V2A |
| Termination: | cable 3 m, 2 wire, Ø 4 mm, oil resistant |
| Approach direction: | axial and radial |
| Errors and omissions exceptet: |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
