Pulsotronic 08430221002
P11DDB-DULD
Touch Sensor
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Downloads
Technical parameters
| Name: | P11DDB-DULD |
| Order number: | 08430221002 |
| Switch type: | N.C. |
| Signal Type: | mechanical contact |
| Connection: | Cable 3m |
| Connection diagramm: | |

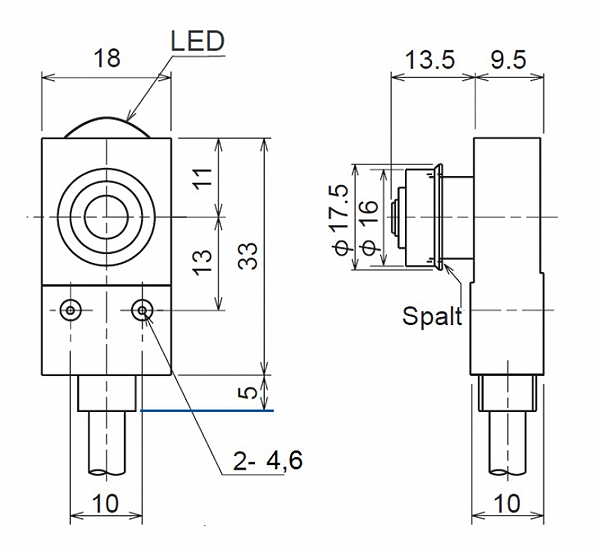

| Dimension (in mm): | Q 18 x 23 x 33 |
| art_gewicht: | 105 g |
| Operating voltage: | 5 - 24 V DC |
| Max. load current: | 10 mA |
| Switching hysterese: | 0 |
| Operating temperature: | 0 ° C to 80 ° C |
| Temperature drift: | 0 |
| Repeat accuracy: | 0,001 mm (at operating speed 50 ... 200 mm/ min) |
| Swiching state: | LED |
| Stroke: | 3 mm |
| Pre-travel: | 0 mm |
| Accuracy: | 0,00! mm |
| Probe tip: | Fläche 5 |
| Probe tip material: | Wolframkarbid |
| Operation load: | 1 N |
| art_ttl_mech: | 3 Mio. operating cycles |
| Protection category: | IP67 |
| Wiring: | Zweidraht/ Two wire |
| Termination: | cable 3 m, 2 wire, Ø 5 mm, oil resistant |
| Approach direction: | axial |
| Errors and omissions exceptet: |
