Product
Pulsotronic
08430131000
CSJ055A-L
Request a Quote

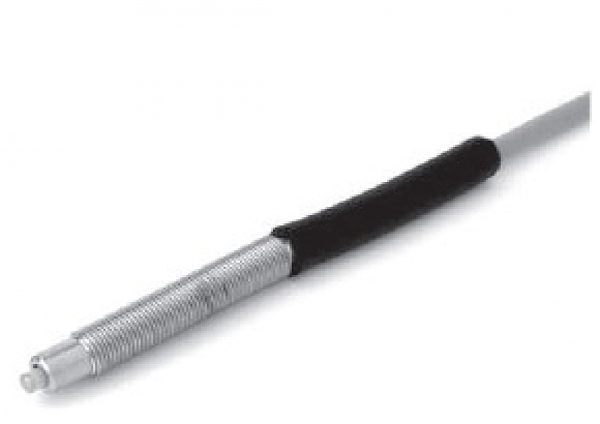

Image copyright: Pulsotronic
Pulsotronic 08430131000
CSJ055A-L
Touch Sensor
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Downloads
Technical parameters
| Name: | CSJ055A-L |
| Order number: | 08430131000 |
| Switch type: | N.O. |
| Signal Type: | mechanical contact |
| Connection: | Cable |
| Connection diagramm: | |
| Dimension (in mm): | fine-pitch thread M5x0,5 x l = 42 |
| art_gewicht: | 48 g |
| Operating voltage: | 5 - 24 V |
| Max. load current: | 10 mA |
| Switching hysterese: | 0 |
| Operating temperature: | 0 ° C to 80 ° C |
| Temperature drift: | 0 |
| Repeat accuracy: | 0,005 mm (at operating speed 50 ... 200 mm/ min) |
| Swiching state: | LED |
| Stroke: | 2 mm |
| Pre-travel: | 0,3 mm |
| Accuracy: | 0,005 mm |
| Probe tip: | Zylinder 2/R 1,5 |
| Probe tip material: | Edelstahl |
| Operation load: | 1 N |
| art_ttl_mech: | 10 Mio. operating cycles |
| Protection category: | IP65 |
| Wiring: | Zweidraht/ Two wire |
| Housing material: | Stainless steel V2A |
| Termination: | 3m cable 2 wire |
| Approach direction: | axial |
| Errors and omissions exceptet: |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
