Pulsotronic 08409861063
KURT2000-M30KB125-ANU-DPA-V2
Ultrasonic sensor
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Downloads
Technical parameters
| Name: | KURT2000-M30KB125-ANU-DPA-V2 |
| Order number: | 08409861063 |
| Matchcode: | 9986-1063 |
| art_schaltabstand_einstellbar: | yes |
| Switch type: | analog/digital |
| Signal Type: | 0-10V PNP |
| Connection: | Connector |
| Connection diagramm: | |

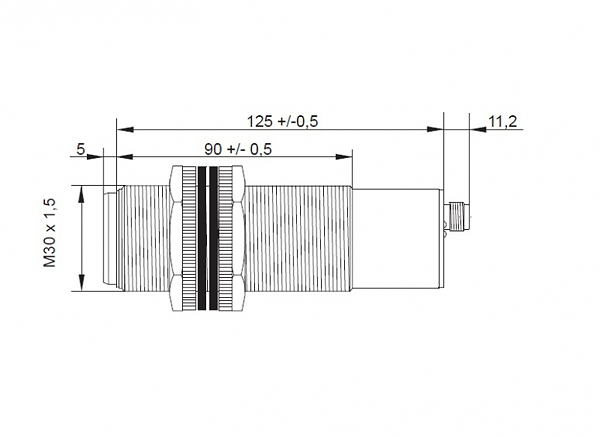

| Dimension (in mm): | M30 x 128,5 |
| Signal type: | Taster |
| Operating voltage: | 19 - 30 VDC |
| Max. load current: | 100 mA |
| Switching frequency: | 1 Hz |
| Switching hysterese: | 1 % |
| Operating temperature: | -15 ° C to 70 ° C |
| Repeat accuracy: | +/- 0,4% | +/- 2mm |
| Linearity: | 0,5 % |
| Operating state: | LED |
| Swiching state: | LED |
| Analog output: | Pulso_has1 |
| Time delay: | 300 ms |
| Carrier frequency: | 180 kHz |
| Sound beam: | ca. 8 |
| Pulse rate of rise: | teach in |
| Measuring range: | 25-200 cm |
| Short-circuit proof: | yes |
| Overload protection: | yes |
| Reverse voltage protection: | yes |
| Protection category: | IP67 |
| EMC-level: | DIN EN 60947-5-7:2004-06/DIN EN 60947-5-2:2008 |
| Housing material: | Plastic |
| Termination: | Connector M12 5pol |
| Errors and omissions exceptet: | PNP |
| Analogausgang:: | 0-10V |
| Fehler und Änderungen vorbehalten: |
