Pulsotronic 08409843200
KURT600-M18KB90-DPS
Ultrasonic sensor
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Downloads
Technical parameters
| Name: | KURT600-M18KB90-DPS |
| Order number: | 08409843200 |
| Matchcode: | 9984-3200 |
| art_schaltabstand_einstellbar: | yes |
| Switch type: | N.O. |
| Signal Type: | DC PNP |
| Connection: | Cable |
| Connection diagramm: | |

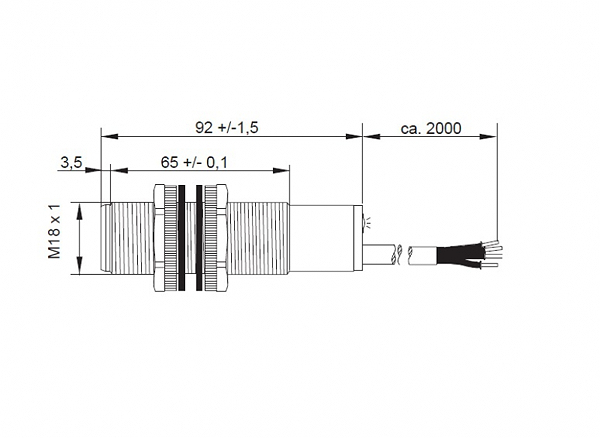

| Dimension (in mm): | M18 x 95,5 |
| Signal type: | Background suppression sensor |
| Operating voltage: | 18 - 30 VDC |
| Max. load current: | 500 mA |
| No load current: | 35 mA |
| Switching frequency: | 20 Hz |
| Switching hysterese: | 2 % |
| Operating temperature: | -15 ° C to 70 ° C |
| Repeat accuracy: | 0,2% / 0,4mm |
| Swiching state: | LED |
| Carrier frequency: | 300 kHz |
| Sound beam: | ca. 8° |
| Measuring range: | 10-60 cm |
| Short-circuit proof: | yes |
| Overload protection: | yes |
| Reverse voltage protection: | yes |
| Protection category: | IP67 |
| EMC-level: | DIN EN 60947-5-2:2008 |
| Housing material: | Plastic |
| Termination: | 2 m cable 4 pole |
| Inhibit: | Pink -> 0V |
| Synchronisation: | Pink -> Pin2 |
| Enable: | Pink not connected |
| Errors and omissions exceptet: |
