Product
Pulsotronic
08398409140
LCC-40
Request a Quote

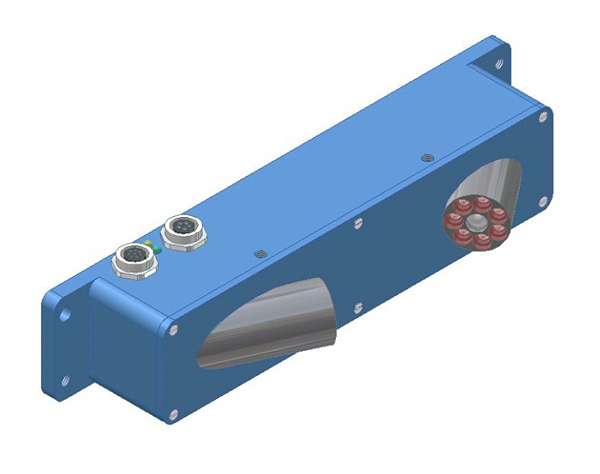

Image copyright: Pulsotronic
Pulsotronic 08398409140
LCC-40
Laser copy counter
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Downloads
Technical parameters
| Name: | LCC-40 |
| Order number: | 08398409140 |
| Switching distance: | from 35 mm to 45 mm |
| Switch type: | digital |
| Signal Type: | DC push-pull |
| Illuminant: | Laser 670 nm |
| Connection: | Socket |
| Polschema: | |
| Dimension (in mm): | Q 40 x 40 x 205 |
| Special features: | Interface RS232 |
| Operating voltage: | 12 - 30 V DC |
| Max. load current: | 100 mA |
| No load current: | ≤ 150 mA |
| Switching frequency: | 15 kHz |
| Operating temperature: | -20 ° C to 50 ° C |
| Operating state: | LED |
| Swiching state: | LED |
| Laser power adjustable: | via PC |
| Impulse delay: | via PC |
| Comparator level adjustable: | via PC |
| Sensitivity adjustable: | via PC |
| Short-circuit proof: | yes |
| Overload protection: | yes |
| Reverse voltage protection: | yes |
| Protection category: | IP54 |
| EMC-level: | DIN EN 60947-5-2 |
| Housing material: | Aluminum |
| Connection to PLC: 8-pole fem. connector Binder Ser. 712: | Pin, Color, Assignment: 1, White, GND (0V) / 2, brown, +24VDC (±10%) / 3, green, IN0 / 4, yellow, IN1 / 5, Grey, OUT0 / 6, pink, OUT1 / 7, blue, n.c. / 8, red, n.c. |
| Connection to PC: 5-pole fem. connector Binder Ser. 712: | Pin, Assignment: 1, GND (0V) / 2, TxD / 3, RxD / 4, +24V (+Ub, OUT) / 5, not connected / |
| Laser class: | laser class 2 acc. to DIN EN 60825, 1 mW max. opt. power |
| Max. product stream: | typ. 500 000 copies/h |
| Min. height of object: | typ. 0.1 mm |
| Errors and omissions exceptet: |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
