Pulsotronic 08369401500
SI-CON11-4/20
Control unit
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Downloads
Technical parameters
| Name: | SI-CON11 |
| Order number: | 08369401500 |
| Matchcode: | 9540-1500 |
| Switch type: | analog |
| Signal Type: | Analog Current/Voltage |
| Connection: | Connector |
| Polschema: | |

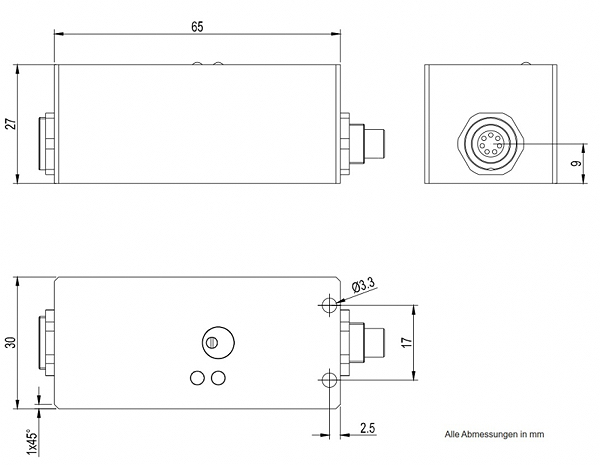

| Dimension (in mm): | Q 27 x 30 x 65 |
| Special features: | Suitable for all A-LAS sensor heads |
| Operating voltage: | 12 - 32 V DC |
| No load current: | ≤ 80 mA |
| Operating temperature: | -20 ° C to 80 ° C |
| Operating state: | LED |
| Analog bandwidth: | 200 kHz (-3dB) |
| Amplifying adjustable: | Potenziometer |
| Protection category: | IP64 |
| EMC-level: | DIN EN 60947-5-2 |
| Housing material: | Aluminum |
| Errors and omissions exceptet: |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
