Product
Pulsotronic
08363215011
KOES22M-Q64KB-DPU-V2-RT
Request a Quote
Image copyright: Pulsotronic
Pulsotronic 08363215011
KOES22M-Q64KB-DPU-V2-RT
One-way light barrier
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Downloads
Technical parameters
| Name: | KOES22M-Q64KB-DPU-V2-IR |
| Order number: | 08363215011 |
| Switch type: | Switchable |
| Signal Type: | PNP |
| Illuminant: | Infrared light 880 nm |
| Connection: | connector M12 |
| Connection diagramm: | |

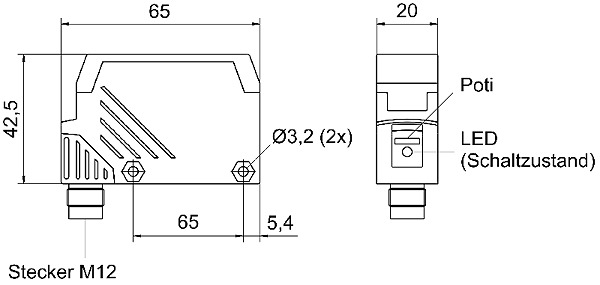

| Dimension (in mm): | Q 20 x 60 x 43 |
| Operating voltage: | 10 - 30 V DC |
| Max. load current: | 100 mA |
| No load current: | < 35 mA |
| Switching frequency: | 33 Hz |
| Operating temperature: | -25 ° C to 55 ° C |
| Swiching state: | LED |
| Measuring range: | 22 m |
| Sensitivity adjustable: | ja |
| Short-circuit proof: | yes |
| Overload protection: | yes |
| Reverse voltage protection: | yes |
| Protection category: | IP67 |
| EMC-level: | DIN EN 60947-5-2:2008 |
| Housing material: | Plastic |
| Termination: | Connector M12 4pol |
| Errors and omissions exceptet: |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
