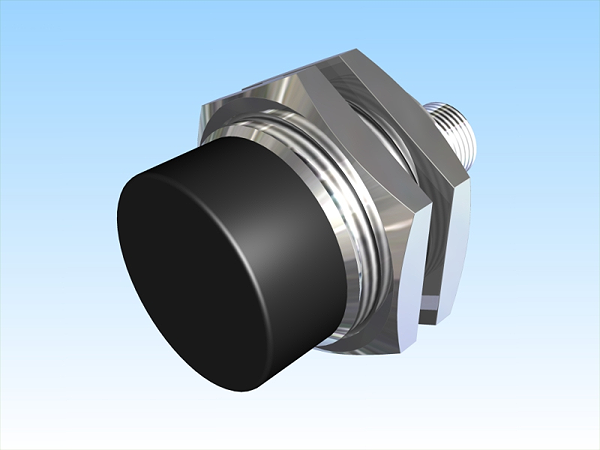

Image copyright: Pulsotronic
Pulsotronic 08317144665
KJ15-M30MN50-ANU-V2
Inductive sensor analogue
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Downloads
Technical parameters
| Name: | KJ15-M30MN50-ANU-V2 |
| Order number: | 08317144665 |
| Switching distance: | from 3 mm to 15 mm |
| Mounting: | non shielded |
| Switch type: | analog |
| Signal Type: | Analog Voltage |
| Connection: | connector M12 |
| Connection diagramm: | |
| Dimension (in mm): | fine-pitch thread M30 x 50 |
| Special features: | Output Voltage 1 ... 9 Volt |
| Operating voltage: | 11 - 35 VDC |
| Max. ripple: | ≤ 10 % |
| No load current: | ≤ 5 mA |
| Switching frequency: | 150 Hz |
| Operating temperature: | -25 ° C to 70 ° C |
| Temperature drift: | +/- 5 % |
| Repeat accuracy: | ≤ 1 % |
| Linearity: | ≤ 5 % |
| Analog output: | Pulso_has-1 |
| Time delay: | 300 ms |
| Resolution: | 0,67 V / mm |
| Protection category: | IP67 |
| EMC-level: | DIN EN 60947-5-7:2004-06 |
| Housing material: | Brass, nickel plated |
| Material active face: | PCB |
| Utilisation category: | DC 13 |
| Contact material: | CuSn |
| Contact surface material: | NiAu |
| Contact holder: | PA 6 |
| Nominal operating voltage: | 24 V DC |
| Termination: | Connector M12 4pin |
| internal load resistor: | <= 1kOhm |
| FIT / MTTF acc. to SIEMENS 29500: | 95,69 / 1193y |
| Errors and omissions exceptet: |
