Pulsotronic 08317143600
KJ9-M30MB40-ANU
Inductive sensor analogue
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Downloads
Technical parameters
| Name: | KJ9-M30MB40-ANU |
| Order number: | 08317143600 |
| Switching distance: | from 1 mm to 9 mm |
| Mounting: | shielded |
| Switch type: | analog |
| Signal Type: | Analog Voltage |
| Connection: | Cable |
| Connection diagramm: | |

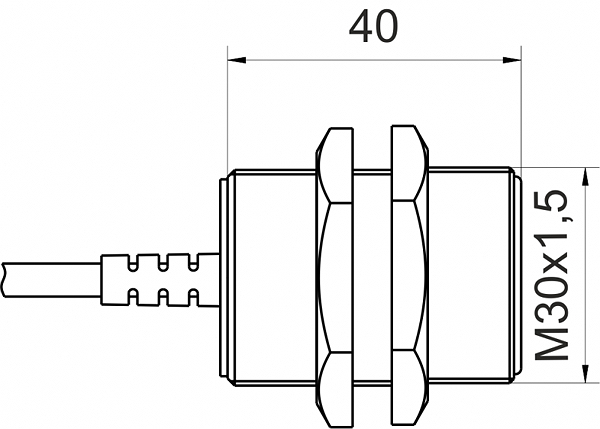

| Dimension (in mm): | fine-pitch thread M30 x 40 |
| Special features: | Output Voltage 1 ... 9 Volt |
| Operating voltage: | 11 - 35 VDC |
| Max. ripple: | ≤ 5 % |
| No load current: | ≤ 5 mA |
| Switching frequency: | 400 Hz |
| Operating temperature: | -25 ° C to 70 ° C |
| Temperature drift: | +/-5 % |
| Repeat accuracy: | ≤ 1 % |
| Linearity: | ≤ 5 % |
| Time delay: | 300 ms |
| Resolution: | 1 V / mm |
| Reverse voltage protection: | yes |
| Protection category: | IP67 |
| EMC-level: | DIN EN 60947-5-7:2004-06 |
| Housing material: | Brass, nickel plated |
| Material active face: | PCB |
| Cable length: | 2 m |
| Utilisation category: | DC 13 |
| Cable material: | PVC LIYY grau (grey) |
| Nominal operating voltage: | 24 V DC |
| Cable cross: | 3x0.34 mm² |
| internal load resistor: | > 1kOhm |
| FIT / MTTF acc. to SIEMENS 29500: | 94,94 / 1202y |
| Errors and omissions exceptet: |
