Pulsotronic 08313301410
SJ14-M30MN80-ANUI
Inductive sensor analogue
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Downloads
Technical parameters
| Name: | SJ14-M30MN80-ANUI |
| Order number: | 08313301410 |
| Switching distance: | from 7 mm to 14 mm |
| Mounting: | non shielded |
| Switch type: | analog |
| Signal Type: | Analog Current/Voltage |
| Connection: | Cable |
| Connection diagramm: | |

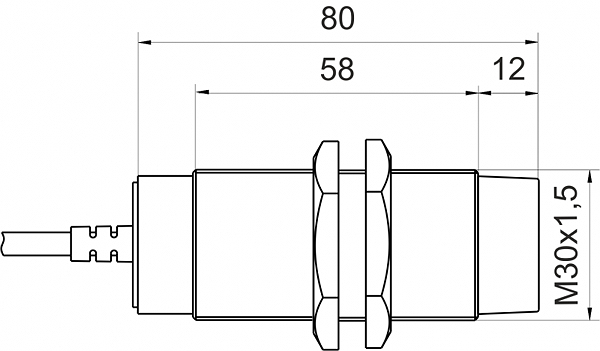

| Dimension (in mm): | fine-pitch thread M30 x 80 |
| Special features: | Output Voltage 0 ... 10 Volt Output Current 0 ... 20 mA |
| Operating voltage: | 18 - 30 VDC |
| Max. ripple: | ≤ 10 % |
| No load current: | ≤ 15 mA |
| Switching frequency: | 30 Hz |
| Temperature drift: | +/- 5 % |
| Repeat accuracy: | < 0,02 % |
| Linearity: | ≤ 10 % |
| Time delay: | 300 ms |
| Protection category: | IP67 |
| EMC-level: | DIN EN 60947-5-7:2004-06 |
| Housing material: | Brass, nickel plated |
| Material active face: | PBT |
| Cable length: | 2 m |
| Utilisation category: | DC 13 |
| Cable material: | PVC LIYY grau (grey) |
| Nominal operating voltage: | 24 V DC |
| Cable cross: | 4x0.5 mm² |
| internal load resistor: | > 1 kOhm |
| Errors and omissions exceptet: |
