Pulsotronic 08310001814
KJ0,8-M5EB27-DPS-X0429
Inductive sensor DC
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Downloads
Technical parameters
| Name: | KJ0,8-M5EB27-DPS-X0429 |
| Order number: | 08310001814 |
| Mounting: | shielded |
| Switch type: | N.O. |
| Signal Type: | DC PNP |
| Connection: | connector M8 |
| Connection diagramm: | |

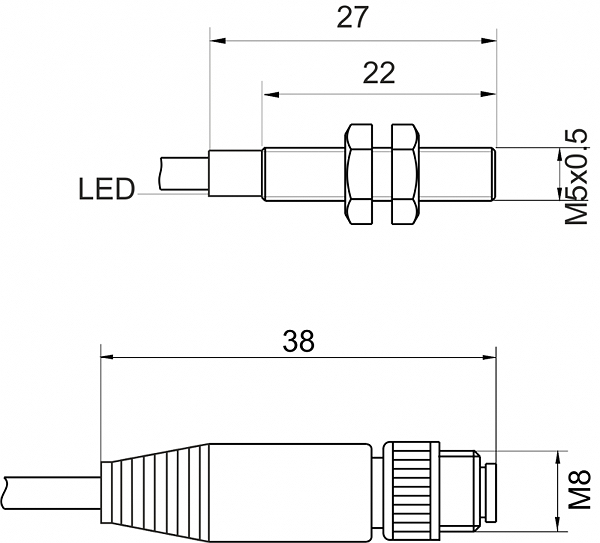

| Dimension (in mm): | fine-pitch thread M5 x 27 |
| Operating voltage: | 10 - 30 VDC |
| Max. ripple: | ≤ 10 % |
| Voltage drop: | 2 V |
| Max. load current: | 200 mA |
| No load current: | ≤ 13 mA |
| Leakage current: | ≤ 10 µA |
| Switching frequency: | 2000 Hz |
| Switching hysterese: | ≤ 15 % |
| Operating temperature: | -25 ° C to 70 ° C |
| Temperature drift: | ≤ 10 % |
| Repeat accuracy: | ≤ 5 % |
| Swiching state: | LED |
| Time delay: | 100 ms |
| Short-circuit proof: | yes |
| Overload protection: | yes |
| Reverse voltage protection: | yes |
| Protection category: | IP67 |
| EMC-level: | DIN EN 60947-5-2: 2008 |
| Housing material: | Stainless steel V2A |
| Material active face: | POM |
| Cable length: | 300 mm |
| Utilisation category: | DC13 |
| Contact material: | CuSn |
| Contact surface material: | NiAu |
| Contact holder: | TPU |
| Cable material: | PUR LIFY11Y schwarz |
| Nominal operating voltage: | 24 V DC |
| Cable cross: | 3x0.14 mm² |
| Termination: | Pigtail M8 |
| FIT / MTTF acc. to SIEMENS 29500: | 35,26 / 3238y |
| Errors and omissions exceptet: |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
